Biolight Q3 User Manual

Patient Monitor User’s manual
4-7

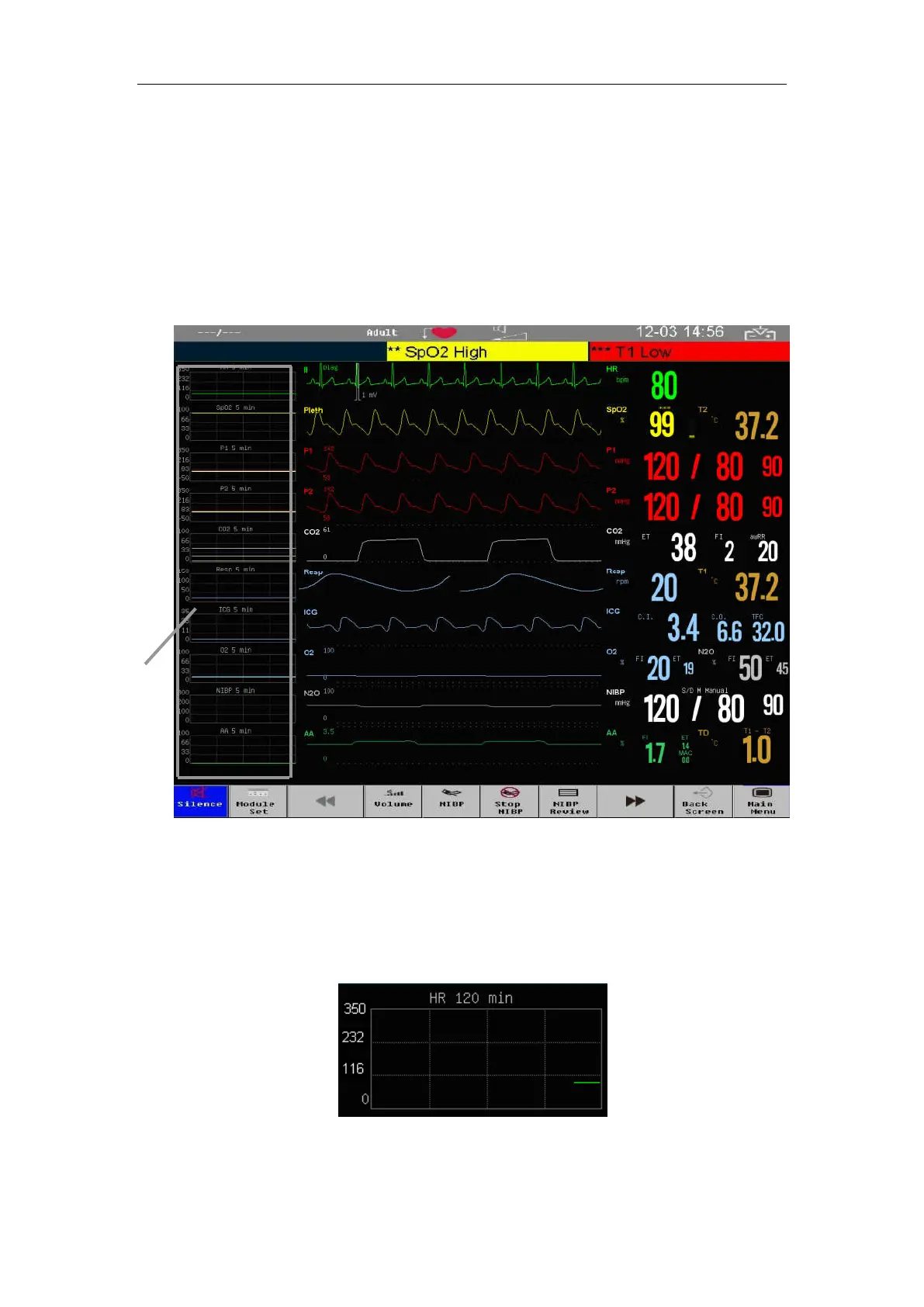

 HI RES Trend
To enter high resolution trend screen:
 Select【Main Menu】smartkey→【Screen Layout】→【HI RES
Trend】.
 Or select【Screen Layout】smartkey→【HI RES Trend】.
The HI RES Trend graph relevant to the parameters is displayed on the left
corner of the waveform, it shows the graphic trend for some time of each
parameter. Label and duration of trend display above the each trend, while
scale display on the left.
Select a HI RES Trend of parameter to enter the setting menu, and select
【Trend time】to select the trend time length of the HI RES Trend.
HI RES
Trend
