5.2 BCS-805/810 cell cables
Each BCS-805 and BCS-810 module has eight channels with eight 4 pins horizontal con-
nectors (and ground connector). Cell cables for BCS-810/805 are provided with four leads on
the cell side: P+, S+, P-, S- and on the other end, a fifth lead corresponding to the shield of
the cell cable is provided. For low current measurements this lead has to be connected to the
ground connector/hole located on the bottom of each cell channel connector in order to avoid
noise due to electromagnetic perturbations.

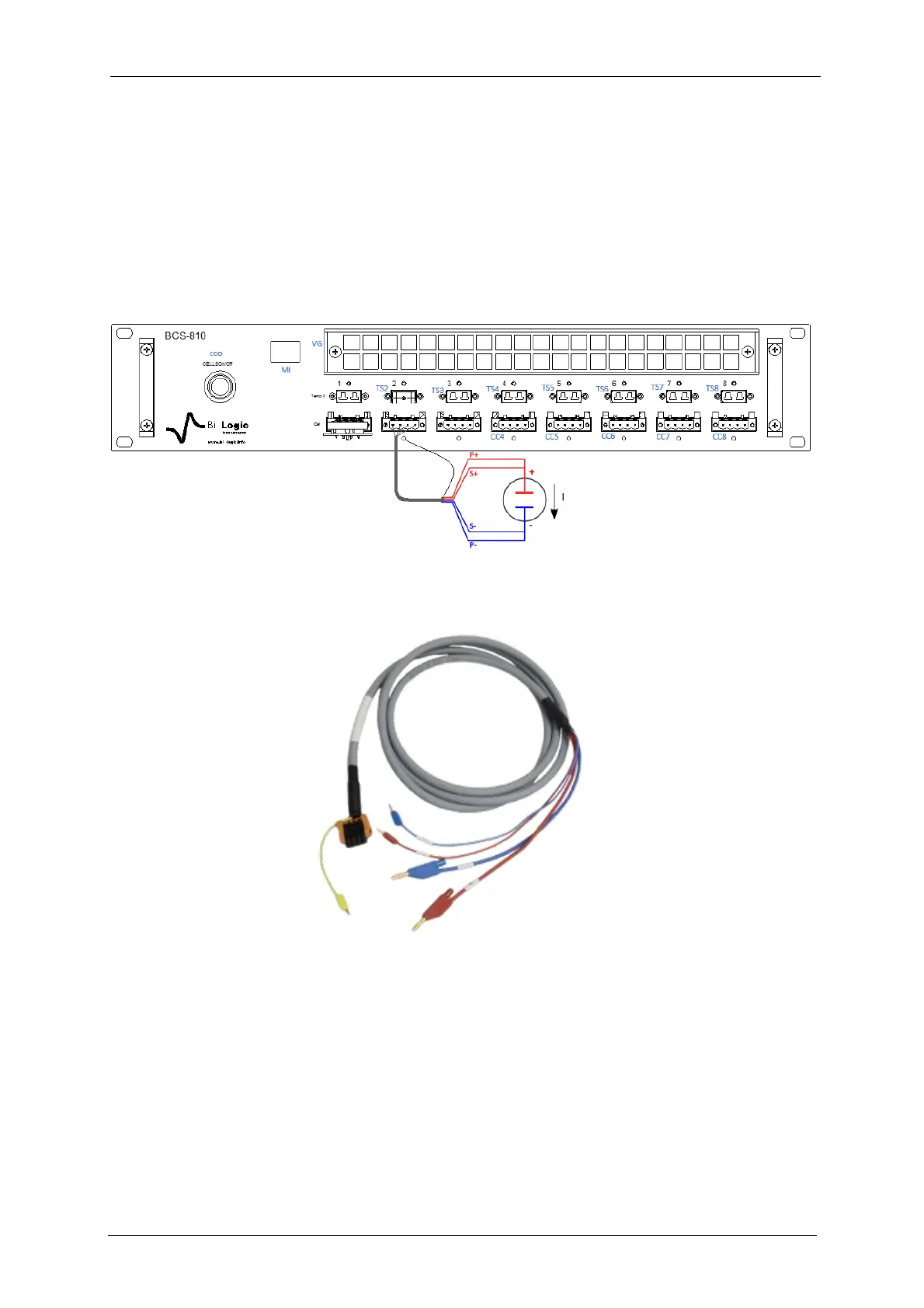

Fig. 50: BCS-810 front panel and structure of the connector.
Fig. 51: BCS-810 cell cable.
5.3 BCS-8xx battery holders
Numerous battery holders are available to connect batteries to BCS-8xx modules. For more
information, please check our website: www.biologic.net
