Bioness BITS - Warnings and Incident Reporting

15

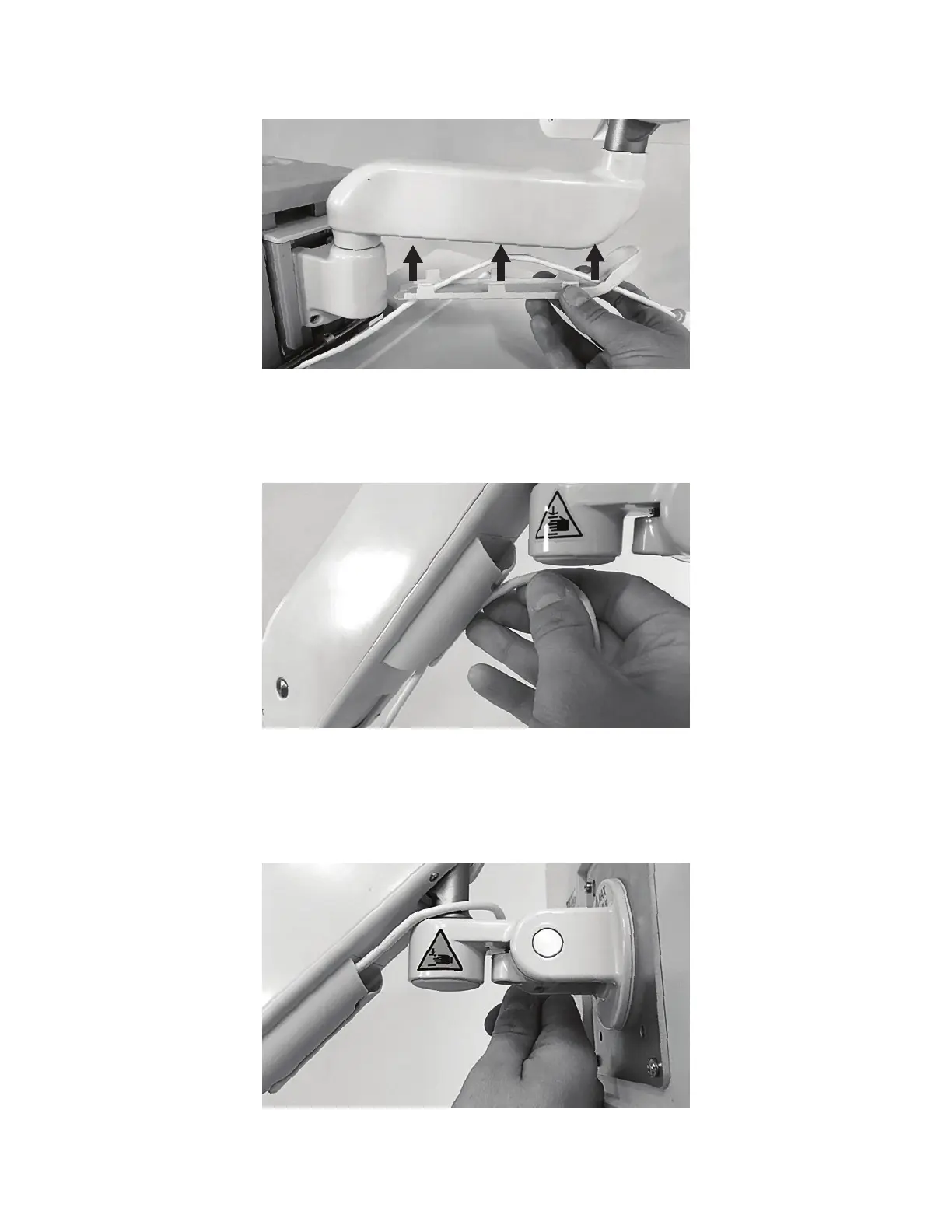

4. Thread the Power Cord through the Cable Management Cover, and reattach it to the bottom of the
Horizontal Extension Arm. See Figure 11.
Figure 11: Reattach the Cable Management Cover
5. Insert the Power Cord in the Cable Clip on the bottom of the Variable Height Arm. See Figure 12.
Figure 12: Cable Clip
6. Wrap the Power Cord around the side of the Variable Height Arm where it meets the VESA Mount.
See Figure 13.
Figure 13: Wrapping the Power Cord
