Chapter 2: Hardware installaon | 19
A520MH / B550MH

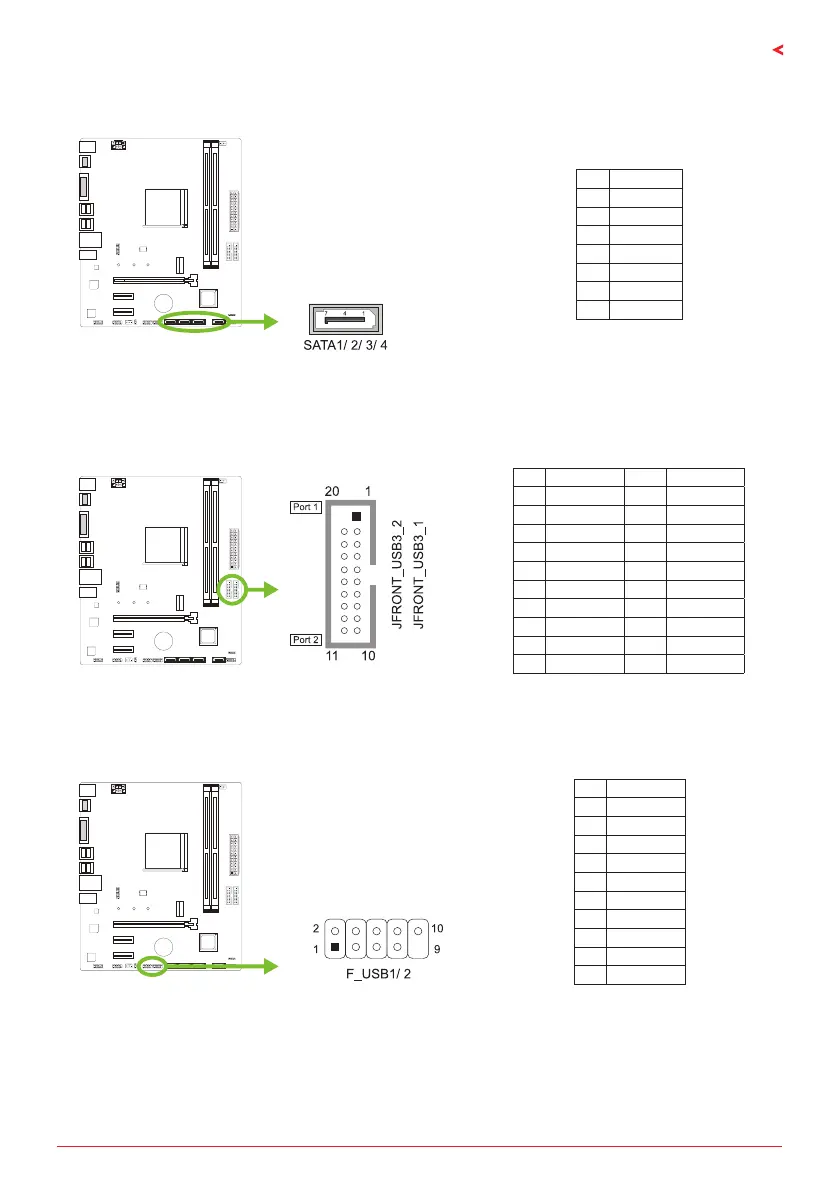

SATA1/ SATA2/ SATA3/ SATA4: Serial ATA 6.0 Gb/s Connectors
These connectors connect to SATA hard disk drives via SATA cables.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
JFRONT_USB3_1/ JFRONT_USB3_2: Header for USB 3.2 (Gen1) Ports at Front Panel
(JFRONT_USB3_2 only for B550MH)
This header allows user to add addional USB ports on the PC front panel, and also can be
connected with a wide range of external peripherals.
Pin Assignment Pin Assignment
1 VBUS0 11 D2+
2 SSRX1- 12 D2-
3 SSRX1+ 13 Ground
4 Ground 14 SSTX2+
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 Ground
7 Ground 17 SSRX2+
8 D1- 18 SSRX2-
9 D1+ 19 VBUS1
10 ID 20 Key
F_USB1/ F_USB2: Header for USB 2.0 Ports at Front Panel
This header allows user to add addional USB ports on the PC front panel, and also can be
connected with a wide range of external peripherals.
Pin Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
10 NC

Biostar A520MH Specifications

General

Processor socket	-
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen™ 3
Component for	PC
Motherboard chipset	AMD A520
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	- GB
Supported memory clock speeds	1866, 2133, 2400, 2667, 2933, 3200, 3600, 3800, 4000, 4400, 4600, 4800 MHz
Wi-Fi	No
Ethernet LAN	Yes
LAN controller	Realtek RTL8111H
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	208 mm
Width	244 mm
