Biostar A55MH User Manual

A75MH / A55MH
3
A75MH A55MH
CPU Fan Header x1 CPU Fan Header x1
System Fan Header x1 System Fan Header x1
CMOS clear Header x1 CMOS clear Header x1
USB 2.0 Connector x2 USB 2.0 Connector x2
USB 3.0 Connector x2 N/A
Power Connector (24pin) x1 Power Connector (24pin) x1
Power Connector (4pin) x1 Power Connector (4pin) x1
Consumer IR Connector x1 Consumer IR Connector x1
Printer Port Connector x1 Printer Port Connector x1
Serial port Connector x1 Serial port Connector x1
Back Panel
I/O
PS/2 Keyboard / Mouse x1
HDMI Port x1
VGA Port x1
DVI-D Port x1
LAN Port x1
USB 2.0 Port x2
USB 3.0 Port x2
Audio Jack x3
PS/2 Keyboard / Mouse x1
HDMI Port x1
VGA Port x1
DVI-D Port x1
LAN Port x1
USB 2.0 Port x4
Audio Jack x3
Board Size
200 mm(W) x 244 mm(L) 200 mm(W) x 244 mm(L)
Special
Features
RAID 0 / 1 / 10 support RAID 0 / 1 / 10 support
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS With or without notice.
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS With or without notice.

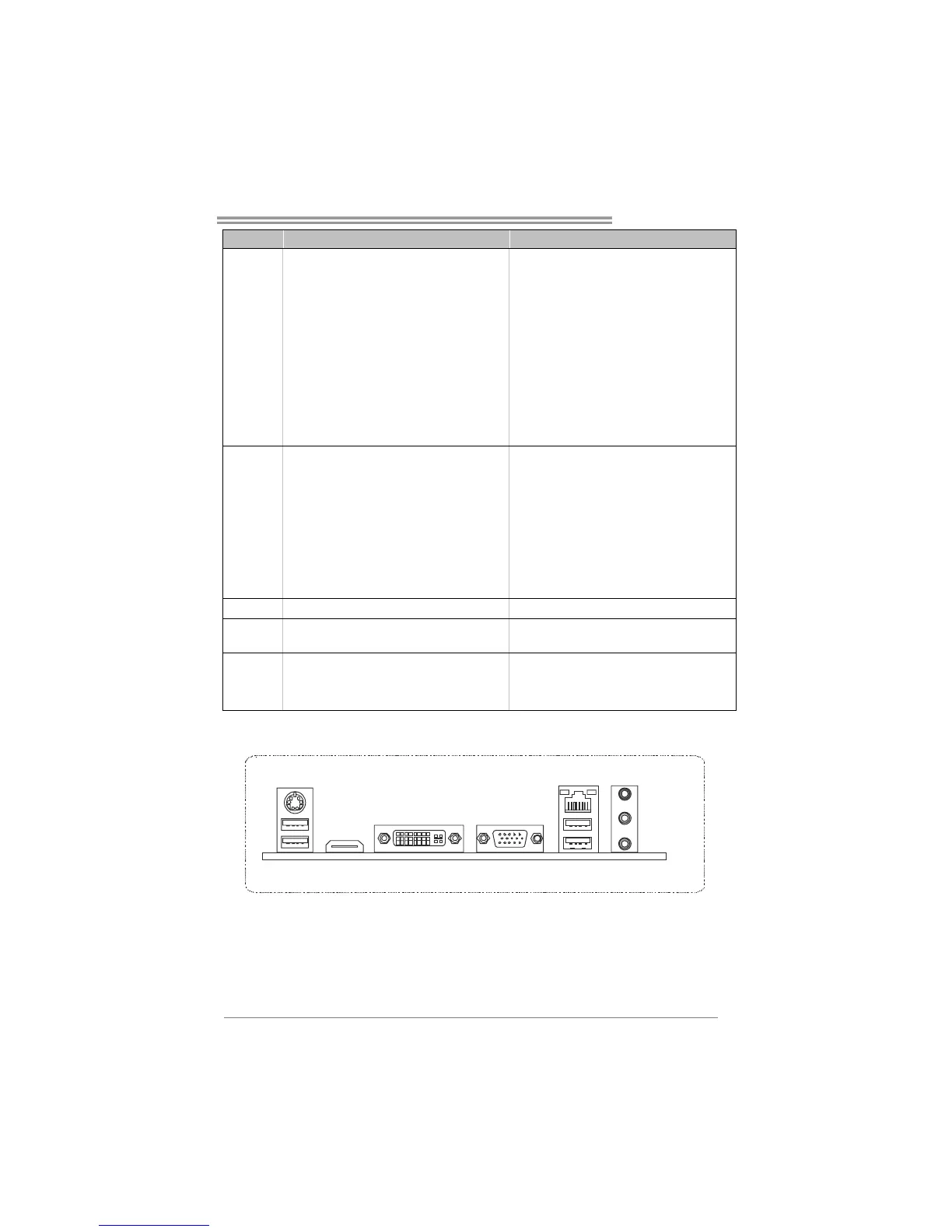

1.4 REAR PANEL CONNECTORS
USB3.0X2 ( A75MH)
LAN
HDMI
VGA
DV I-D
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
PS/2
Keyboard / Mouse
USB2.0X2
USB2.0X2 ( A55MH)
NOTE: USB3.0 ports are backward compatible with USB2.0/USB1.X devices.

Biostar A55MH Specifications

General

Memory channels	Dual-channel
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1866 MHz
Processor socket	Socket FM1
Processor manufacturer	AMD
Compatible processor series	Intel® Pentium® Dual-Core
Maximum number of SMP processors	1
Power fan connector	Yes
Number of SATA II connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	4
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A55
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows XP/Vista/7
Supported storage drive interfaces	SATA II
Parallel processing technology support	Not supported
PCI Express slots version	2.0
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	-

Weight and Dimensions

Depth	200 mm
Width	244 mm
