第二章: 硬件安装 | 9
A68MHE

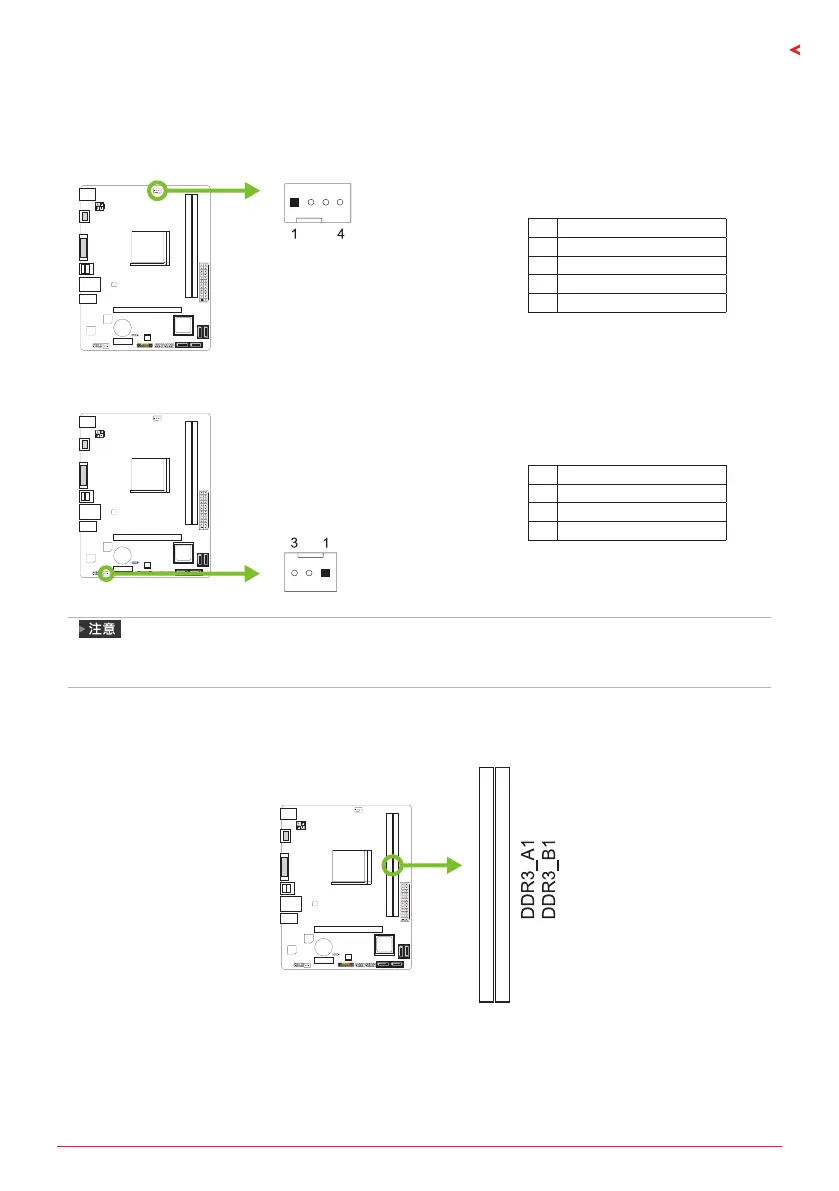

2�3 风扇接头
此风扇接头支持电脑内置的冷却风扇，风扇引线和插头可能因制造商而异。
CPU_FAN1: CPU 风扇接头
针 定义
1 接地
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
SYS_FAN1: 系统风扇接头
针 定义
1 接地
2 +12V
3 FAN RPM rate sense
»
CPU_FAN1支持4针脚和3针脚接口，SYS_FAN1支持3针脚接口。接线时请注意红线是正极需接
到第二个针脚，黑线接地需接到GND针脚。
2�4 系统内存
DDR3内存模组
