Chapter 2: Hardware installaon | 11

B250MHC

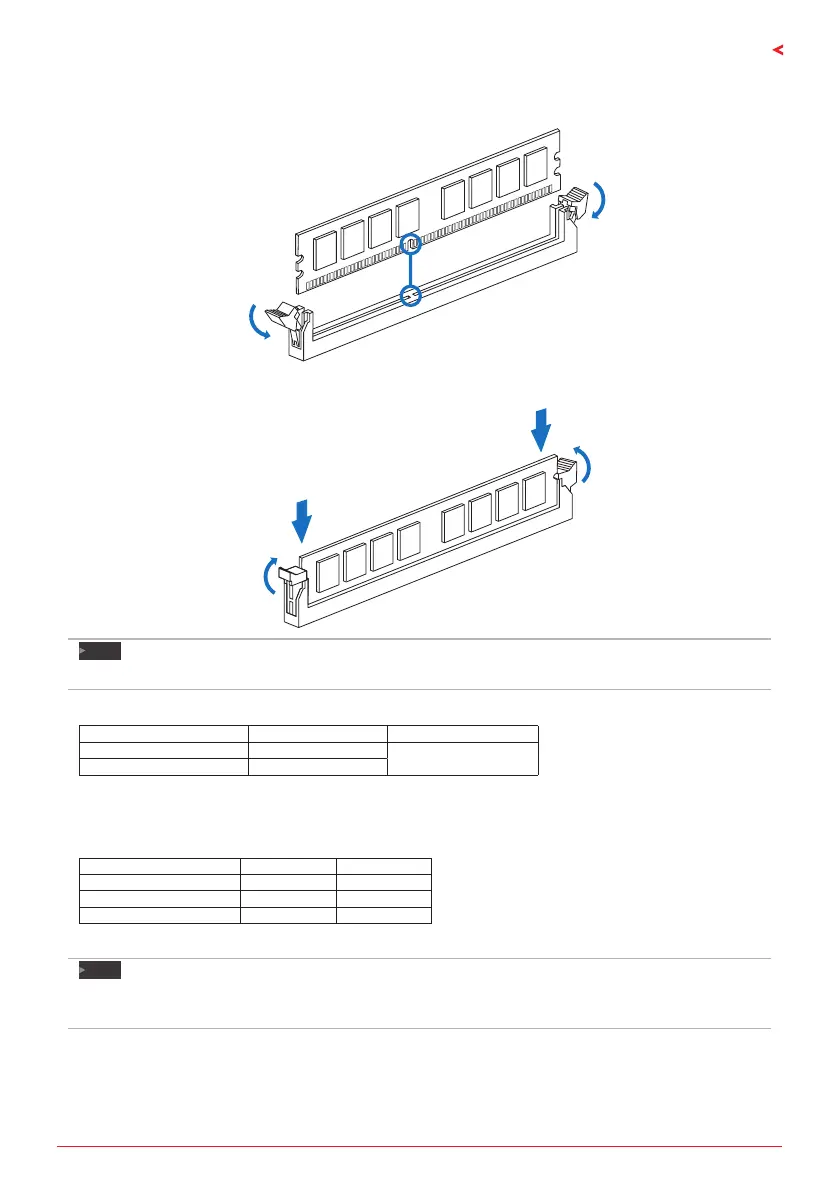

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot

such that the notch on the DIMM matches the break on the slot.

Step 2: Insert the DIMM vercally and rmly into the slot unl the retaining clips snap back in

place and the DIMM is properly seated.

Note

 IftheDIMMdoesnotgoinsmoothly,donotforceit.Pullitallthewayoutandtryagain.

Memory Capacity

DIMM Socket Locaon DDR4 Module Total Memory Size

DIMMA1 4GB/8GB/16GB

Max is 32GB.

DIMMB1 4GB/8GB/16GB

Dual Channel Memory Installaon

Please refer to the following requirements to acvate Dual Channel funcon:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DIMMA1 DIMMB1

Disabled O X

Disabled X O

Enabled O O

(O means memory installed, X means memory not installed.)

Note

 Wheninstallingmorethanonememorymodule,werecommendtousethesamebrandand

capacitymemoryonthismotherboard.
