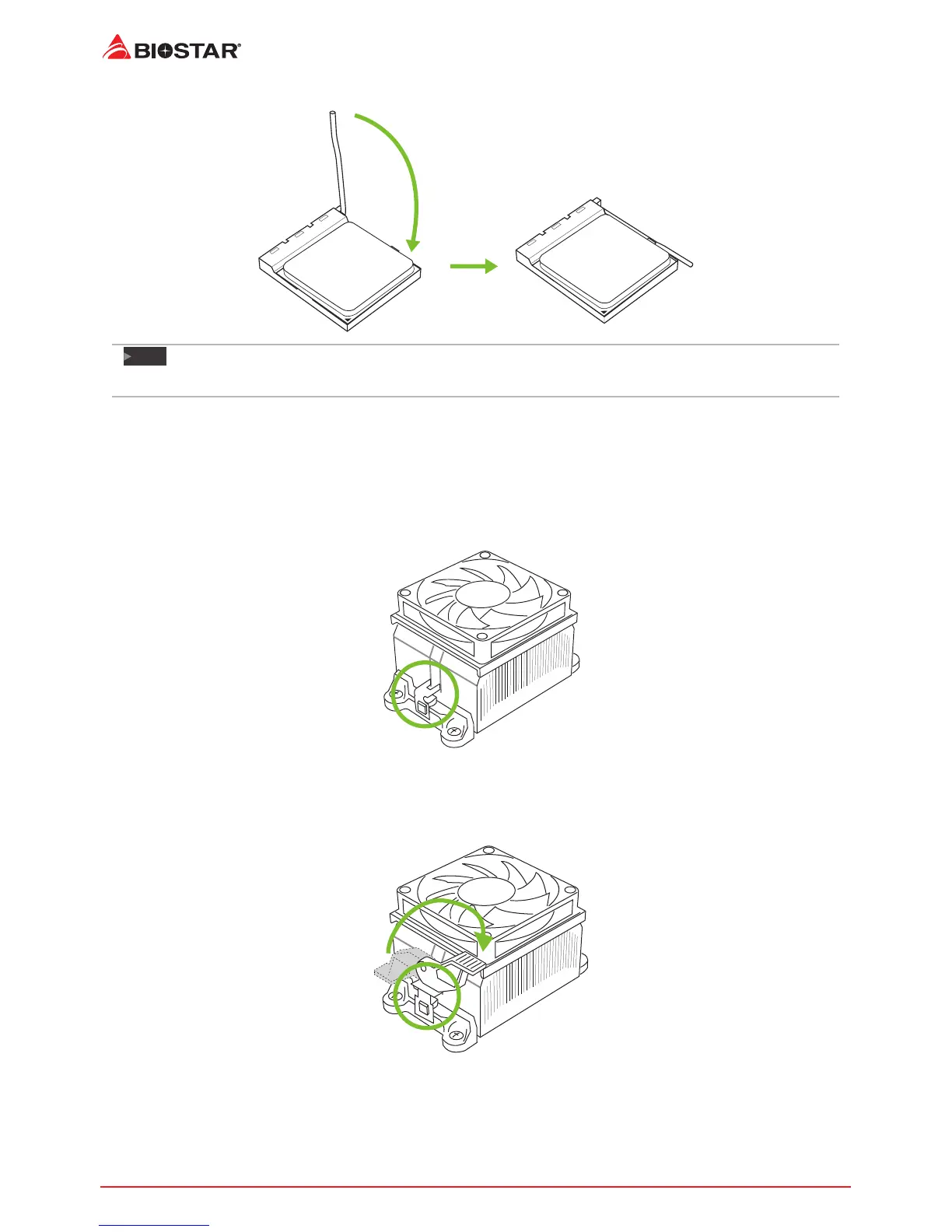

8 | Chapter 2: Hardware installaon

Step 4: Hold the CPU down rmly, and then close the lever to locked the posion

Note

 PleaseturnothePowerSupplybeforeremovetheCPUsocket.

2.2 Install a Heatsink

<TypeA>

Step 1: Place the heatsink and fan assembly onto the retenon frame. Match the heatsink clip

with the socket mounng-lug. Hook the spring clip to the mounng-lug.

Step 2: On the other side, push the retenon clip straight down to lock into the plasc lug on

the retenon frame, and then press down the locker unl it stops.
