Biostar B650MP-E PRO User Manual

Chapter 2: Hardware installaon | 23
B650MP-E PRO

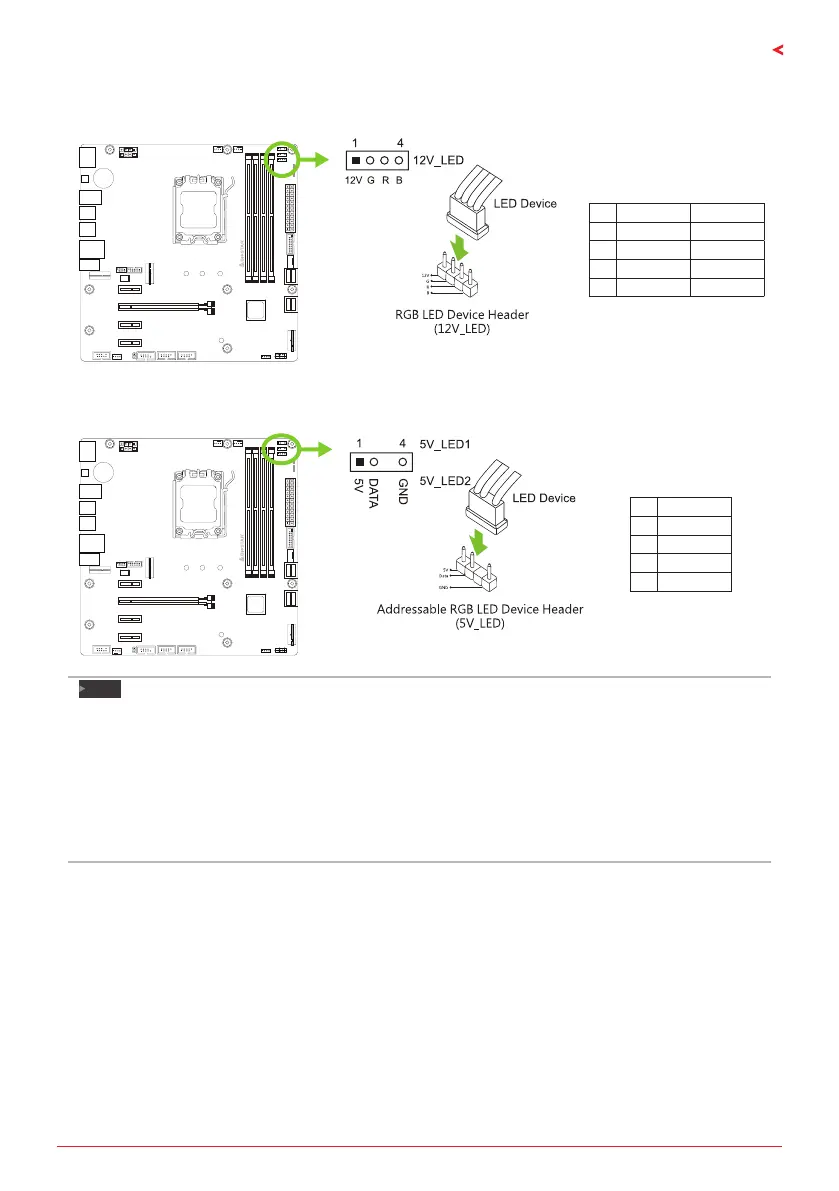

12V_LED: RGB LED Device (5050 SMD) Header
This header providers 12V power and RGB control pins for RGB LED Device (5050 SMD).
Pin Cable Color Assignment
1 12V (Black) VCC12
2 G (Green) LED_GREEN
3 R (Red) LED_RED
4 B (Blue) LED_BLUE
5V_LED1/ 5V_LED2: Addressable RGB LED Device (WS2818B) Header
This header providers 5V power and Data control pins for ARGB LED Device (WS2818B).
Pin Assignment
1 VCC5
2 Data
3 N/A
4 GND
Note
»
»
Ensure proper pin connecng to your LED device, wrong connecon may damage your LED device or
motherboard.
»
»
The 12V_LED connector supports to 5050 RGB LED strips with the maximum power rang of 3A
(12V).
»
»
The 5V_LED connector supports up to 300 LEDs WS2818B individually Addressable RGB LED strips
with the maximum power rang of 3A (5V).
»
»
Please use the Vivid LED DJ soware to control the LEDs. For detailed soware seng informaon,
refer to chapter 3.3 .

Biostar B650MP-E PRO Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7 7th Gen
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Supported storage drive interfaces	M.2, NVMe, SATA
Parallel processing technology support	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC897
Cooling type	Passive
Component for	PC
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Cables included	SATA

Weight and Dimensions

Width	244 mm
