8

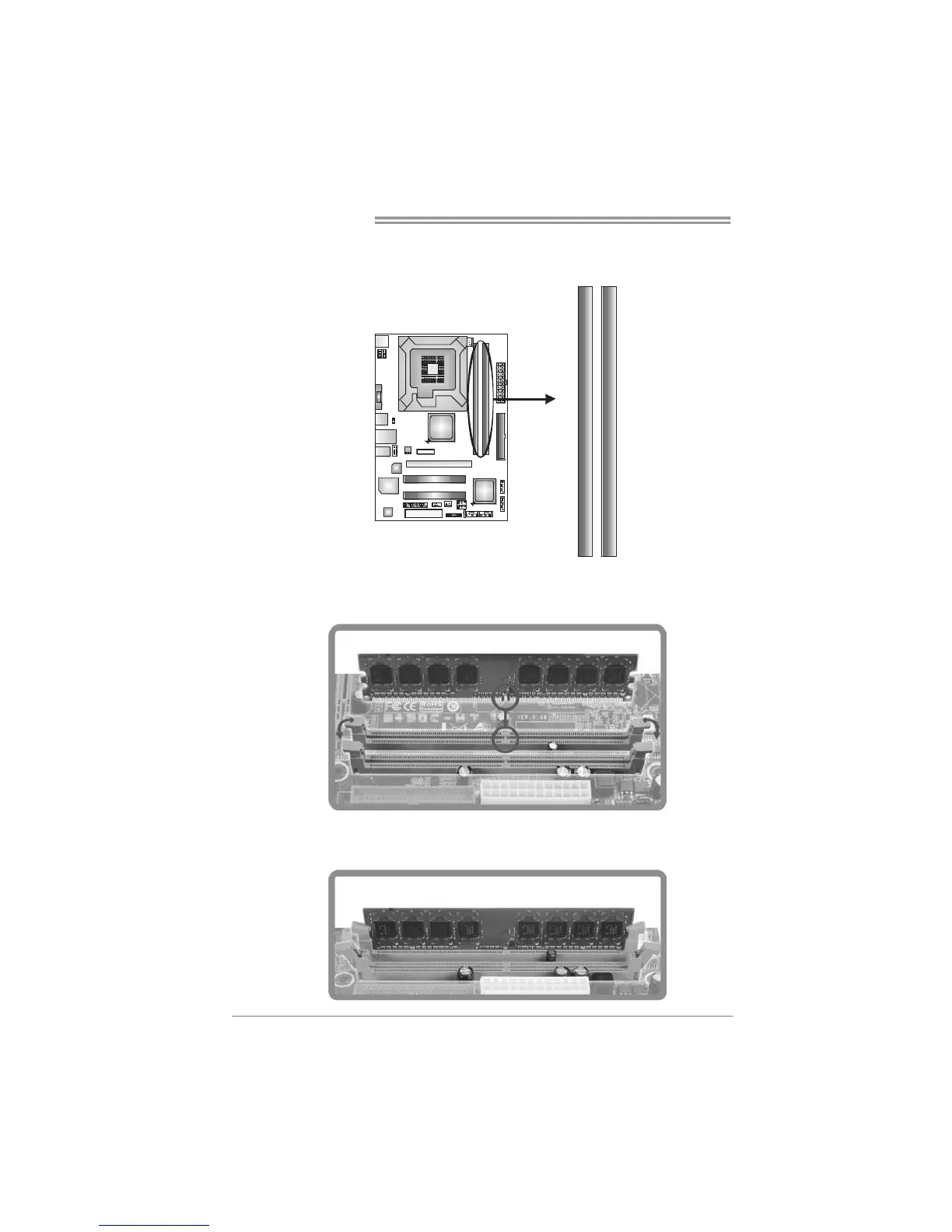

2.3 INSTALLING SYSTEM MEMORY
A. DDR2 module
DDR2_B 1 DDR2_A 1
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.

Biostar G31-M7 Specifications

General

Form Factor	Micro ATX
CPU Socket	LGA 775
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	4 GB
Storage Interface	4 x SATA 3Gb/s, 1 x IDE
Integrated Graphics	Intel GMA 3100
Audio	Realtek ALC662 6-Channel HD Audio
Video Outputs	1 x VGA
Chipset	Intel G31
CPU Support	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Expansion Slots	1 x PCIe x16, 2 x PCI
LAN	Realtek RTL8102EL 10/100 Mbps
USB Ports	8 x USB 2.0 (4 on back panel, 4 via headers)
Rear Panel I/O Ports	1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x VGA, 4 x USB 2.0, 1 x RJ45 LAN, 3 x Audio Jacks
