CHAPTER 2: HARDWARE INSTALLATION
2.1 I
NSTALLING CENTRAL PROCESSING UNIT (CPU)
Special Notice:
Remove Pin Cap before installation, and make good preservation
for future use. When the CPU is removed, cover the Pin Cap on the
empty socket to ensure pin legs won’t be damaged.
Pin-Cap

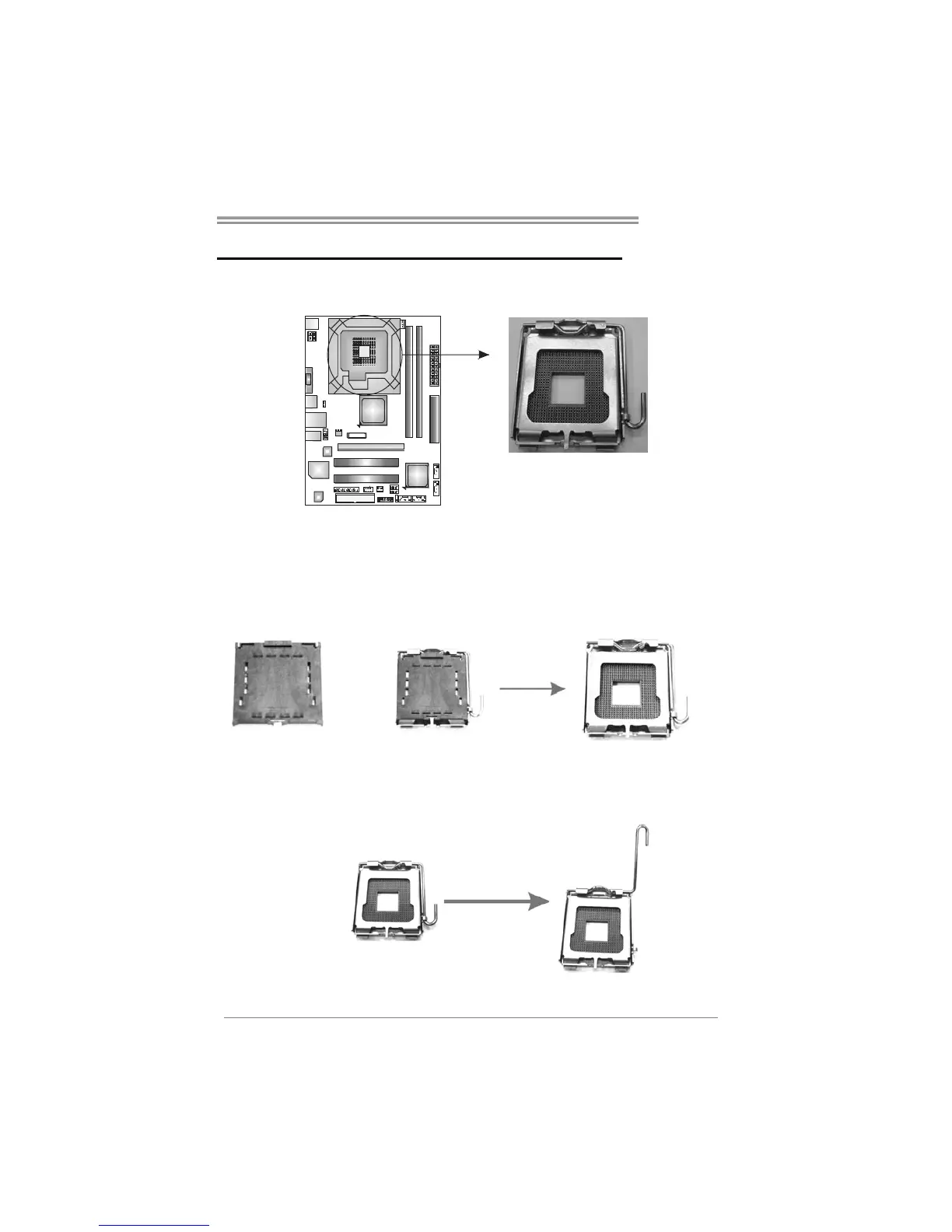

Step 1: Pull the socket locking lever out from the socket and then raise
the lever up to a 90-degree angle.

Biostar G31-M7 Specifications

General

Form Factor	Micro ATX
CPU Socket	LGA 775
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	4 GB
Storage Interface	4 x SATA 3Gb/s, 1 x IDE
Integrated Graphics	Intel GMA 3100
Audio	Realtek ALC662 6-Channel HD Audio
Video Outputs	1 x VGA
Chipset	Intel G31
CPU Support	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Expansion Slots	1 x PCIe x16, 2 x PCI
LAN	Realtek RTL8102EL 10/100 Mbps
USB Ports	8 x USB 2.0 (4 on back panel, 4 via headers)
Rear Panel I/O Ports	1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x VGA, 4 x USB 2.0, 1 x RJ45 LAN, 3 x Audio Jacks
