Biostar G31-M7 User Manual

G31-M7 OC
17

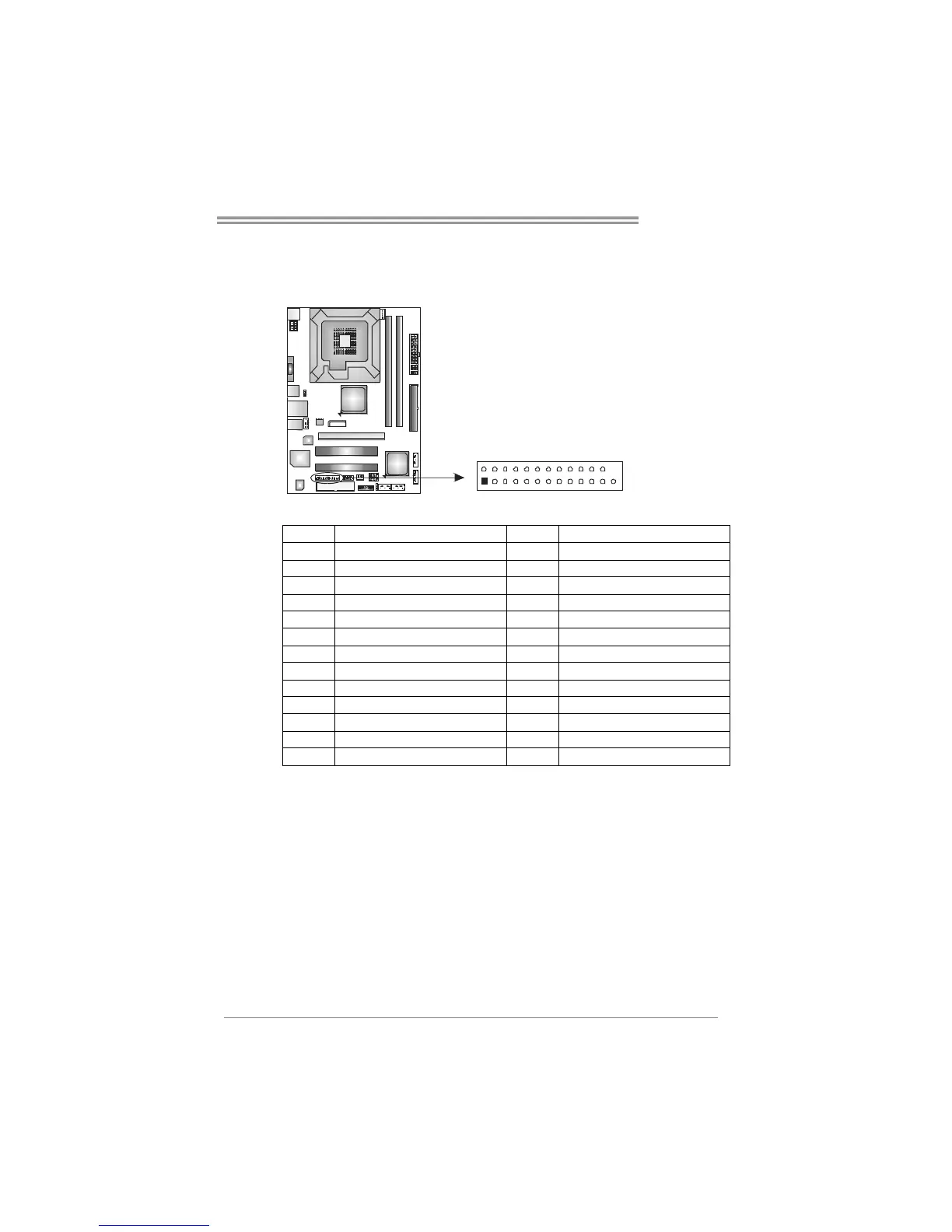

JPRNT1: Printer Port Connector
This header allows you to connector printer on the PC.
1
2
25
Pin Assignment Pin Assignment
1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground
4 -Error 17 Data 7
5 Data 1 18 Ground
6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy
9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground
12 Ground 25 SCLT
13 Data 5 26 Key

Biostar G31-M7 Specifications

General

Form Factor	Micro ATX
CPU Socket	LGA 775
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	4 GB
Storage Interface	4 x SATA 3Gb/s, 1 x IDE
Integrated Graphics	Intel GMA 3100
Audio	Realtek ALC662 6-Channel HD Audio
Video Outputs	1 x VGA
Chipset	Intel G31
CPU Support	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Expansion Slots	1 x PCIe x16, 2 x PCI
LAN	Realtek RTL8102EL 10/100 Mbps
USB Ports	8 x USB 2.0 (4 on back panel, 4 via headers)
Rear Panel I/O Ports	1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x VGA, 4 x USB 2.0, 1 x RJ45 LAN, 3 x Audio Jacks
