Serial Port Connector x1 Connects to RS-232 Port
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Rear Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
HDMI Port (H61MHV) x1
VGA Port x1
LAN port x1
USB2.0 Port x4
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connects to HDMI Display
Connect to D-SUB monitor
Connect to RJ-45 ethernet cable
Connect to USB2.0 devices
Provide Audio-In/Out and Mic. Connection
Board Size
170 (W) x 226 (L) mm
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove support
for any OS with or without notice

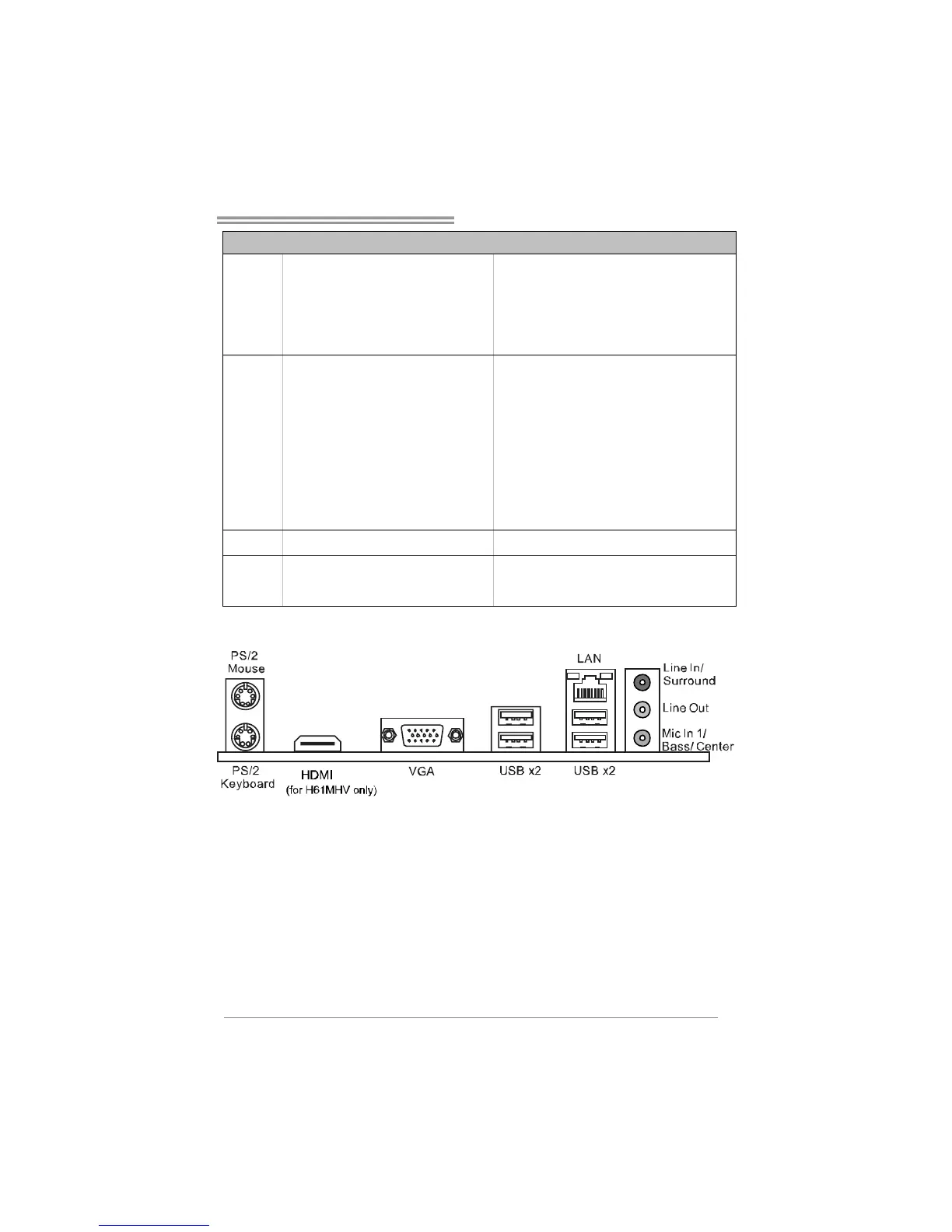

1.4 REAR PANEL CONNECTORS
NOTE:
z HDMI/ VGA Outp ut require an Intel Core family processor with Intel Graphics Technology.
z Maximum resolution:
VGA: 2048 x 1536 @75Hz
HDMI: 1920 x 1200 @60Hz (for H61MHV only)
z The H61MHV supports dual video outputs, but the HDMI is not supported under DOS and
BIOS setup.
