Biostar MCP6P-M2 User Manual

MCP6P-M2
7
CHAPTER 2: HARDWARE INSTALLATION

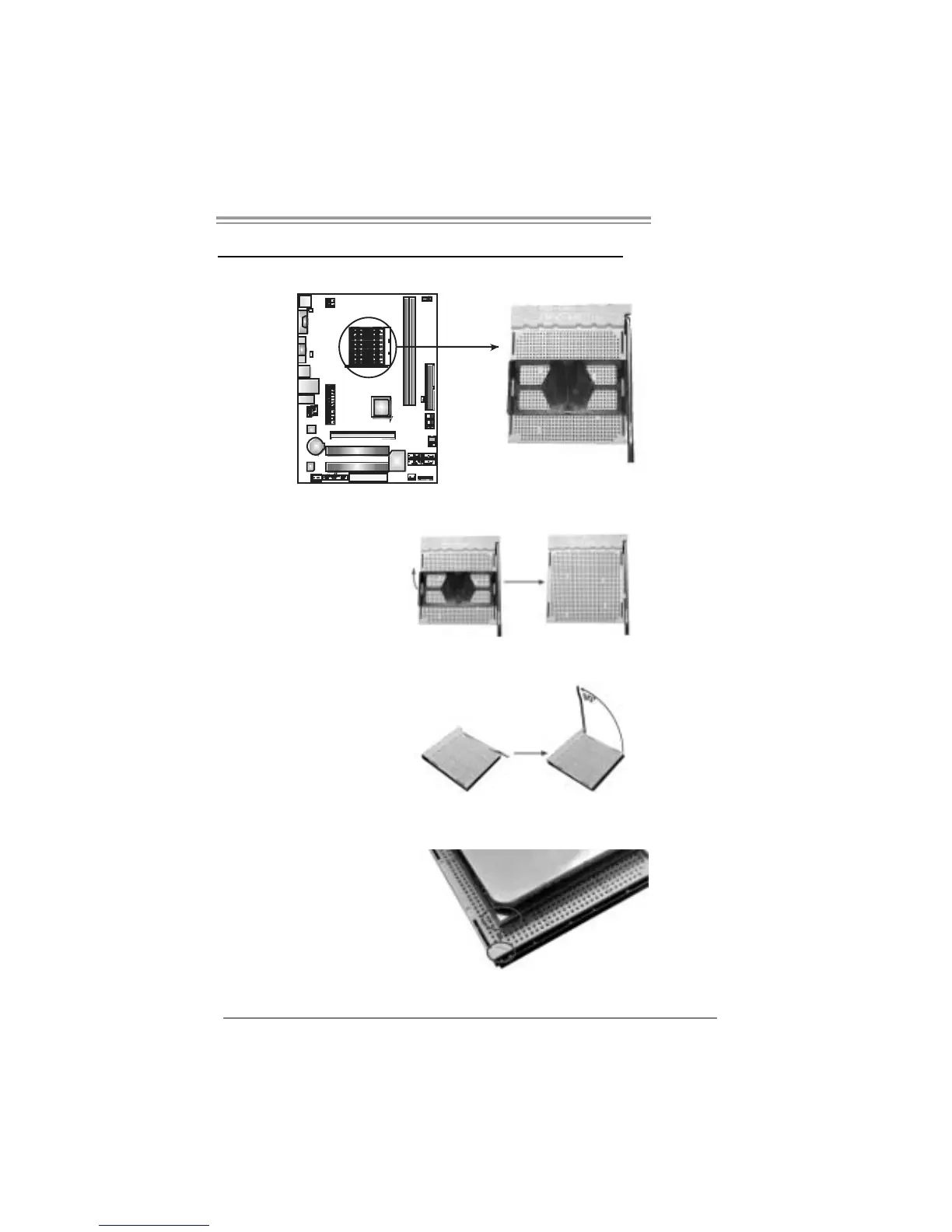

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)
Step 1: Remove the socket protection cap.
Step 2: Pull the lever toward direction A from the socket and then raise the
lever up to a 90-degree angle.
Step 3: Look for the white triangle on socket, and the gold triangle on
CPU should point towards this white triangle. The CPU will fit only
in the correct orientation.

Biostar MCP6P-M2 Specifications

General

Form Factor	Micro ATX
CPU Socket	AM2
Memory Type	DDR2
Maximum Memory	4GB
Storage Interface	SATA, IDE
SATA	4 x SATA 3Gb/s
IDE	1 x IDE
Audio Chipset	Realtek ALC662
Audio Channels	6-Channel
LAN Chipset	Realtek RTL8201CL
Max. LAN Speed	10/100Mbps
PS/2	1 x PS/2 Keyboard, 1 x PS/2 Mouse
CPU Type	AMD Athlon 64 X2 / Athlon 64 / Sempron
Memory Slots	2
Expansion Slots	1 x PCI-E x16 1 x PCI-E x1 2 x PCI
USB Ports	4 x USB 2.0
