TA75M+

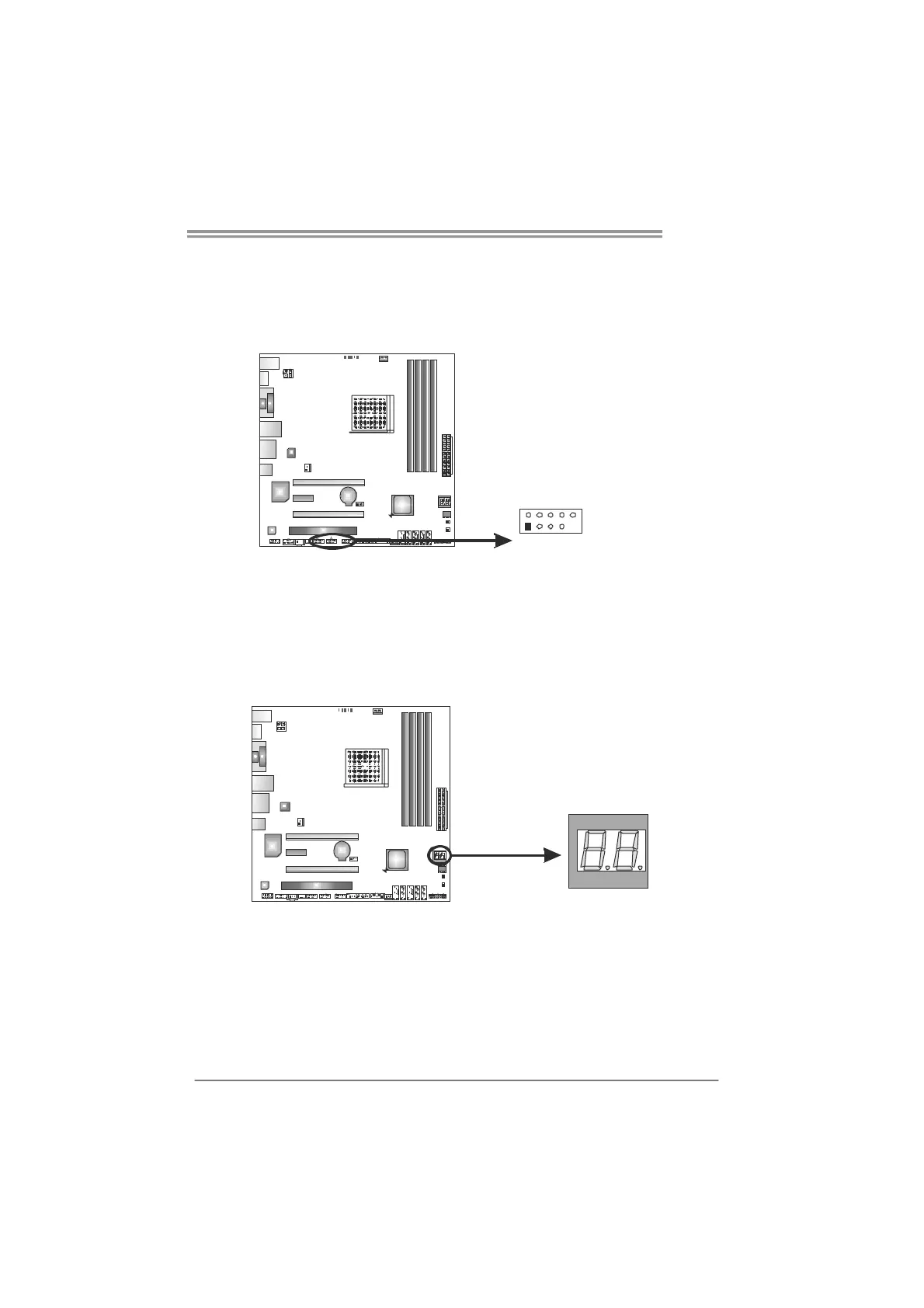

F_USB1/F_USB2/F_USB3: Headers for USB 2.0 Ports at Front Panel

These headers allow user to connect additional USB cable on the PC front panel,

and also can be connected with internal USB devices, like USB card reader.

Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

F_ USB3

F_USB2

USB1 F_

10 NC

BIOS POST Code/CPU Temperature Indicator

This indicator will show POST code while booting. After the booting sequence,

it will show current CPU temperature through hexadecimal figure. Please

refer to Chapter 7.4 for all the BIOS POST codes, and Chapter 7.5 for

conversion of hexadecimal and decimal system.

Biostar TA75M+ User Manual
