Motherboard Manual
18

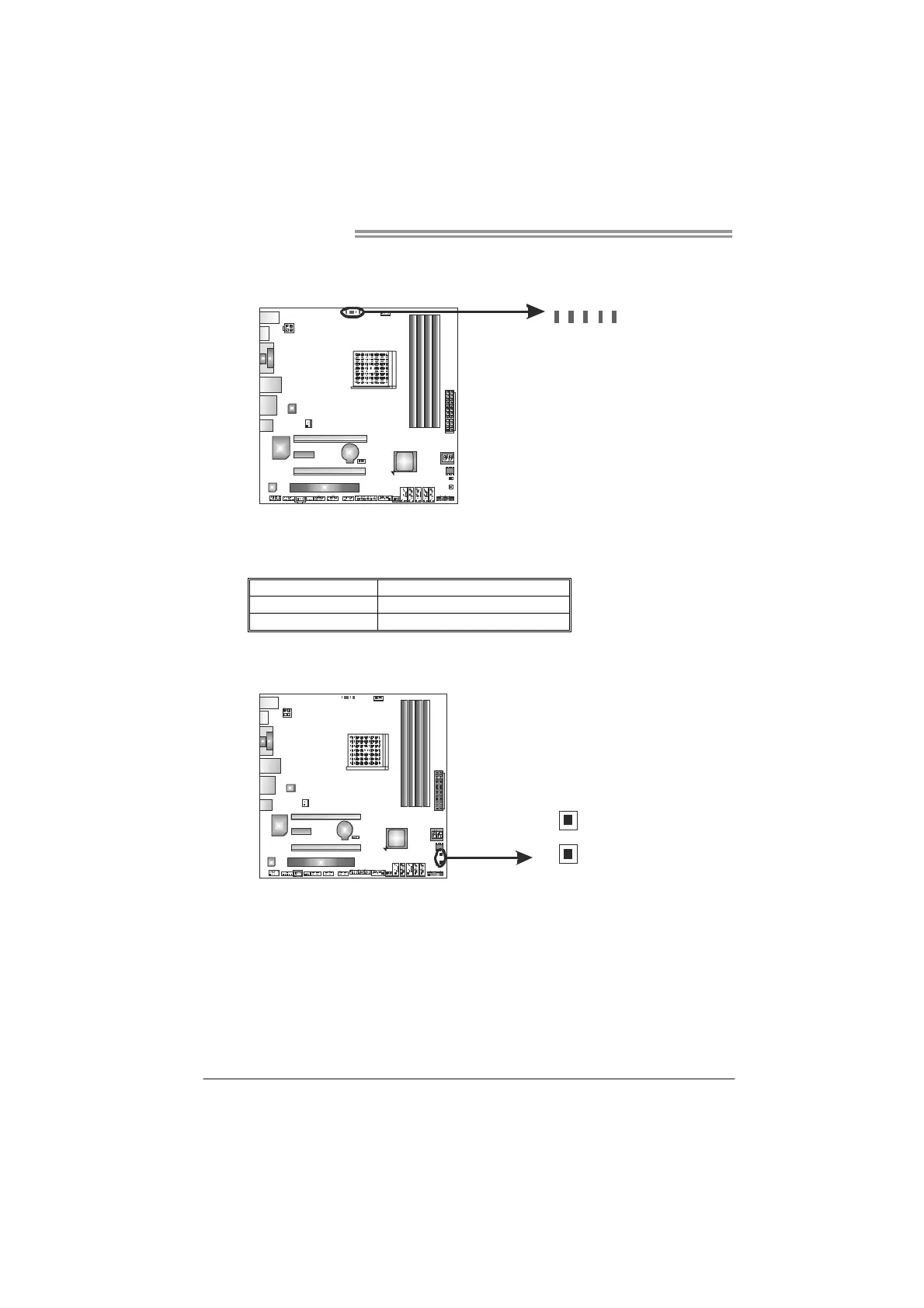

On-Board LED Indicators
There are 5 LED indicators showing system status.
NB_PH 1_D1
PH 1_D1
PH 2_D2
PH 3_D3
PH 4_D4
NB_PH1_D1: NB Power Status Indicators
PH1_D1/PH2_D2/PH3_D3/PH4_D4: CPU Power Status Indicators
Please refer to the tables below for specific messages:
LED Phase Indicator
ON Phase Active
OFF Phase Disable
On-Board Buttons
There are 2 on-board buttons.
SW_PWR1
SW_RST1
SW_RST1: Reset button.
SW_PWR1: Power Switch button.
