TA790GXBE/TA785 A2+
17

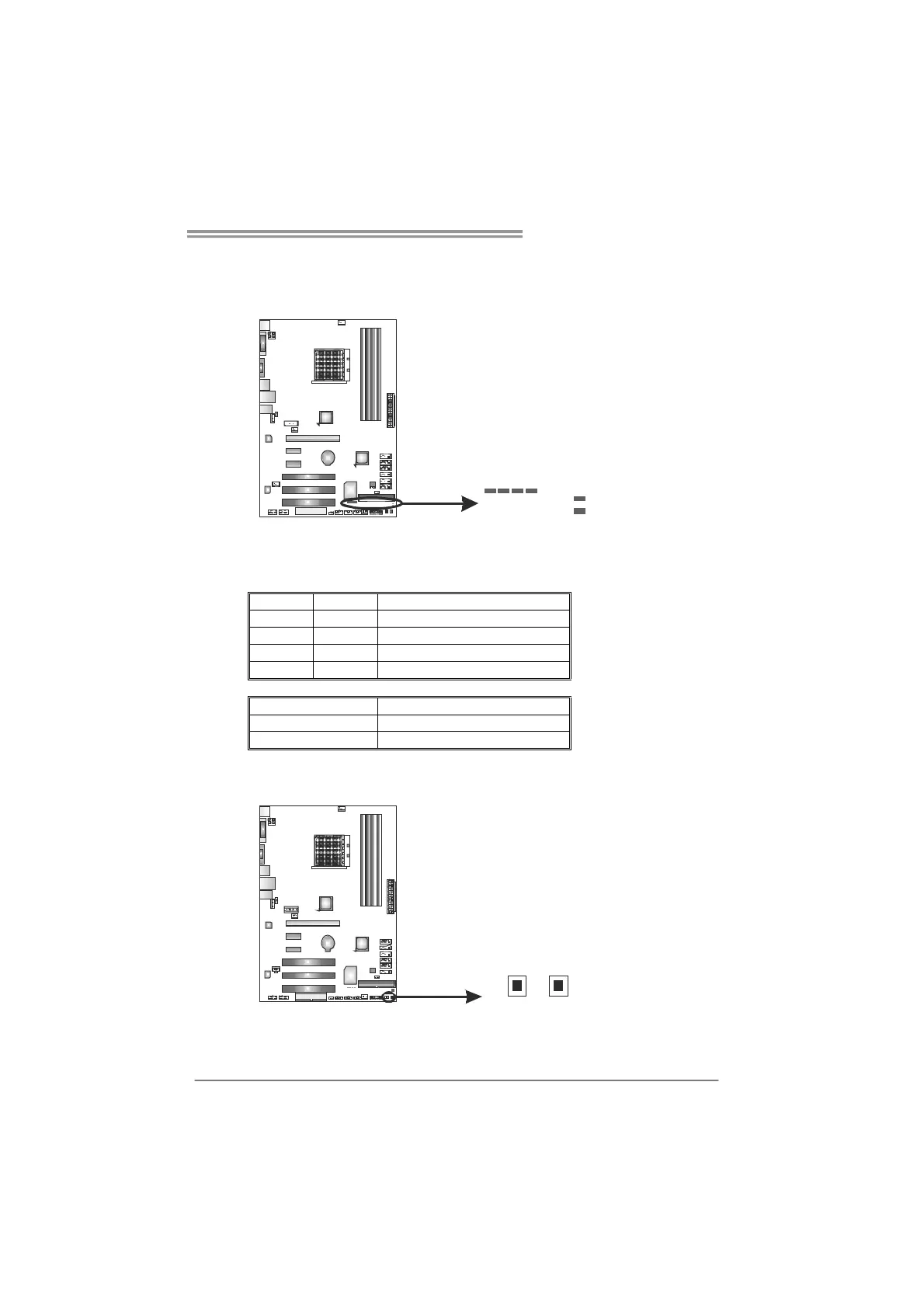

On-Board LED Indicators
There are 6 LED indicators showing system status.
LED_D1
LED_D2
PH2
PH1
PH4
PH3
LED_D1 & LED_D2: Debug Indicators
PH1 ~ PH4: Power Status Indicators
Please refer to the tables below for specific messages:
LED_D1 LED_D2 Message
ON ON Normal
ON OFF Memory Error
OFF ON VGA Error
OFF OFF Abnormal: CPU / Chipset error.
PH1~PH4 Phase Indicator
ON Phase Active
OFF Phase Disable
On-Board Buttons
There are 2 on-board buttons.
SW_RST1
SW_PWR1
SW_RST1: Reset button.
SW_PWR1: Power Switch button.
