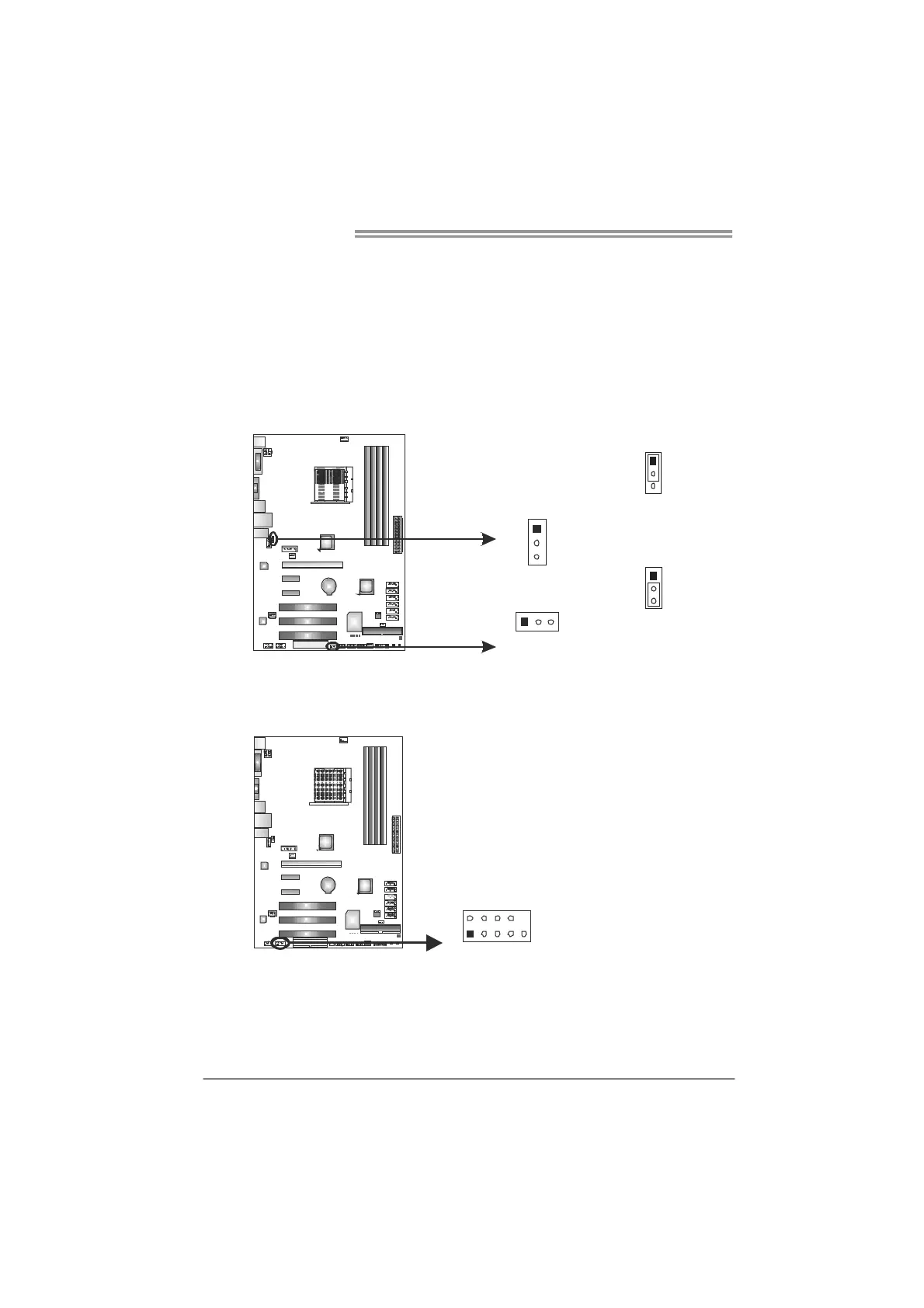

JUSBV1/JUSBV2: Power Source Headers for USB Ports
Pin 1-2 Close:
JUSBV1: +5V for USB ports at USB1/RJ45USB1.
JUSBV2: +5V for USB ports at front panel (F_USB1~F_USB3).
Pin 2-3 Close:
JUSBV1: +5V STB for USB ports at USB1/ RJ45USB1.
JUSBV2: +5V STB for USB ports at front panel (F_USB1~F_USB3).
1
3
Pin 1-2 close
1
3
JUSBV1
13
JUSBV2
1
3
Pin 2-3 close
J_COM1: Serial port Connector
The motherboard has a Serial Port Connector for connecting RS-232 Port.
Pin Assignment
1 Carrier detect
2 Received data
3 Transmitted data
4 Data terminal ready
5 Signal ground
6 Data set ready
7 Request to send
8 Clear to send
9 Ring indicator
19
210
10 NC
