Biostar TA970XE Setup Manual

Motherboard Manual
10

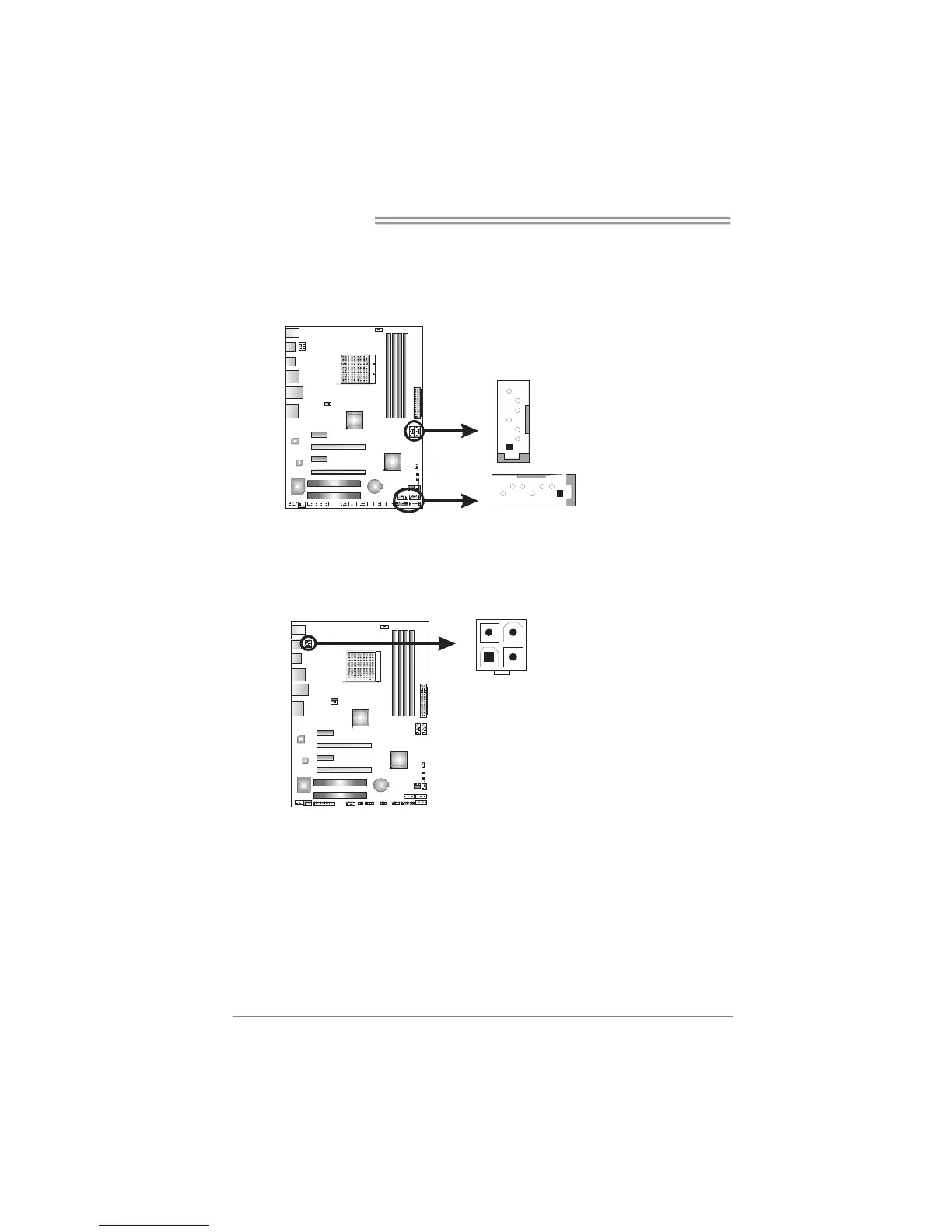

2.4 CONNECTORS AND SLOTS
SATA1~SATA5: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 5 channels SATA interface,
it satisfies the SATA 3.0 spec and with transfer rate of 6.0Gb/s.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
14
7
SATA1 SATA3
SATA2
1
4
7
S ATA 5 S ATA 4
7 Ground
ATXPWR2: ATX Power Source Connector
This connector provides +12V to CPU power circuit.
Pin Assignment
1 +12V
2 +12V
3 +12V
4 +12V
5 Ground
6 Ground
7 Ground
4
12
3
8 Ground
