Biostar TA970XE Setup Manual

TA970XE
3
SPEC
IEEE 1394 Connector x1 Connects to IEEE 1394 device
Printer Port Connector x1 Each connector supports 1 Printer port
Serial Port Connector x1 Connects to RS-232 Port
Power Connector (24-Pin) x1 Connects to Power supply
Power Connector (4-Pin) x1 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard / Mouse x1
Optical +coaxial S/PDIF Out x1
1394 Port x1
eSATA Port x1
LAN port x1
USB2.0 Port x6
USB3.0 Port x2
Audio Jack x6
Connects to PS/2 Keyboard/Mouse
Provides digital audio out function
Connects to IEEE 1394 device
Connect to SATA devices
Connect to RJ-45 ethernet cable
Connect to USB2.0 devices
Connect to USB3.0 devices (by Asmedia ASM1042)
and USB2.0/USB1.X devices (by SB950)
Provide Audio-In/Out and Mic. connection
Board Size
305 mm (W) x 225 mm (L) ATX
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove support
for any OS With or without notice.

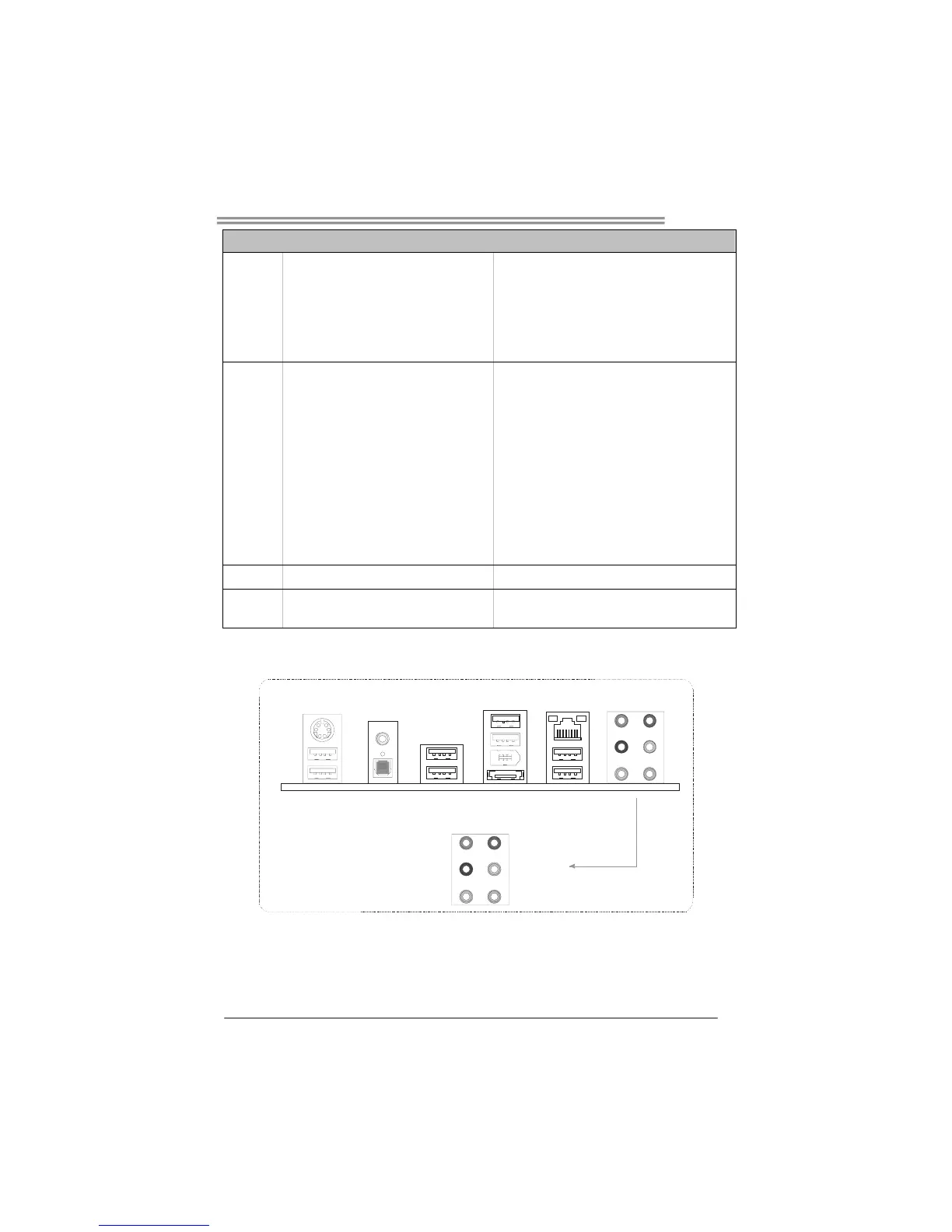

1.4 REAR PANEL CONNECTORS
Line In
Line Out
Mic In
Center
Rear
Side
eSATA
USB3.0X2
LAN
USB2.0X2
IEEE 1394
USB2.0X2
Optical +coaxial
S/PDIF Out
PS/2
Port
USB2.0X2
