Motherboard Manual
18

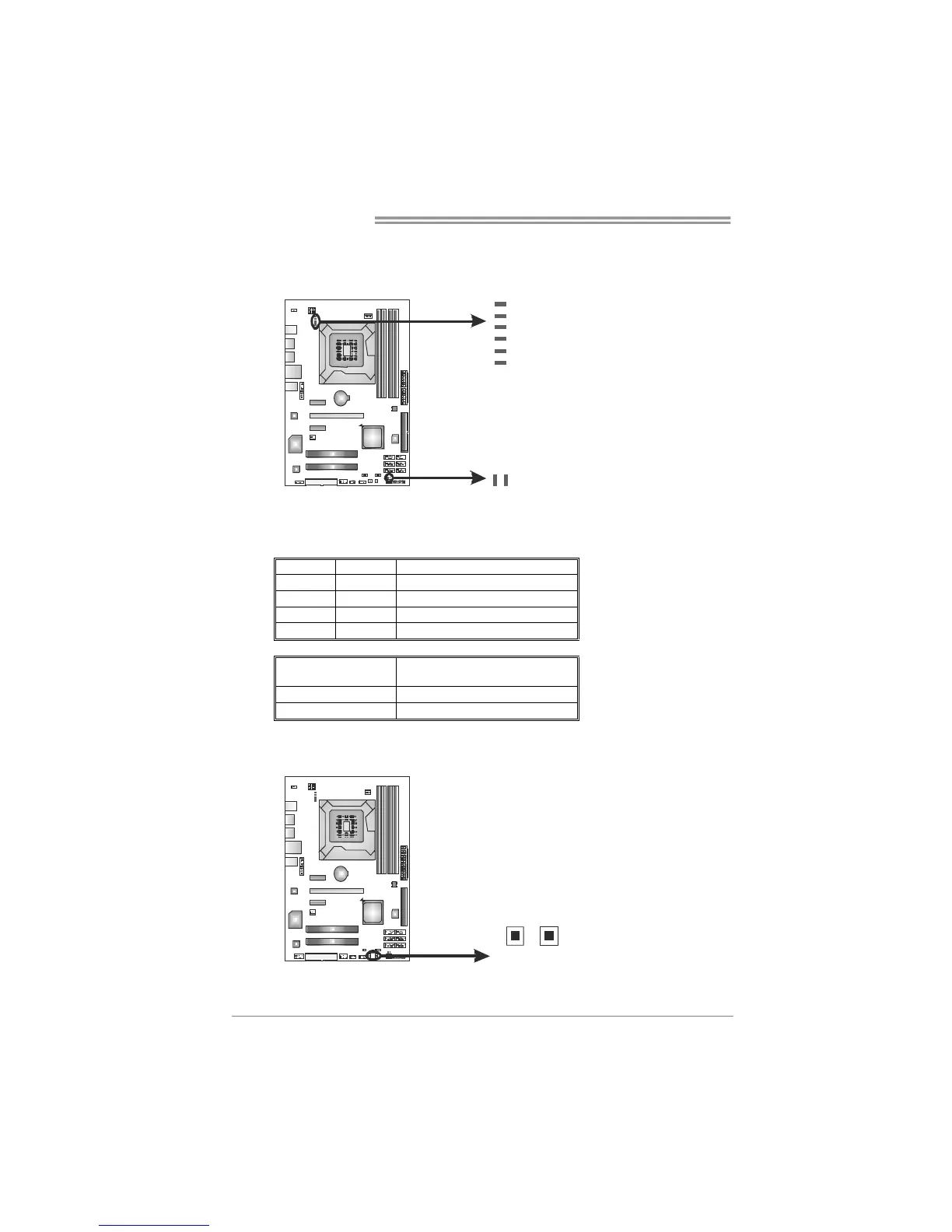

On-Board LED Indicators
There are 8 LED indicators on the motherboard showing system status.
LED_D1
LED_D2
PH3_D3
PH4_D4
PH1_D1
PH2_D2
VTT_D2
VTT_D1
LED1 & LED2: Debug Indicators
PH1_D1 ~ PH4_D4/VTT_D1 ~ VTT_D2: Power Status Indicators
Please refer to the tables below for specific messages:
LED1 LED2 Message
ON ON Normal
ON OFF Memory Error
OFF ON VGA Error
OFF OFF Abnormal: CPU / Chipset error.
PH1_D1 ~ PH4_D4
VTT_D1 ~ VTT_D2
Phase Indicator
ON Phase Active
OFF Phase Inactive
On-Board Buttons
There are 2 on-board buttons.
SW_RST1
SW_PWR1
SW_RST1: Reset button.
SW_PWR1: Power Switch button.
