TP67XE
15

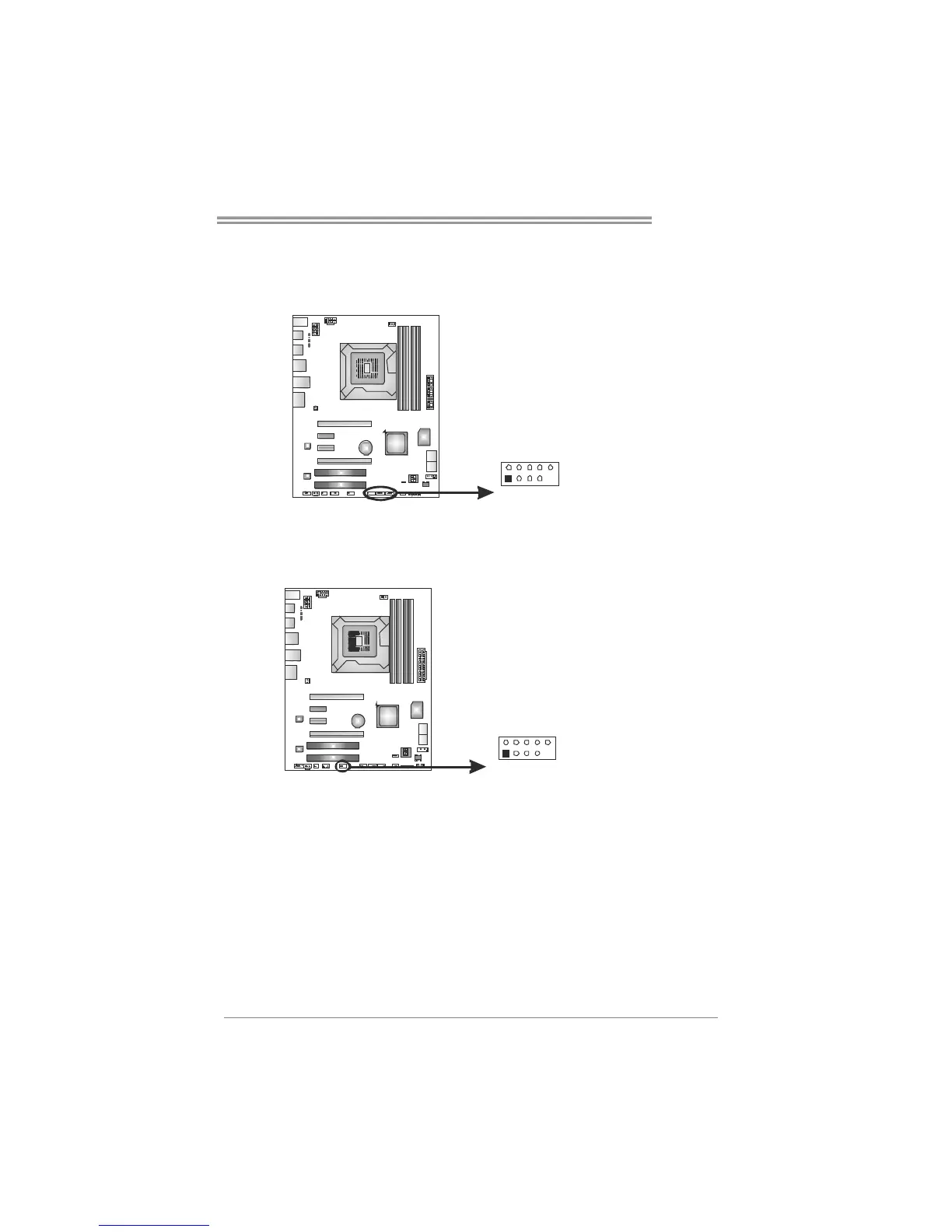

F_USB1/F_USB2/F_USB3: Headers for USB 2.0 Ports at Front Panel
These headers allow user to connect additional USB cable on the PC front panel,
and also can be connected with internal USB devices, like USB card reader.
Pin
Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
1
2
9
10
F_ USB1
F_USB2
US B3 F_
10 NC
F_1394A1: IEEE 1394 Header
This header allows user to connect IEEE 1394 device.
Pin
Assignment
1 TPA1+
2 TPA1-
3 GND
4 GND
5 TPB1+
6 TPB1-
7 VCC
8 VCC
9 N/A
1
2
9
10
10 KEY
To Next Page
