Motherboard Manual
18

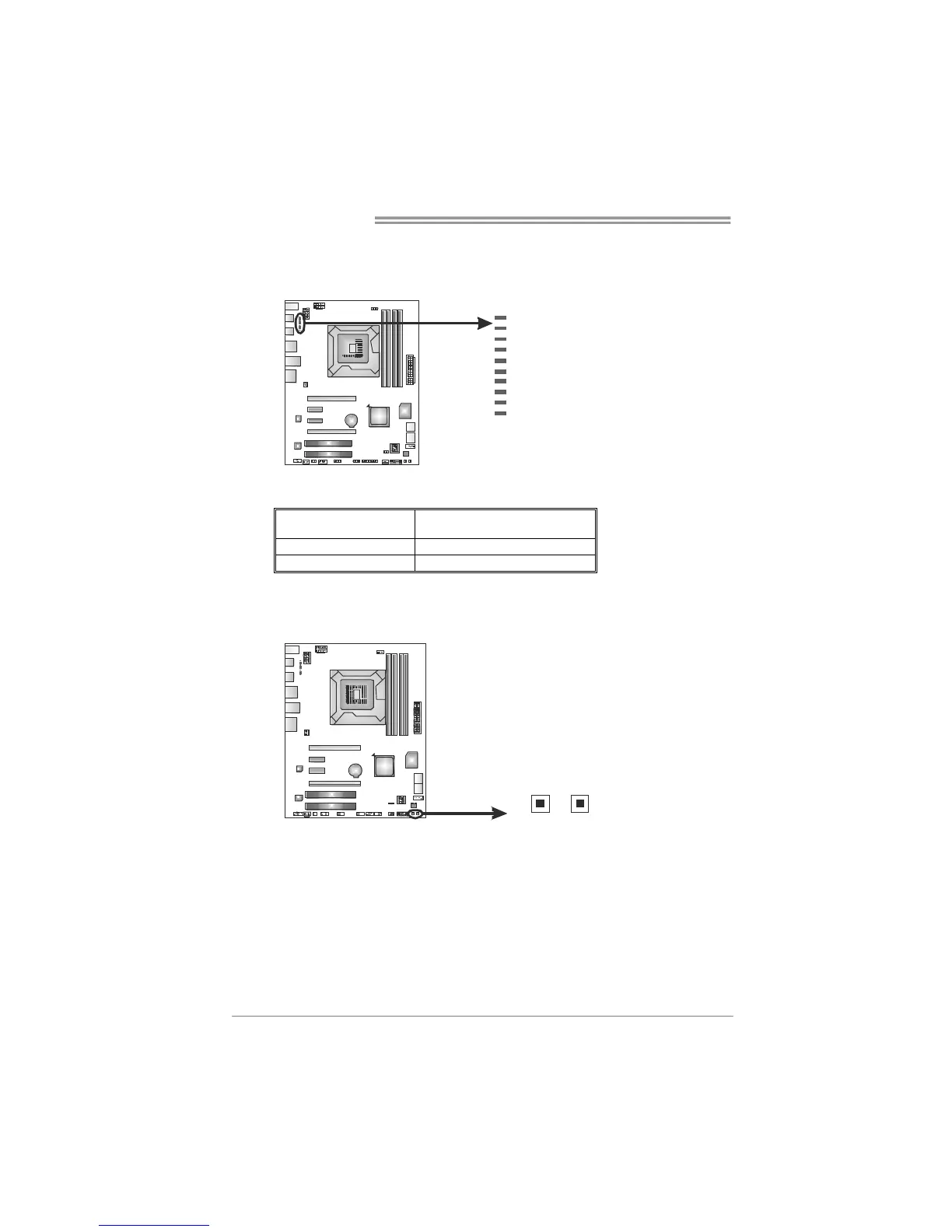

On-Board LED Indicators
There are 12 LED indicators on the motherboard showing system status.
PH5
PH6
PH3
PH4
PH1
PH2
PH7
PH8
VTT_LED1
VTT_LED2
PH1 ~ PH8 / VTT_LED1 ~ VTT_LED2: Power Status Indicators
Please refer to the tables below for specific messages:
PH1~PH8
VTT_LED1~VTT_LED2
Phase Indicator
ON Phase Active
OFF Phase Inactive
On-Board Buttons
There are 2 on-board buttons.
SW_RST1
SW_PWR1
SW_RST1: Reset button.
SW_PWR1: Power Switch button.
