Motherboard Manual

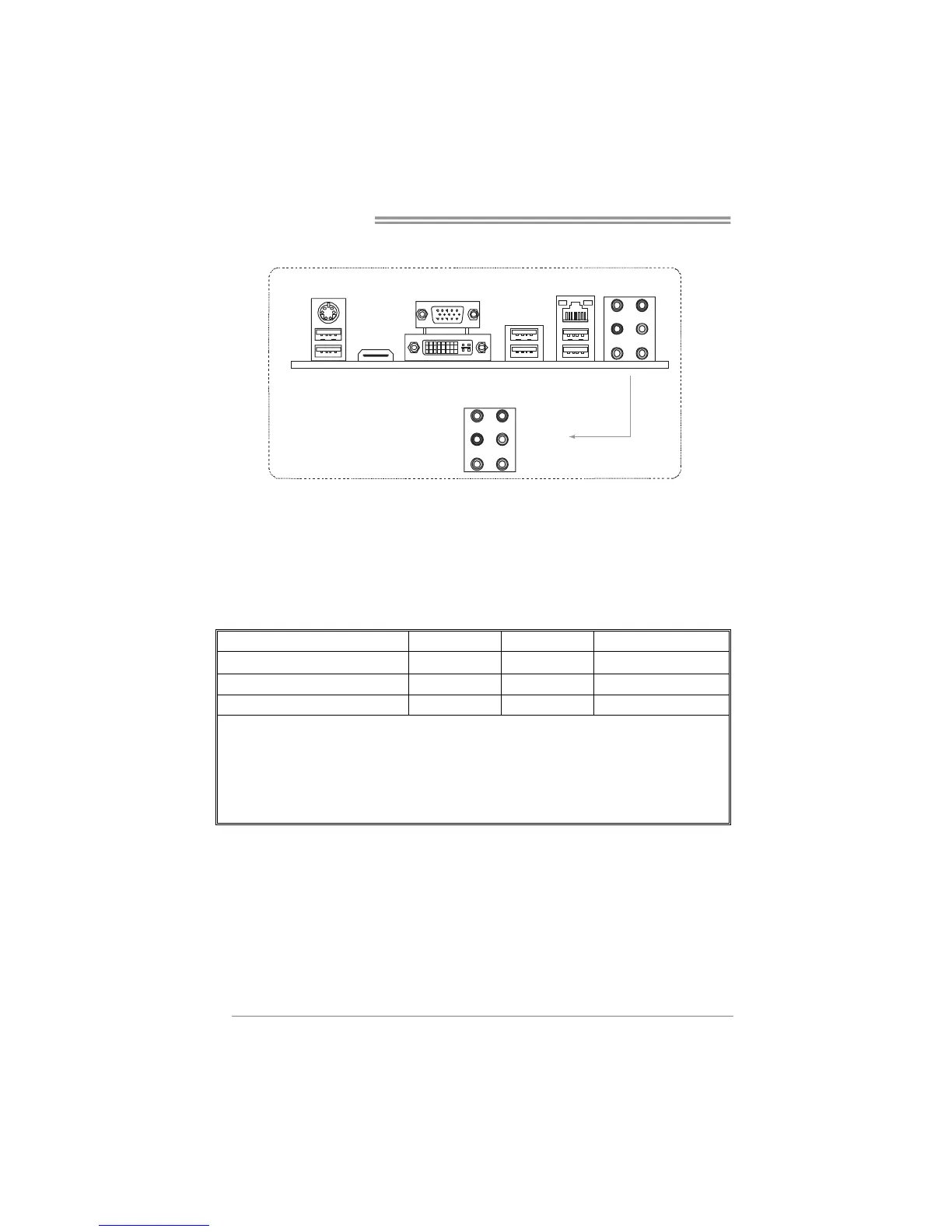

1.4 REAR PANEL CONNECTORS

Line In

Line Out

Mic In

Center

Rear

Side

USB3.0X2 USB2.0X2

LAN

HDMI

VGA

DVI-D

PS/2

Keyboard

USB2.0X2

NOTE: USB3.0 ports (only supported by Windows 7) are backward compatible with

USB2.0/USB1.X devices.

NOTE: Maximum resolution:

HDMI: 1920 x 1200 @60Hz, compliant with HDMI 1.4a

DVI: 1920 x 1200 @60Hz

VGA: 2048 x 1536 @75Hz

NOTE: This motherboard supports dual video output:

Display Devices

VGA

DVI-D HDMI

VGA

X A A

DVI-D A X S

, C, E

HDMI A S

, C, E X

z A = Single Pipe Single Display, Intel® Dual Display Clone (Only 24-bpp), or

Extended Desktop Mode

z C = Clone Mode

z E = Extended Desktop Mode

z S

= Single Pipe Single Display With One Display Device Disabled

z X = Unsupported / Note Applicable
