Biostar X570GT Ver. 6.x User Manual

Chapter 2: Hardware installaon | 15
X570GT

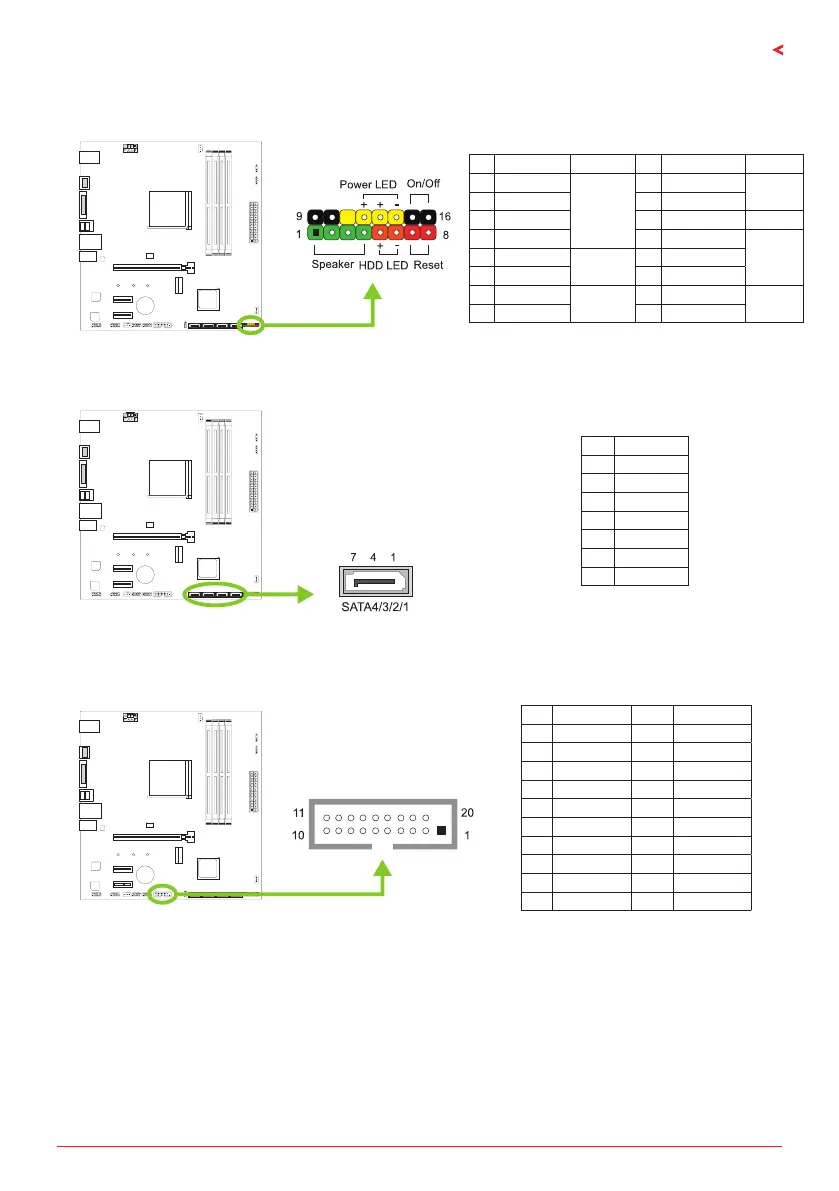

PANEL1: Front Panel Header
This 16-pin header includes Power-on, Reset, HDD LED, Power LED, and speaker connecon.
Pin Assignment Funcon Pin Assignment Funcon
1 +5V
Speaker
Connector
2 N/A
N/A
3 N/A 4 N/A
5 N/A 6 N/A N/A
7 Speaker 8 Power LED (+)
Power
LED
9 HDD LED (+)
Hard drive
LED
10 Power LED (+)
11 HDD LED (-) 12 Power LED (-)
13 Ground
Reset
buon
14 Power buon
Power-on
buon
15 Reset control 16 Ground
SATA1/ 2/ 3/ 4: Serial ATA 6.0 Gb/s Connectors
These connectors connect to SATA hard disk drives via SATA cables.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
JFRONT_USB3_1: Header for USB 3.1 Gen1 (5Gb/s) Ports at Front Panel
This header allows user to add addional USB ports on the PC front panel, and also can be
connected with a wide range of external peripherals.
Pin Assignment Pin Assignment
1 VBUS0 11 D2+
2 SSRX1- 12 D2-
3 SSRX1+ 13 Ground
4 Ground 14 SSTX2+
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 Ground
7 Ground 17 SSRX2+
8 D1- 18 SSRX2-
9 D1+ 19 VBUS1
10 ID 20 Key
