第二章: 硬體安裝 | 17
Z490A-SILVER

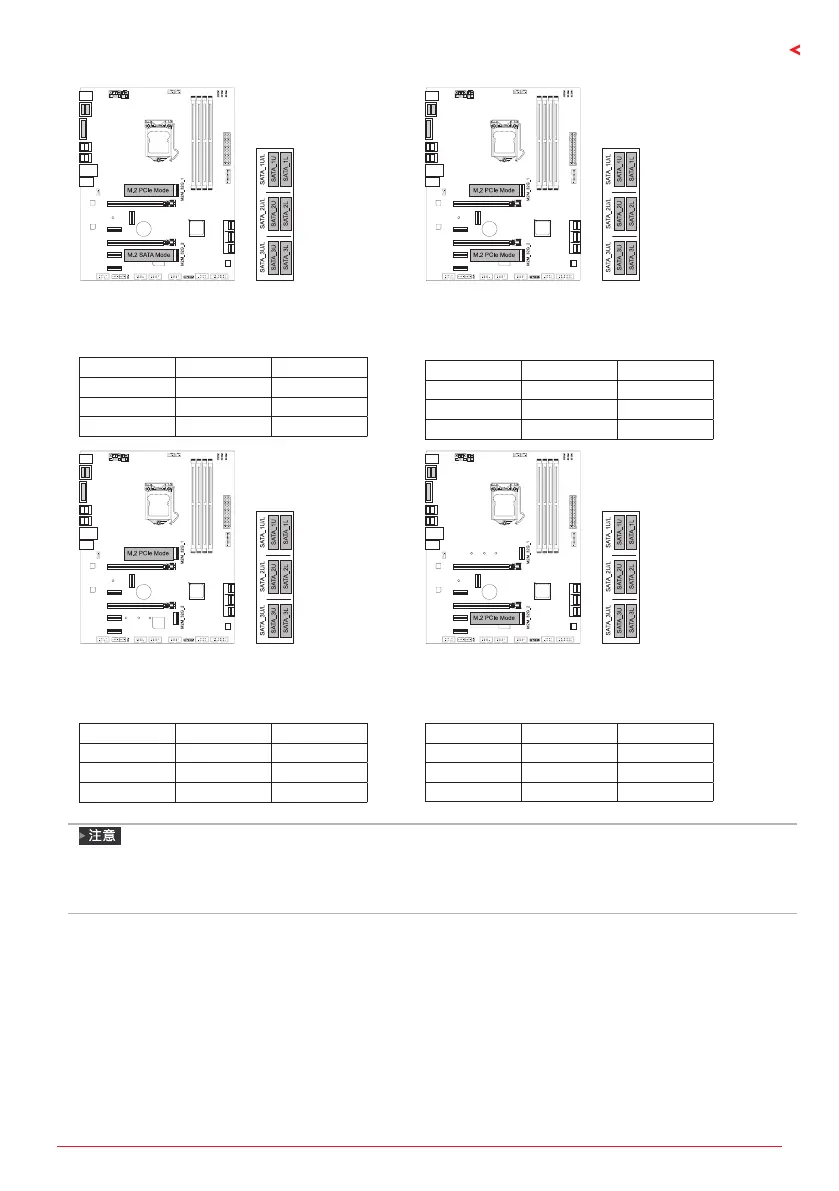

1x M�2 PCIe SSD Slot + 1x M�2 SATA
SSD Slot -- 6x SATA HDDs
SATA_1U SATA_2U SATA_3U
O O O
SATA_1L SATA_2L SATA_3L
O O O
2x M�2 PCIe SSD Slot -- 6x SATA HDDs
SATA_1U SATA_2U SATA_3U
O O O
SATA_1L SATA_2L SATA_3L
O O O
1x M�2 PCIe SSD Slot -- 6x SATA HDDs
SATA_1U SATA_2U SATA_3U
O O O
SATA_1L SATA_2L SATA_3L
O O O
1x M�2 PCIe SSD Slot -- 6x SATA HDDs
SATA_1U SATA_2U SATA_3U
O O O
SATA_1L SATA_2L SATA_3L
O O O
»
當安裝SATA SSD模組於M.2(M2M_32G_1)插槽，則SATA(SATA_3U、SATA_3L)接頭將會被禁用。
»
當安裝NVMe/ AHCI PCIe SSD模組於M.2(M2M_32G_1)插槽，所有的SATA接頭皆為可使用狀
態。
