a) Switch off
the power supply.
Note: switch off
any external voltage
separately at terminals
51, 52 and 54.

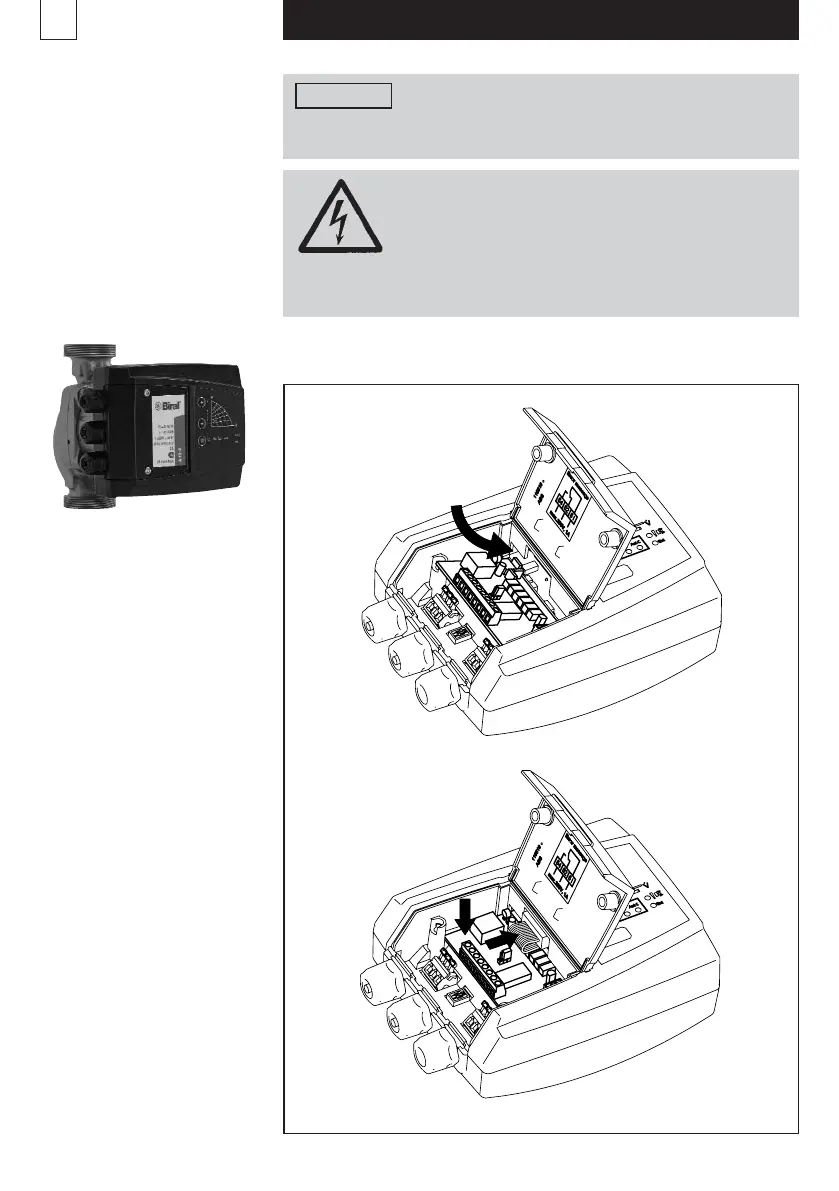

b) Open the lid
c) Check the voltage
at the pump
d) Install and connect
the control module
e) Connect the desired
function and configure
according to points
3 to 7 if required
f) Close the lid
g) Switch on the pump
again
Note:
For a built-in control
module the operating keys
no longer work.
1. Installation of the control module
Before attaching the control module
the supply voltage must be switched off
at all poles.
A specialist must carry out
the electrical connection.
The guidelines of the public energy
supply company must be adhered to.
Take note of the NIN (CENELEC)
guidelines.
