Biral A Series Manual

81-82 Multitherm/PWM
Input for external
speed specification
71-72 Analogue input
0...10 V or
0..20 mA
for external
speed specification
10-11 Control contact
for external
deactivation
of the pump
(Contact open
= pump ON;
Contact closed
= pump OFF)
91-92 Dual pump
Note:
Use shielded cable
with a maximum cable
cross section of 1 mm
2
.

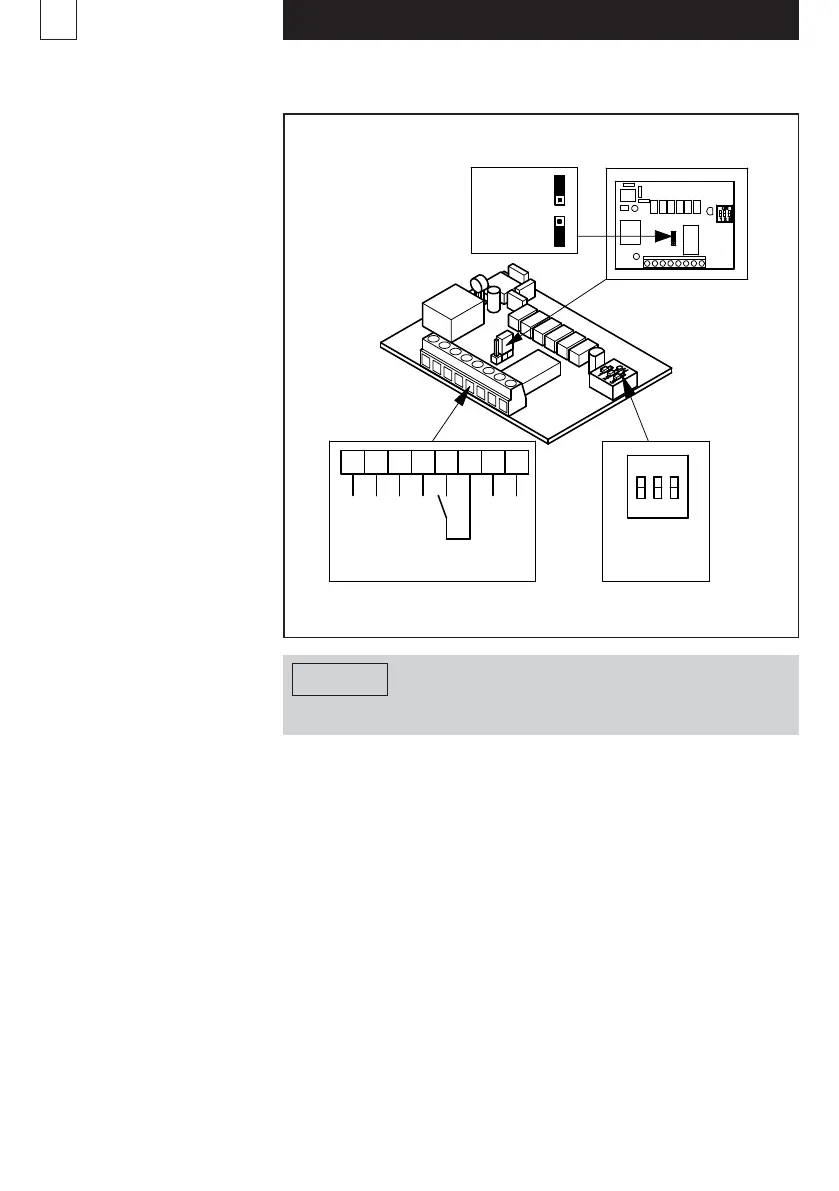

3. Control module connection drawing
english
12
81 82 71 72 11 10 9291
ON
3
2
1
SW 1 SW 2 SW 3
0-20 mA
0-10Volt
961006_00
Switch
If the control module is connected
and there is no external signal,
the pump turns at minimum speed.
Note
