DISASSEMBLY AND REASSEMBLY INSTRUCTIONS
a Reinstall tubing per the numbered coding
NOTE: Lubricate O-rings (P/N 6435) with Lubewick system found on the tubing and components
(P/N
0042)
prior
to
installation.
or
refer
to
Fig.
32.
@ Replace all quick-disconnect grip rings (P/N
4143) prior to tube installation.

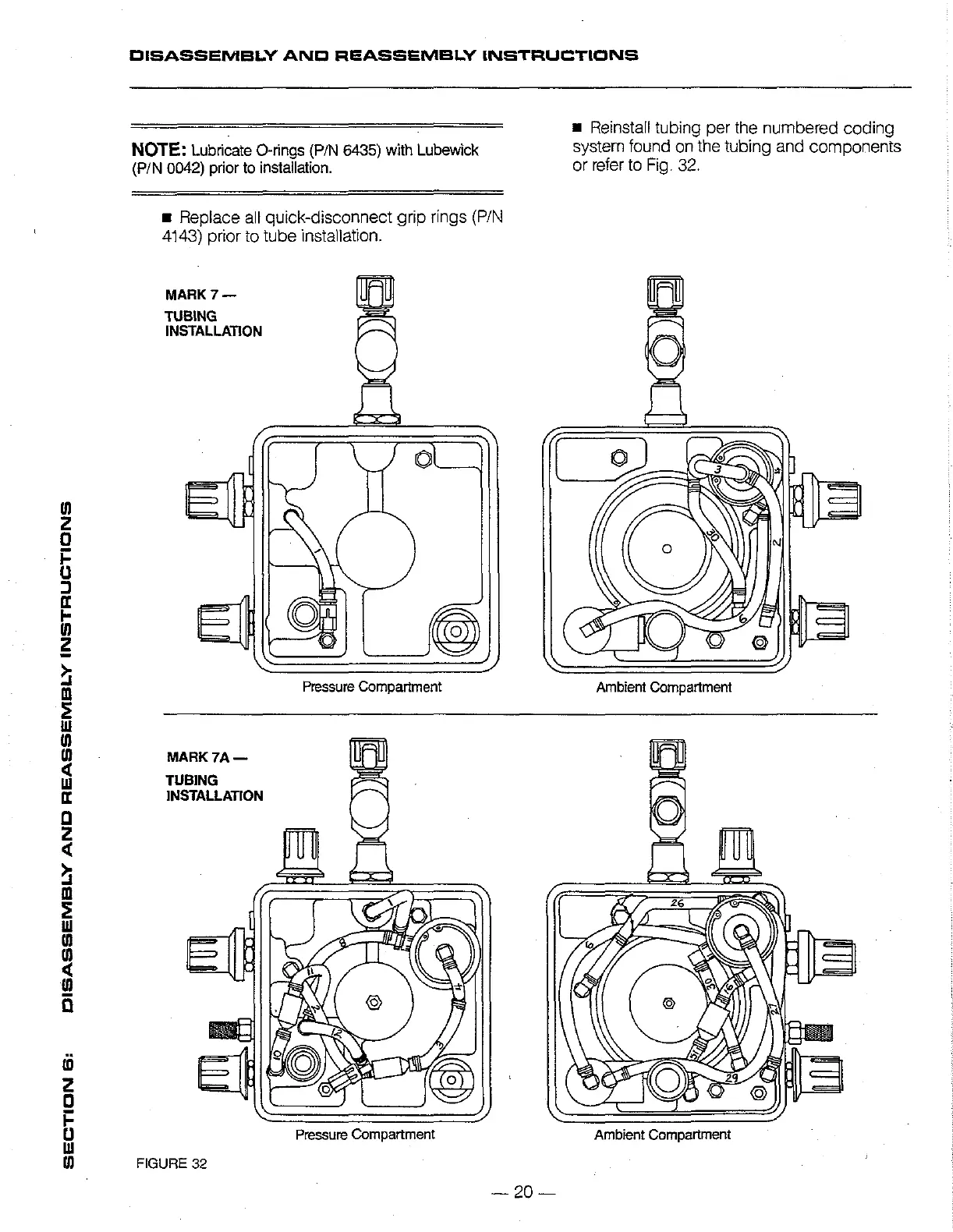

MARK 7 —
TUBING
INSTALLATION
Pressure Compartment
MARK 7A —
TUBING
INSTALLATION
Pressure Compartment Ambient Compartment
FIGURE 32
