BIRO 109PCM - Page 17

13
1. PCM511 Clutch frame door
2. VT460S Model & serial nameplate
3. PCM568 Cover, RH holding plate
4. FW06S Flatwasher ¼ SS
5. LW10S Lock washer ¼ SS
6. AN15S Acorn nut SS ¼-20
7. PCM518 Clutch door
8. PC390 Keeper, latch, SS
9. HHS010S Hex head screw 10-32 x ⅜ SS
10. LW05S Lock washer #10 SS
11. HN10S Hex nut 10-32 SS
12. 42MC-Y71SOU Hold down latch SS
13. CB60S Carriage bolt, ¼-20 x ½ SS
14. PCM632 Label, thickness range scale
15. PCM517 Front panel
16. VTS7181 Biro world decal
17. PC175-1 Caster, 5” dia, total lock swivel
18. HHS055S Hex head screw
5
/16-18 x ¾ SS
19. LW15S Lock washer
5
/16 SS
20. 272-8 Acorn nut
5
/16-18 SS
21. HHS025S Hex head screw ¼-20 x ½ SS
22. PCM646 Loading chamber cover assembly
23. PCM524 LH door & recv chamber
24. FHS05S Flat head screw 8-32 x
5
/16
25. PC012 Tray safety switch spacer
26. PC168 Loading & receiving chamber switch
27. RHS073S Round head screw 8-32 x ½ SS
28. PC038-1 Connecting plate
29. AN15S Acorn nut ¼-20 SS
30. T3067 Safety cover hinge
31. 14593 Belleville spring SS washer
32. HN15S Hex nut ¼-20 SS
33. PC035 Chamber cover hinge & hinge pin
34. PC178 Chamber cover bumper
35. PCM537 Top panel
36. PC154 Brake release switch
37. PC031 Legend plate, brake release
38. PCM621 Label, warning & operating
39. 31-50-S10 Jog switch
40. PCM622 Name plate, run-jog
41. PC155-1 Emergency stop switch
42. PC156-1 Legend plate, emergency stop
43. PC157 Main power switch
44. PCM521 Rear panel
45. 653PS Warning label
46. 42MC-665 Label, wired for 3 phase
47. 653SP Warning label, Spanish
48. 42MC-656 Voltage label, wired 208V
Fig. Item Number Description

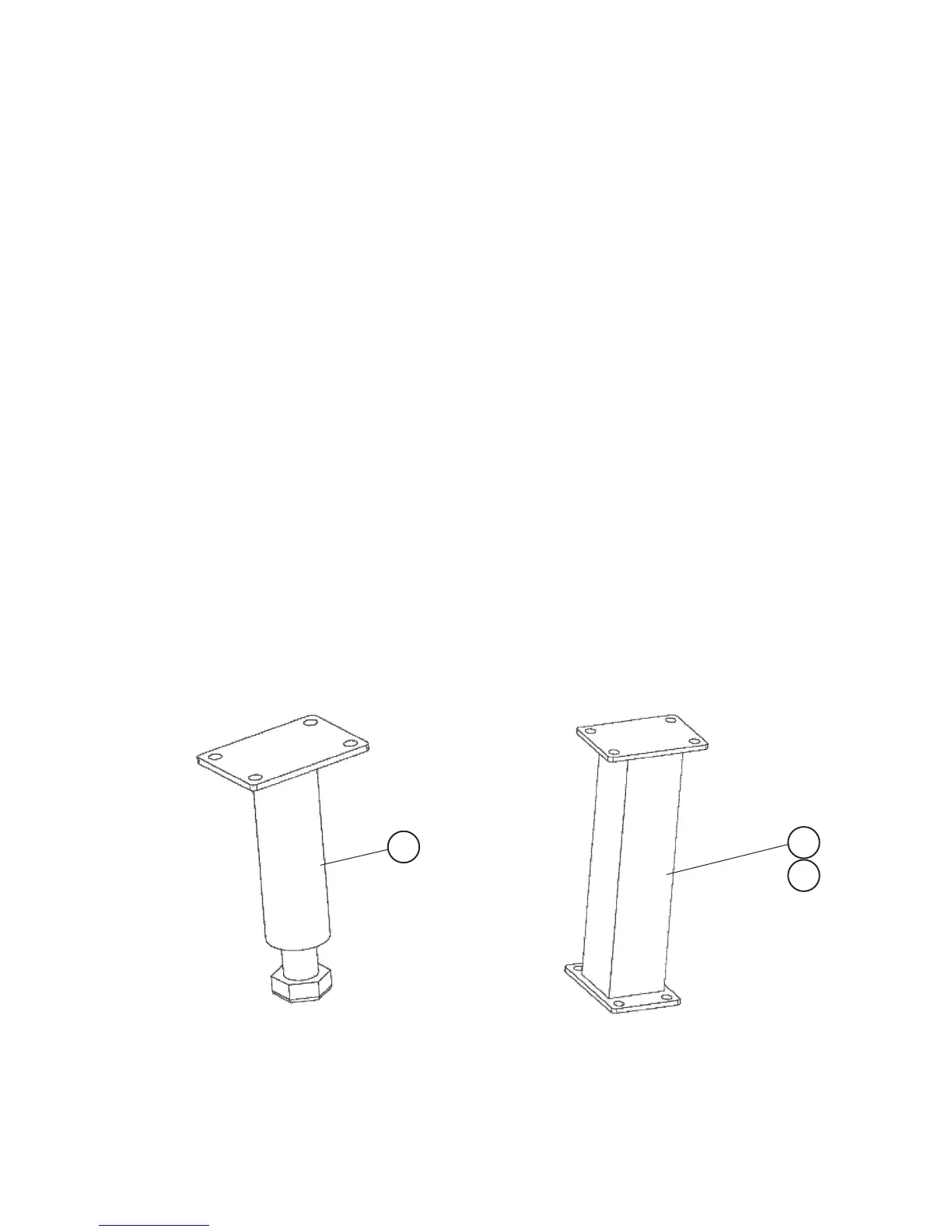

Stationary Foot Leg extension
49. PC087 Stationary foot
50. PC250 Leg extension, 7½”
51. PC200 Leg extension, 9”
OPTION
Fig. Item Number Description
50
51
49
