23
1. PC354 Fixed Idle End, LH
2. PC353 Fixed Idle End, RH
3. PC357 Spacer, Fixed Idle End
4. PC358 Nose Roller, Idle End
5. PC356 Seal, Conveyor Idle Side
6. PC355 Bearing, 12mm x21mm x5mm
7. HHS046S Hex Head Screw ¼-20 x1 SS
8. HHS040S Hex Head Screw ¼-20 x ¾ SS
9. PC315 Bed, Conveyor
10. PC351 Spacer, Conveyor Bed -2 Req’d
11. HHS025S Hex Head Screw ¼-20 x ½ SS
12. HHS083S Hex Head Screw ⅜-16 x1¾ SS
13. 291-1 Knob, 2
5
/16 Long
14. PC350 Pivot Mounting Plate, Conveyor
15. HHS040S Hex Head Screw ¼-20 x ¾ SS
16. FW06S Flat Washer, ¼ SS
17. LW10S Lock Washer, ¼ SS
18. HN15S Hex Nut, ¼-20 SS
19. SSB40S Shoulder Bolt,
5
/16-18 x ⅜, SS
20. LW15S Lock Washer,
5
/16 SS
21. HN20S Hex Nut,
5
/16-18 SS
22. HHS025S Hex Head Screw ¼-20 x ½ SS
23. PC316 Drive Tension Bracket, RH
24. PC317 Drive Tension Bracket, LH
25. PC352 Spacer, Drive End
26. PC314 Power Roller, 2½ OD x14.41LG
27. PC386 Strain Relief, Power Roller
28. SSS025S Set Screw 8-32 x
3
/16 SS -2 Req’d
29. PC159 Strain Relief Fitting
30. PC320 Male Contact Holder, Female Thd
31. PC369 Wire Tie, Yellow Marker Tie
32. PC419 Label, Drive Roller Instructions
33. PC359 Conveyor Belt, 10” Wide x 97⅞”
34. PC368 Wiper, Drive Bottom
35. TS010S Thumb Screw, 10-32 x ½ SS -2 Req’d

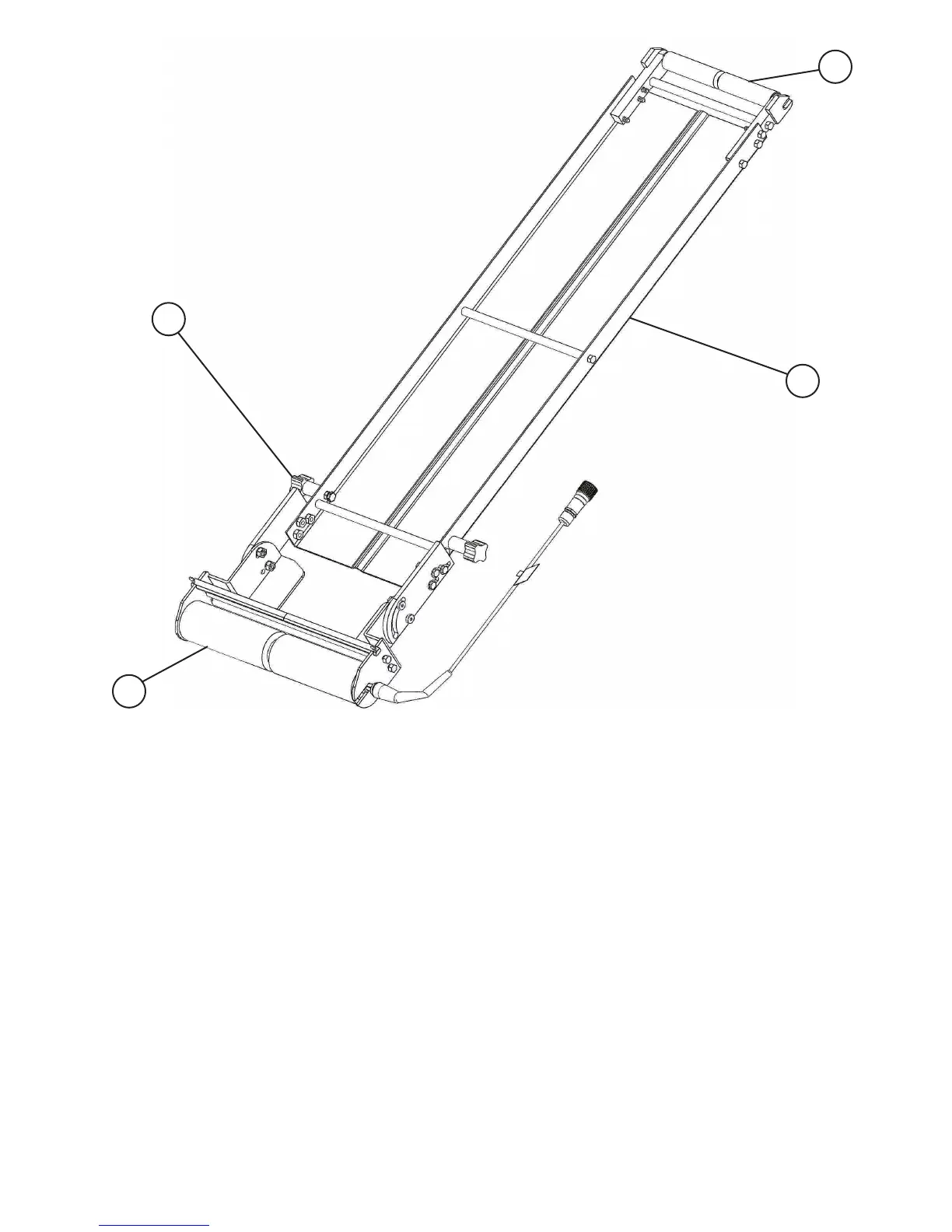

13
26
9
4
Fig. Item No. Description Fig. Item No. Description
