BIRO 1433 - Watertight Magnetic Switch Assemblies

23
Description
A22616EE-514
BAEG/MS-PB/05-C8 2HP 208-220-50/60-3
BAEG/MS-PB/05-E4.7 2HP 440/460-3
A22616EE-518
BAEG/MS-PB/05-D4.7 1.5-2HP 380/415-50-3
A22616EE-522
BAEG/MS-PB/05-C14 3HP 220-230-50/60-3
A22616EE-5221
BAEG/MS-PB/05-CS14 1.5HP 220/230-50/60-1
A22616EE-5241
BAEG/MS-PB/A26 1.5-2HP 104/115-60-1
A22616EE-5261
BAEG/MS-PB/CS16 2HP 230-60-1
A22616EE-516
Description
A22616EE-530
BAEG/MS-PB/05-F3.2 2HP 550/575-3
BAEG/MS-PB/05-E6.3 3HP 440/460-60-3
A22616EE-536
BAEG/MS-PB/05-D8 3HP 380-60-3
A22616EE-534

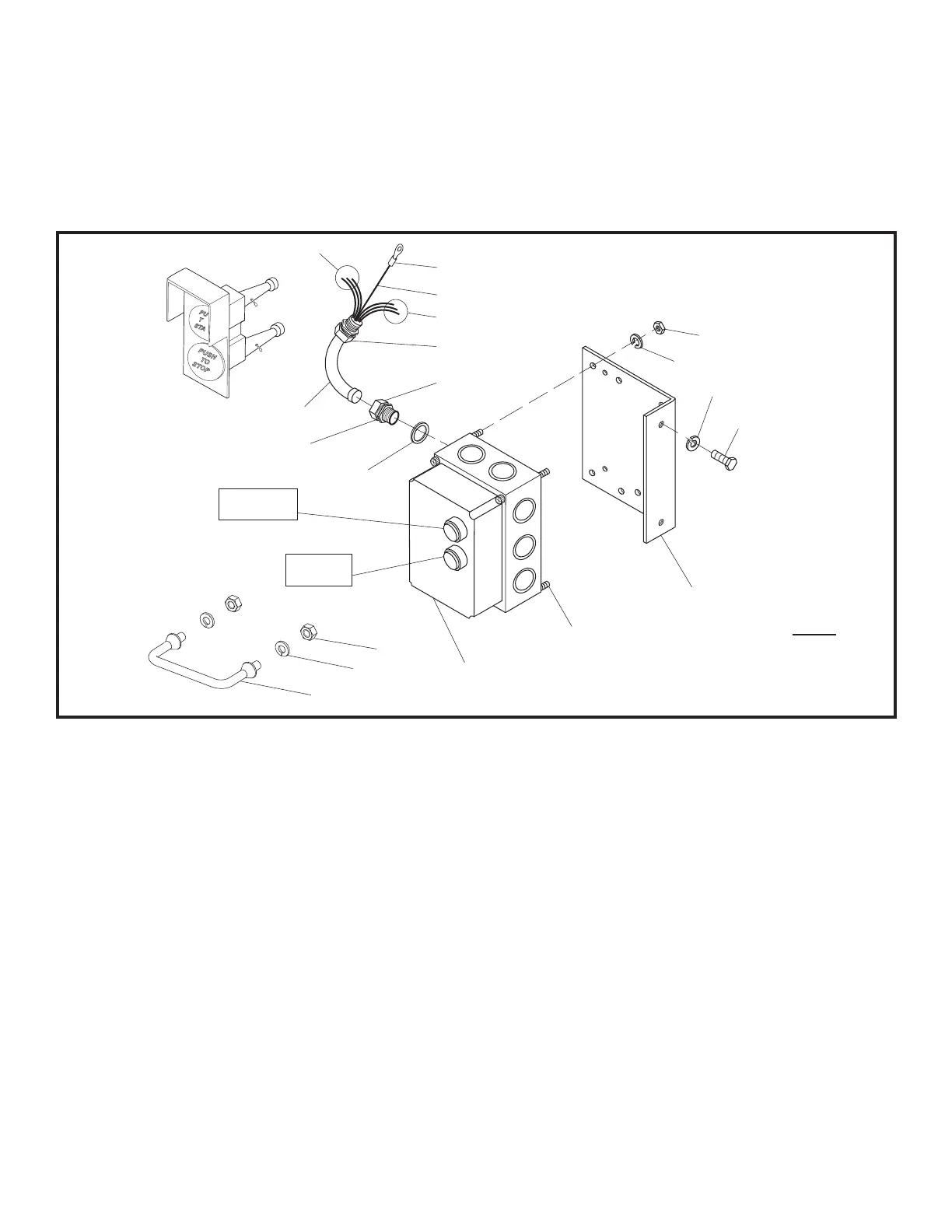

WATERTIGHT MAGNETIC SWITCH ASSEMBLIES
(AEG)
INCLUDES MOUNTING BRACKET AND WIRES
Item No.
Item No.
NOTE
SERIAL NO.
REQUIRED
Description
Contactor, LS11K.11S-FO, 575V
226EE-22PB-GE
Start P/B, 22mm Ext w/ NO contact block
226EE-22PB-RE
Stop P/B, 22mm Flush w/ NC contact block
226EE-514
BAEG/MS-PB/05-C8 2HP 220-50/60-3
226EE-516F
BAEG/MS-PBF/05-E4.7 1-1/2-2HP 440-60-3
226EE-518
BAEG/MS-PB/05-D4.7 2HP 380-50-3
226EE-FO11K
241RD
Wire, Red, 12 GA., CSA & UL
BAEG/MS-PSF/05-CS14 1.5HP 230-50/60-1
226EE-5241
BAEG/MS-PB/A26 2HP 120-60-1
226EE-5261
BAEG/MS-PB/CS16 2HP 230-60-1
226EE-530
BAEG/MS-PB/05-F3.2 2HP 550-60-3
226EE-534
BAEG/MS-PB/05-E6.3 3HP 440-60-3
226EE-536
BAEG/MS-PB/05-D8 3HP 380-50-3
226EE-5221
226-28
Washer, 1-1/2 x 27/32 SS
Wire, Black, 12 GA., CSA & UL
241GR
Wire, Green, 12 GA., CSA & UL
241WH
Wire, White, 12 GA., CSA & UL
297-1
Wire terminal eyelet, 12 GA.
42MC-Y73
Green start button, 30mm
42MC-Y74
Red stop button, 30mm
241BL
Item No.
226EE-AO11K
Contactor, LS11K.11S-AO, 120V
226EE-CO11K
Contactor, LS11K.11S-CO, 208-230V
226EE-EO11K
Contactor, LS11K.11S-EO, 380-415V-50hz
Description
A16226A-SG
Green/red switch button assembly
H462A
Guard assembly for switch buttons
HHS070S
HN05S
Hex nut, 8-32 SS
HN20S
Hex nut, 5/16-18 SS
LW03S
Lock washer, #8 SS
Lock washer, 5/16 SS
LW25S
Lock washer, 3/8 heavy SS
RHS075S
Round head screw, 8-32 x 3/4 SS
LW15S
Hex head screw, 3/8-16 x 1, SS
Item No.
16296-2
Switch bracket, SS
151
Watertight conduit
226EE-ENCL
-PB22
Enclosure w/ pushbutton, 30mm holes
226EE-OL02.4H
Overload, B05-H, 1.7-2.4A
226EE-OL4I
Overload, B18K-I, 2.5-4A
H281EE-51
Overload, B18K-K, 4-6.3A
Overload, B18K-L, 5.5-8.5A
226EE-OL12M
Overload, B18K-M, 8-12A
H281EE-31
Overload, B18K-N, 10-16A
226EE-OL26ON
Overload, B18K-ON, 21-26A
226EE-OL08.5L
14256
14257
14258
225-3
Junction box, plastic w/ cover
Junction box, metal
Junction box cover, metal
Conduit connector, WT, 45
0
226EE-22PB-GF
Start P/B, 22mm Flush w/ NO contact block
PUSH
TO
STOP
PU
T
STA
A16226A-SG
LW15S (2)
HN20S (2)
H462A
or
H462-2
297-1
241GR
16296-2
or
16296-3
LW20S (2)
HHS070S (2)
LW03S (4)
HN05S (4)
241BL
224-1F
or
224-1N
241WH
224-1
151
225-3
or
225-1P
226-28 (2)
226EE-22PB-RE
or
42MC-Y74
226EE (SPECIFY ELECTRICAL SPECS)
RHS075S (4)
226EE-22PB-GE
or
42MC-Y73
