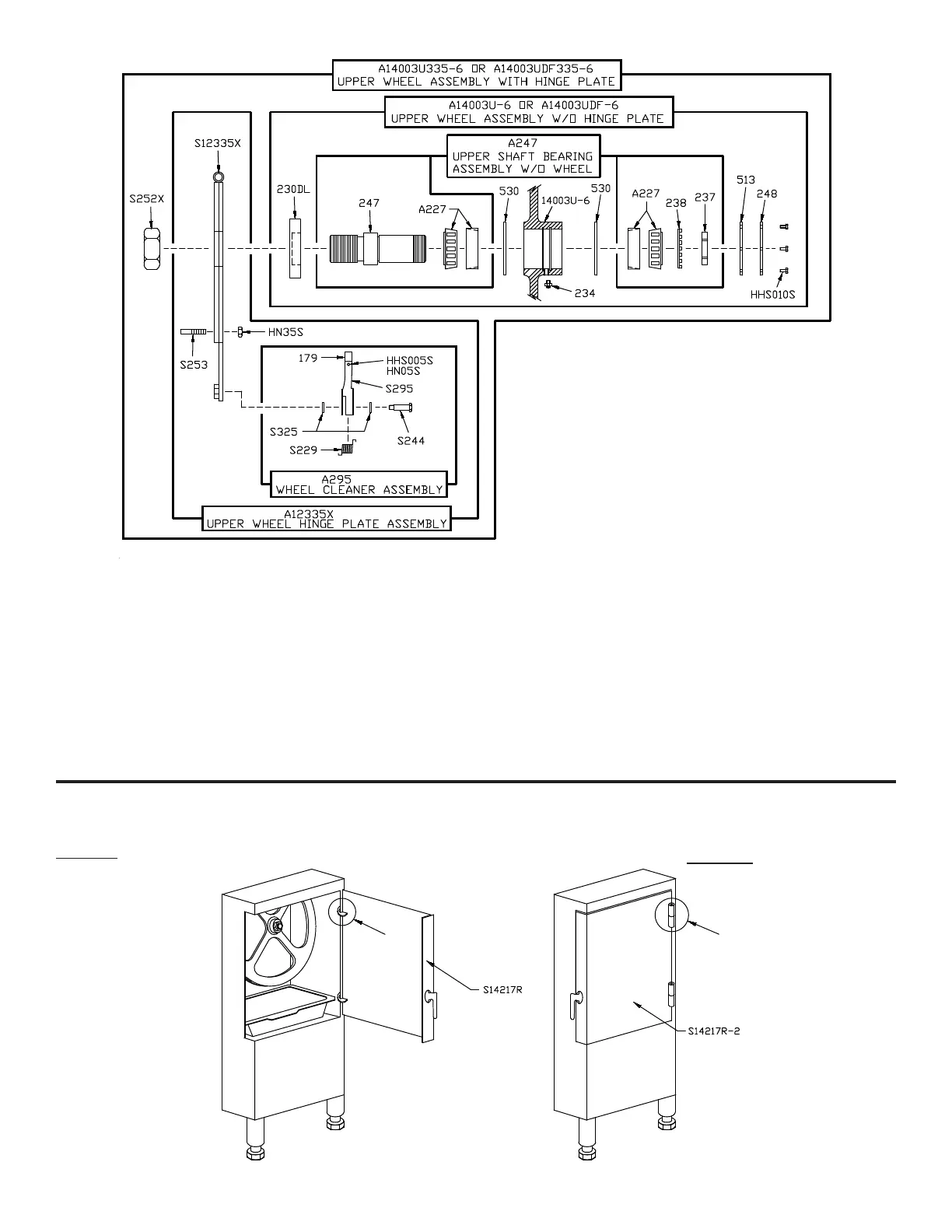

BIRO 1433 - Upper Wheel Assembly Parts

17
Description
S229
Wheel cleaner arm spring, SS
S244 Wheel cleaner arm stud, SS
S253
S295
Upper wheel aligning screw, SS
Wheel cleaner arm, SS
S325
Wheel cleaner arm stud washer, SS
14003U-6
Upper wheel, 14”, 6 spoke
179
Wheel cleaner
230DL
234
Item No.
Upper shaft seal, double lip
Grease tting
237
Upper shaft castellated lock nut
238
Upper shaft castellated lock washer
247
Upper shaft
248
Upper wheel hub cap
S252X
Upper shaft nut
513
Upper wheel hub gasket
Retaining ring, (2 req.)
530
A14003U-6
Upper wheel assembly w/o hinge plate
A14003U335-6
Upper wheel assembly w/ hinge plate
A14003UDF-6
Upper wheel assembly - double ange
w/o hinge plate
A14003UDF335-6
Upper wheel assembly - double ange
w/ hinge plate
A247
Upper shaft bearing assembly w/ spacer
A12335X
Upper wheel hinge plate assembly
A227
Upper bearing cup/cone assembly
A295
Wheel cleaner assembly
Description
HHS005S
Hex head screw, 8-32 x 1/2 SS
HHS010S
Hex head screw, 10-32 x 3/8, SS
HN05S
Hex nut, 8-32, SS
HN35S
Hex nut, 3/8-16, SS
S12335X
Upper wheel hinge plate, SS
Item No.
14003UDF-6
Upper wheel, 14”, double ange, 6 spoke
Base Door Hinge System on the Model 1433 and 1433FH Series has been changed from an
internal “plate & pin” system to an external “barrel & pin” system (see sketch below).
Old Style
Hinged Base Door - #S14217R
Before Serial No. 2218
New Style
Hinged Base Door - #S14217R-2
Starting with Serial No. 2218
