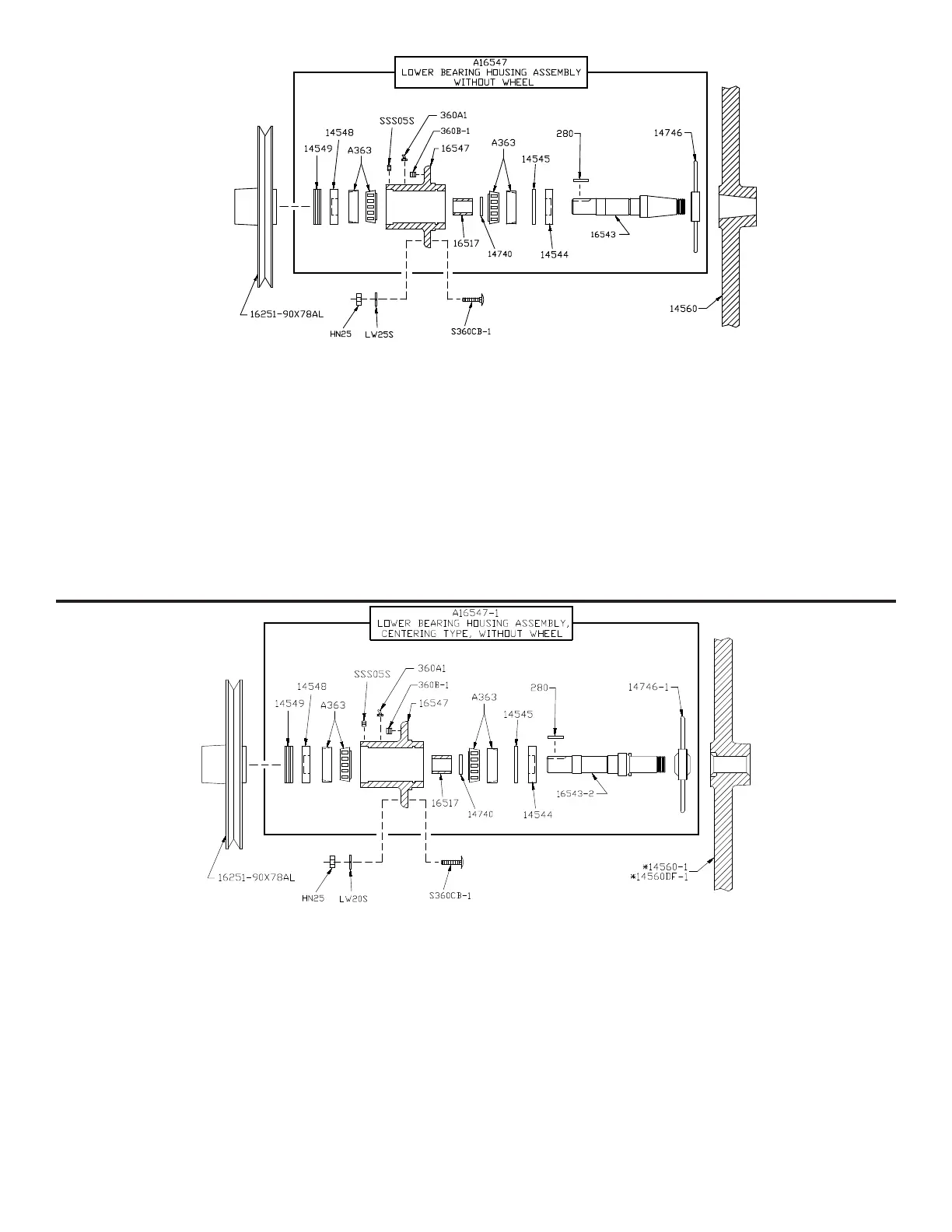

BIRO 1433 - Lower Bearing Housing Assembly Parts

18
Description
Item No.
A16547-1
Lower bearing housing assembly w/o wheel
A363
Lower bearing cup/cone assembly
HN35S
Hex nut, ⅜ -16, SS
LW20S
Lock washer, ⅜, SS
SSS05S
Set screw cup, SS, 10-24 x ⅜
14544
Grease seal, 1½ ID
14545
Retaining ring, internal, 2-7/16 ID
Description
Item No.
*14560-1
Lower saw wheel, 14”, NA, Must Order
14560-2, 16543-3, 14746-2
*14560DF-1
14740
Retaining ring- external
14746-1
T- handle, removable lower wheel
16251-90X78AL
Pulley, upper V-belt 9 x ⅞ AL
16517
Inner race spacer, removable wheel
16543-2
Shaft, lower saw wheel
14548
Grease seal, ⅞ ID
14549
Lower bearing housing cap
14550
Adjustment screw, lower bearing housing
14551 Hex jam nut, ⅝ -11, SS
16547
Lower bearing housing, removable wheel
280
Key
360A1
Grease tting angular
360B-1
Set screw ½-13
Description
Item No.
A16547
Lower bearing housing assembly w/o wheel
A363
Lower bearing cup/cone assembly
HN35S
Hex nut, ⅜ -16, SS
LW20S
Lock washer, ⅜, SS
SSS05S
Set screw cup, SS, 10-24 x ⅜
14544
Grease seal, 1½ ID
14545
Retaining ring, internal, 2-7/16 ID
14548
Grease seal, ⅞ ID
14549
Lower bearing housing cap
14550
Adjustment screw, lower bearing housing
14551
Hex jam nut, ⅝ -11, SS
Description
Item No.
14560
Lower saw wheel, 14”
14560DF
Lower saw wheel, 14”, double ange
14740
Retaining ring- external
14746
T- handle lock, removable lower wheel
16251-90X78AL
Pulley, upper V-belt 9 x ⅞ AL
16517
Inner race spacer, removable wheel
16543
Shaft, lower saw wheel
16547
Lower bearing housing, removable wheel
280
Key
360A1
Grease tting angular
360B-1
Set screw ½-13
Lower saw wheel, 14”, DF NA, Must
Order 14560-2, 16543-3, 14746-2
S360CB-1
Carriage bolt, ⅜ -16 x 1 ¼, SS
