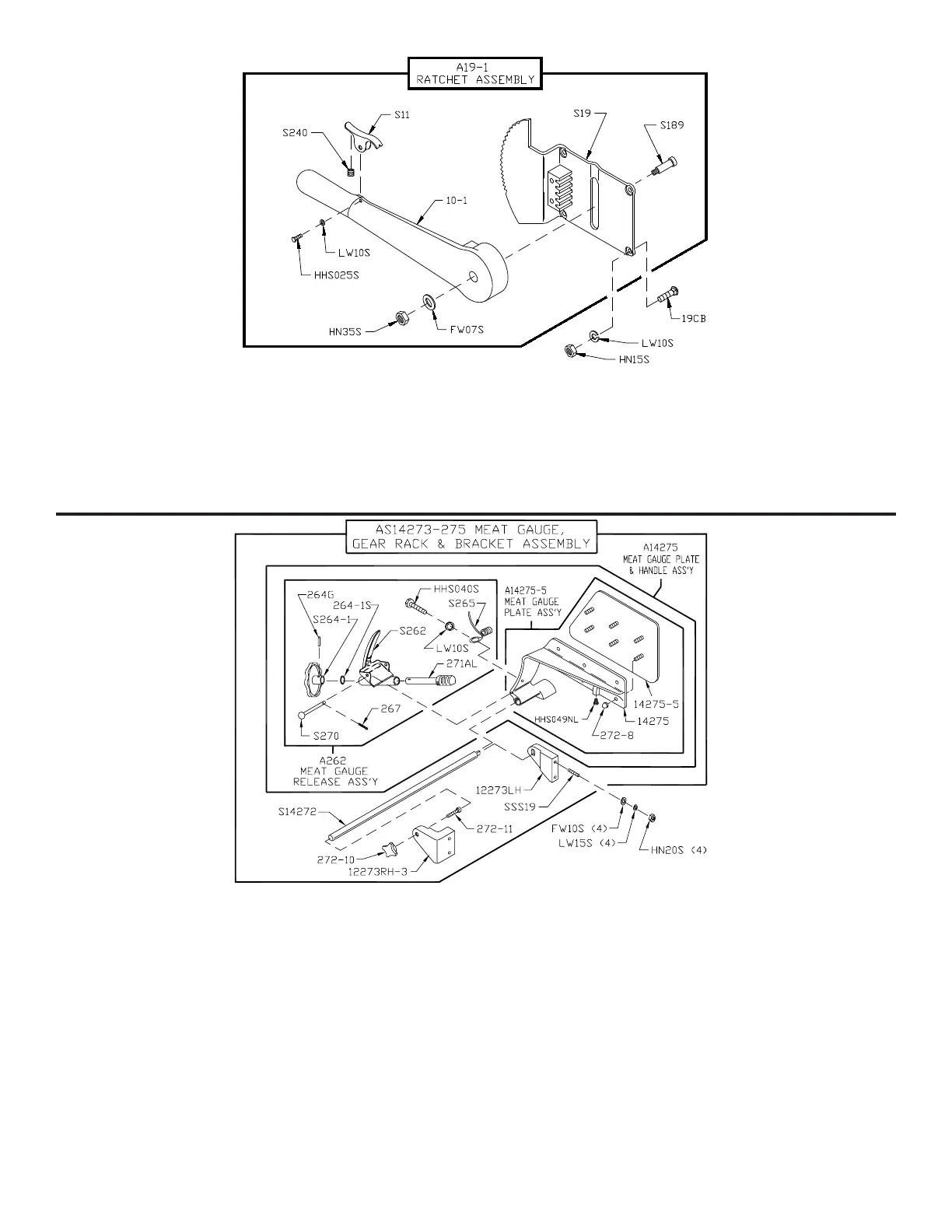

BIRO 1433 - Ratchet and Meat Gauge Assembly Parts

19
Item No. Description
A19-1
Ratchet assembly
HN35S
Hex nut, 3/8-16 SS
FW07S
Flat washer, 3/8 SS
LW10S
Lock washer, 1/4 SS
HN15S
Hex nut, 1/4-20 SS
HHS025S
Hex head screw, 1/4-20 x 1/2 SS
Item No. Description
S11
Ratchet trigger SS
19CB
Carriage bolt 1/4-20 SS
S189
Ratchet arm stud SS
S240
Ratchet trigger spring
10-1
Ratchet arm
S19
Ratchet base SS
Item No. Description
AS14273-275
Meat gauge assembly
HHS049NL
Hex screw- nylon, 5/16-18 x 1/2
A14275
Meat gauge plate assembly
HN20S
Hex nut, 5/16-18 SS
FW10S
Flat washer, 5/16 SS
A262
Meat gauge release assembly
Item No. Description
12273LH
Meat gauge bracket- LH
264G
Meat gauge hand wheel groove pin
12273RH-3
Meat gauge bracket- RH
S264-1
Meat gauge hand wheel, SS
14275-5
Meat gauge plate, SS
14275
Meat gauge arm
LW10S
Lock washer, 1/4 SS
S235
Taper pin, 4 x 3/4 SS
LW15S
Lock washer, 5/16 SS
S262
Meat gauge release handle, SS
SSS19
Set screw, cup point, 5/16-18 x 1-1/2 SS
HHS040S
Hex head screw, 1/4-20 x 3/4 SS
264-1S
Hand wheel shim, SS
272-8
Cap nut, 5/16-18, SS
267
Meat gauge release cotter pin
272-10
Lock knob 3/8-16, 4 point
271AL
Meat gauge worm gear, Aluminum
S270
Meat gauge release pin, SS
S265
Meat gauge release spring, SS
S14272
Meat gauge gear rack, SS
272-11
Allen head cap screw 3/8-16 x 1-1/2
