14
NEW
GUARD
15/16
7/8
KEEP
PARALLEL
Existing
Standard
Guard to Slide
Up & Inside
New Guard

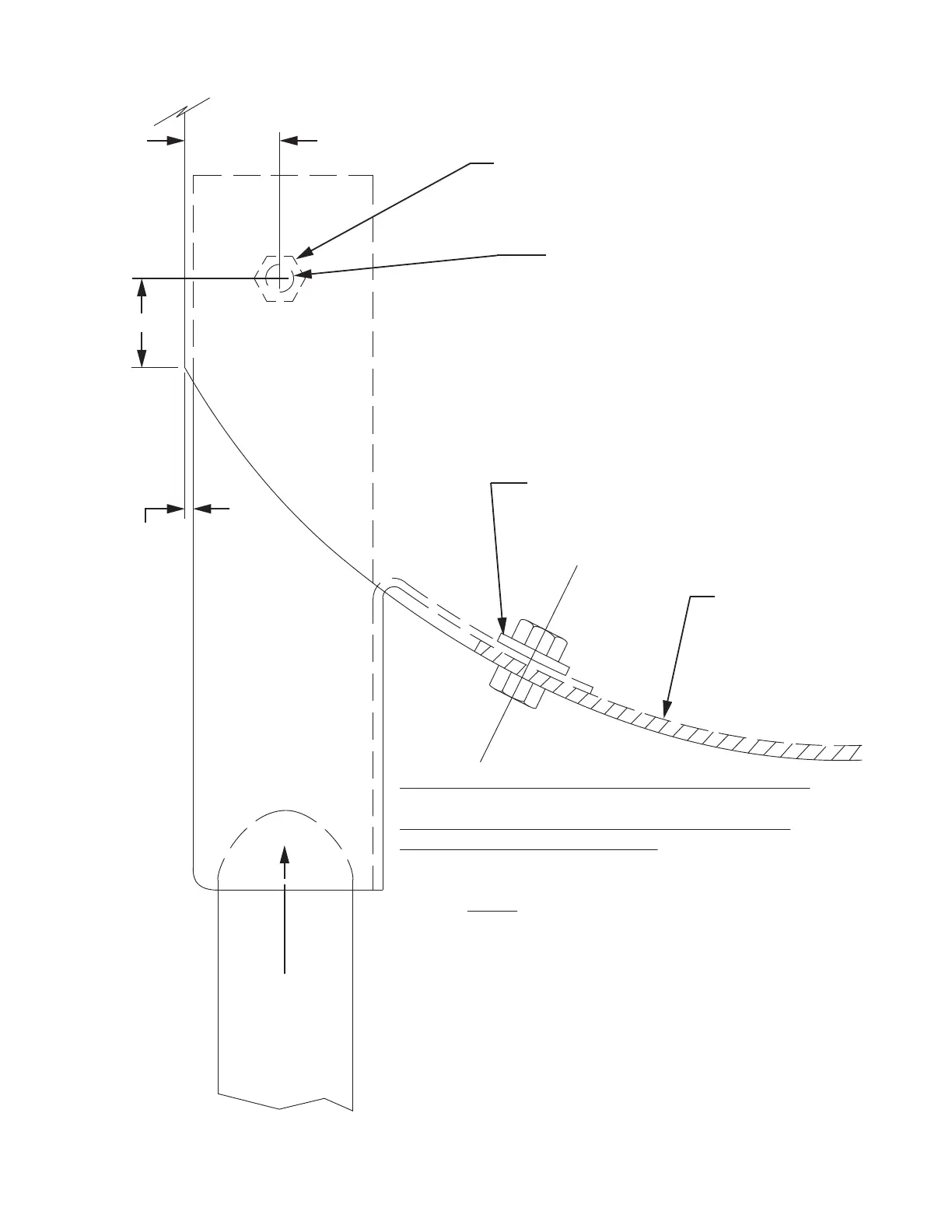

MODEL 33, 34, & 3334 GUARD ON HEAD DOOR
Instructions for Attaching New Guard For Use
With Extended Saw Guide Bar
-Remove head door and lay inside up, placing new
guard inside door face and flange as shown in
diagram.
-Drill upper hole first, clamp guard tight against
inside of door.
-Then drill lower flange hole, using hole in guard
as a locator for the lower bolt.
-NOTICE: Care must be taken to position edges
parallel so that the old standard guard will slide
up inside the new guard.
1/4” Nut & Lock Washer,
Outside
DRILL THIS HOLE 1st 9/32 DIAMETER
Attach with bolt, lock washer & nut
to door, INSIDE
THEN
DRILL THIS HOLE 2nd 9/32 DIAMETER
THROUGH FLANGE
1/4” Nut & Lock
Washer, INSIDE
Inside Head Door
Flange
