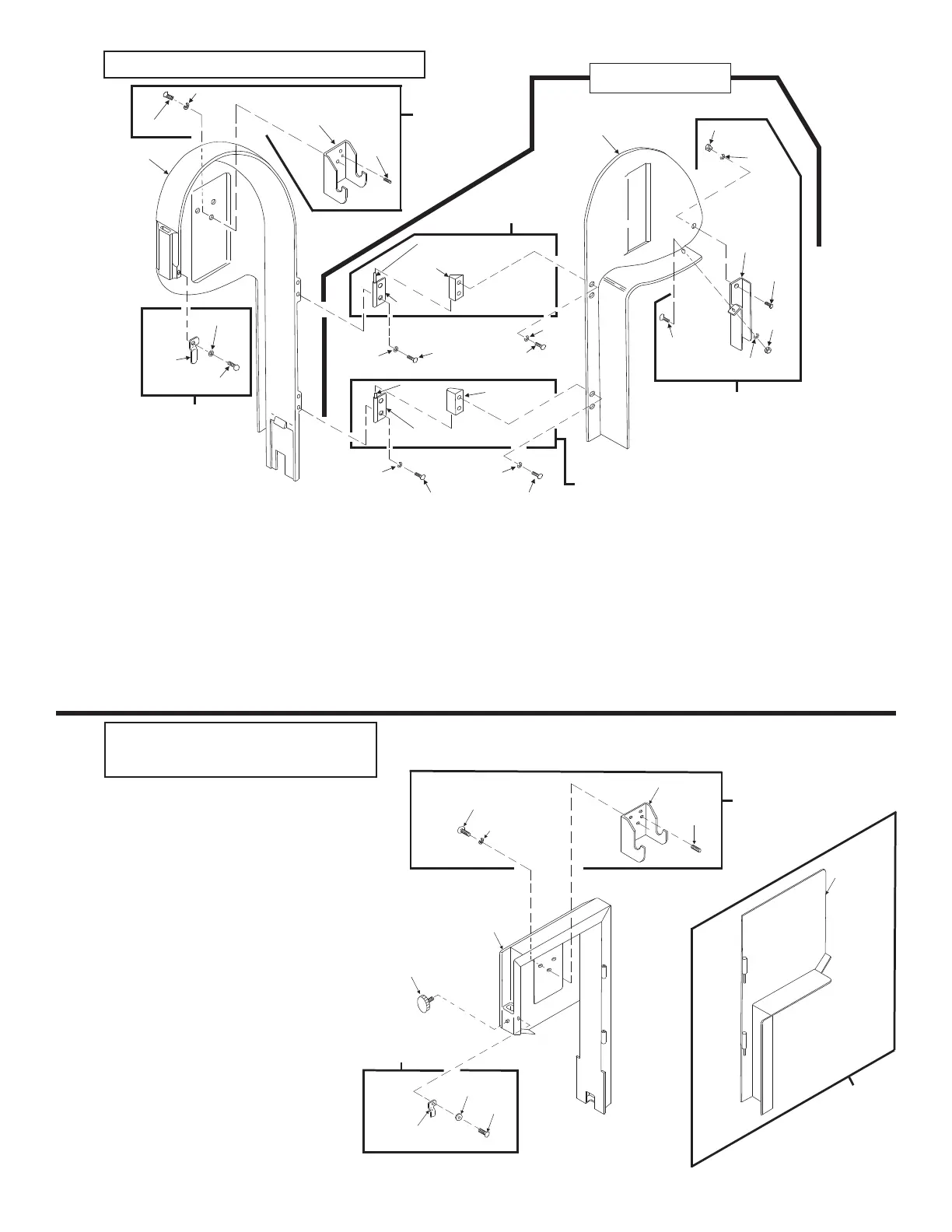

BIRO 3334SS - Page 24

21
HHS050S (3)
LW15S (3)
71-1
SSS15S
A71-1
UPPER WHEEL
HINGE BRACKET
ASSEMBLY
194KS-1
S16005C
A16112
HEAD DOOR
LATCH ASSEMBLY
112-212
16112
HHS060S
S16006
AS16006
HEAD DOOR
ASSEMBLY
Item No. Description
AS16005
Head & door assembly, SS
HHS050S
Hex head screw,
5
/16 -18 x ⅝, SS
HHS060S
Hex head screw,
5
/16 -18 x 1, SS
AS16006
Head door assembly, SS
A71-1
Upper wheel hinge bracket assembly
A16112
Head door latch assembly
SSS15
Set screw,
5
/16 -18 x
5
/16
193
Guide bar spring, Not Shown
S16005C
Head, SS
S16006
Head door, SS
LW15S
Lock washer,
5
/16
,
SS
194
Locking knob pad, Not Shown
194KS-1
Saw guide bar lock knob, SS head
71-1
Upper wheel hinge bracket
AS16005
Head & Door Assembly, SS
A16005 Head & Door Assembly
HHS050S (3)
LW15S (3)
71-1
SSS15S
A71-1
UPPER WHEEL
HINGE BRACKET
ASSEMBLY
16005
112-212
HHS060S
16112
A16112
HEAD DOOR
LATCH ASSEMBLY
HHS035S HHS035S
(2) (2)
LW10S
(2)
LW10S
(2)
HHS035S
(2)
LW10S
(2)
HHS035S
(2)
LW10S
(2)
S16014U
S16014L-2
14GP
AS16014U
HEAD DOOR HINGE
ASSEMBLY-UPPER
AS16014L
HEAD DOOR HINGE
ASSEMBLY-LOWER
S16014U
S16014L-1
14GP-1
A661-1
SAW GUARD ON
HEAD DOOR
ASSEMBLY
LW10S
HN15S
HHS025S
661-1-DECA
HHS025S
LW10S
HN15S
16006
A16006
HEAD DOOR ASSEMBLY
SSS15S
Set screw,
5
/16 -18 x
5
/16 cup point, SS
14GP
Head door hinge pin, 1½”
14GP-1
Head door hinge pin, 1¼”
112-212
Waved washer
Item No. Description
A16006
Head door assembly
HHS050S
Hex head screw,
5
/
16
-18 x ⅝, SS
HHS060S
Hex head screw,
5
/
16
-18 x 1, SS
A16005
Head & door assembly
LW15S
Lock washer,
5
/16
,
SS
A661-1
Saw guard on head door assembly
A16112
Head door latch assembly
AS16014L
Head door hinge assembly - lower, SS
A71-1
Upper wheel hinge bracket assembly
AS16014U
Head door hinge assembly - upper, SS
HHS025S
Hex head screw, ¼-20 x ½, SS
HHS035S
Hex head screw, ¼-20 x ⅝, SS
HN15S
Hex nut, ¼-20, SS
193
Guide bar spring - Not Shown
Item No. Description
16006
Head door, aluminum
16005
Head, aluminum
661-1-DECA
Saw guard to head door
16112
Head door latch
71-1
Upper wheel hinge bracket
LW10S
Lock washer, ¼,
,
SS
