BIRO 3334SS - Page 29

26
Description
A16155
Meat carriage assembly complete
A175S
Thumb guard assembly
Flat washer, ¼ SS
AN15S
Acorn nut, ¼-20 SS
AN20S
Acorn nut, ⅜-16 SS
HN30S
Hex nut, ⅜-16 light jam, SS
LW20S
Lock washer, ⅜ regular, SS
S155-11
Meat carriage stop thumb screw
Meat carriage top only (NSS)
S155-R
Raw meat carriage top only (DNS)
FW06S
S155
Item No. Description
16155
Meat carriage top & angle only
16155-2A
Meat carriage guide
Meat carriage guide spacer, 1/64 thick
16155-2C
Meat carriage guide spacer, 1/32 thick
16155-13
Carriage stop angle SS, welded
16155AEZ-1
Meat carriage angle plate (DNS)
16159
Meat carriage bearing SS
175S
Thumb guard, nylon
Thumb guard nut, SS
175-2-S
Thumb screw, ¼-20 x ½, SS
16155-2B
175-1-S
Item No.
Description
A16200
Carriage stop assembly, movable
A16220-1
Carriage stop assembly, xed
Channel assembly, 37.5”
FW08S
Flat washer, ⅜ SS
FW15S
Flat washer, ½ SS
HHS055S
Hex head screw,
5
/16-18 x ¾ SS
HHS075S
Hex head screw, ⅜-16 x 1¼ SS
HN25S
Hex nut, ⅜-16 SS
Lock washer
5
/16 SS
LW20S
Lock washer ⅜ SS
AS16120
LW15S
S16120
Channel, 37” SS
Carriage bolt, ⅜-16 x 1¼ SS
16200
Carriage stop, movable
16220-1
Carriage srop, xed
310
Waved washer
311
Rubber bumper, xed stop
311-1
Rubber bumper, movable stop
Drive screw #10 x ½ SS
S360CB-1
376
Item No.
S200B1
Stop stud SS, guide bar & carriage stop

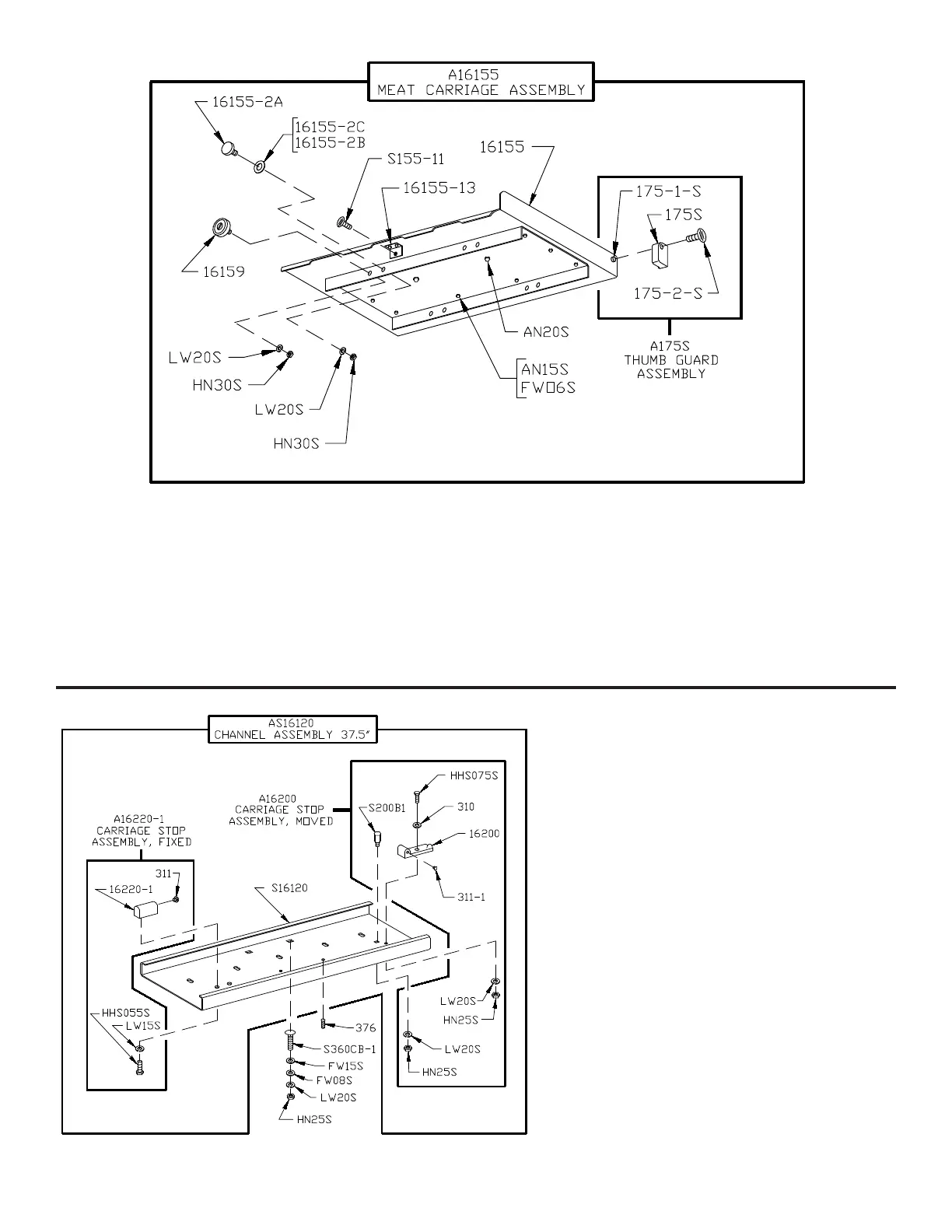

STANDARD 3334 MEAT CARRIAGE & CHANNEL
