Bison 4DW91-29D - Outline Drawing of 4 Dw92-35 D and 4 Dw92-42 D

11

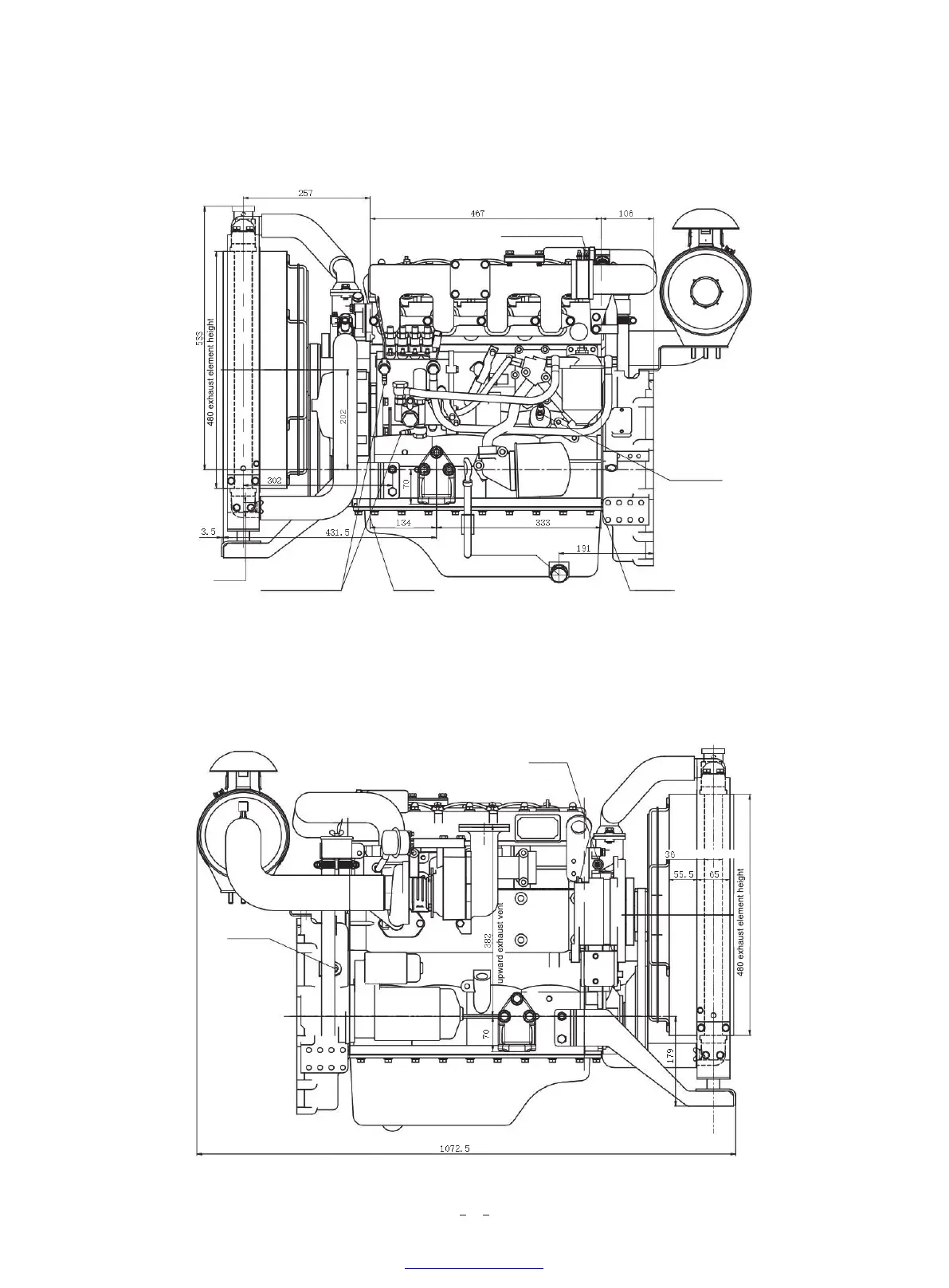

2.2 Outline drawings of 4DW92-35D and 4DW92-42D
water temperature sensor
NPT3/8
speed sensor
element thickness
rear end surface
of engine block
front end surface
of engine block
binding post of air heater M5
external diameter of
fuel inlet and return vent Φ8
water drainage valve
M10×1
oil pressure sensor
NPT1/8
NPT1/4
oil drainage plug screw
M20×1.5
