19

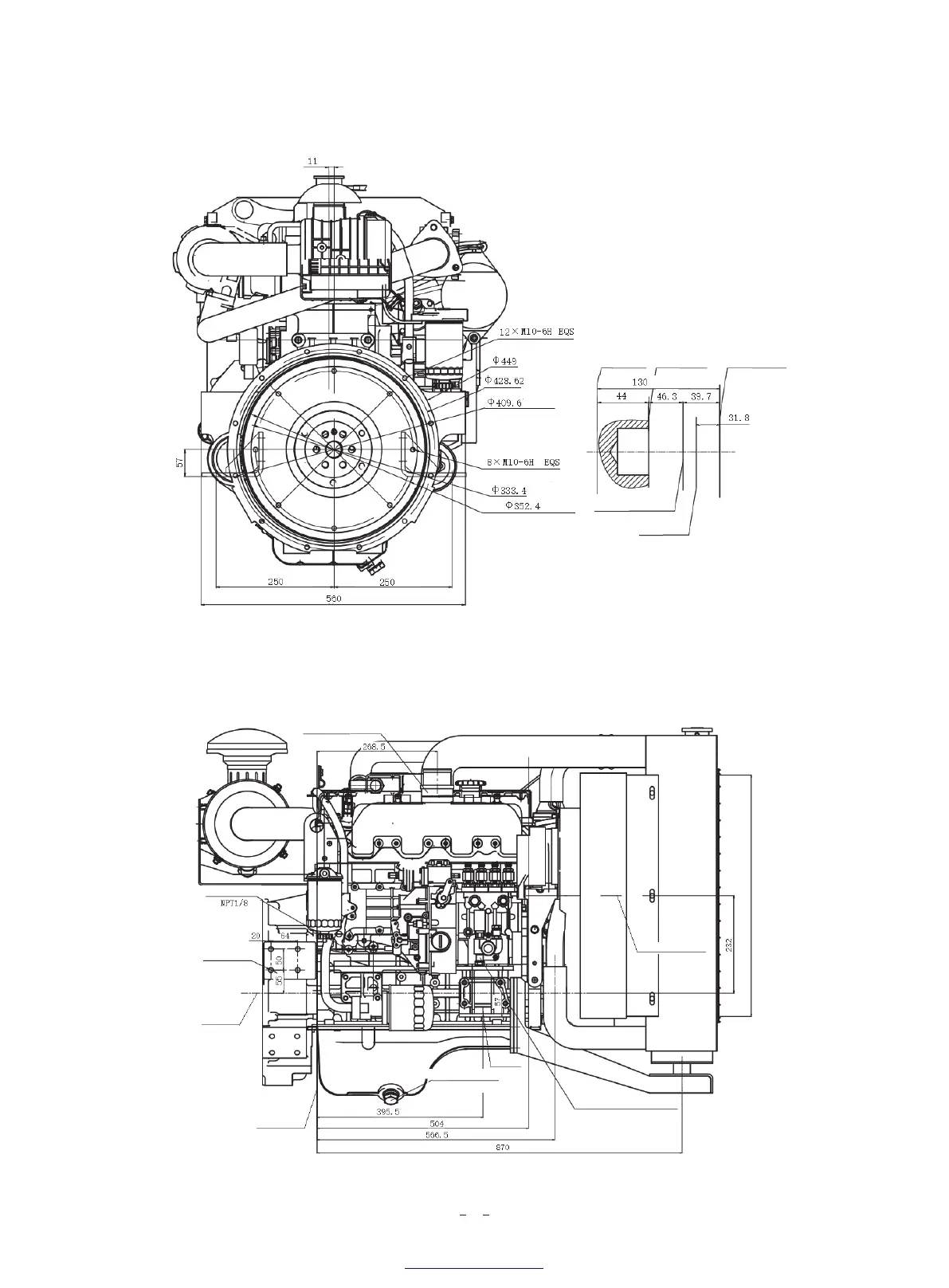

2.6 Outline drawing of 4DX23-65D
binding post of air heater M5
oil pressure sensor
4×M12 depth 21
center of
crankshaft
rear end surface
of engine block
oil drainage plug screw M20×1.5
oil drainage pipe NPT1/4
front support
external diameter of
fuel return connector Φ10
water tank
center of fan
water tank exhaust surface width × height＞575×600
depth 20 hole depth 24
depth 20 hole depth 24
seam allowance
of flywheel shell
seam allowancefor joint
surface of flywheel
and connecting disk
joint surface of flywheel
and connecting disk
rear end surface
of flywheel
rear end surface
of engine block
rear end surface
of flywheel shell
rear end surface
of crankshaft
(thickness of flywheel shell)
connection dimension for rear end
depth 10
depth 7.9
