Bison 4DW91-29D - Page 29

20

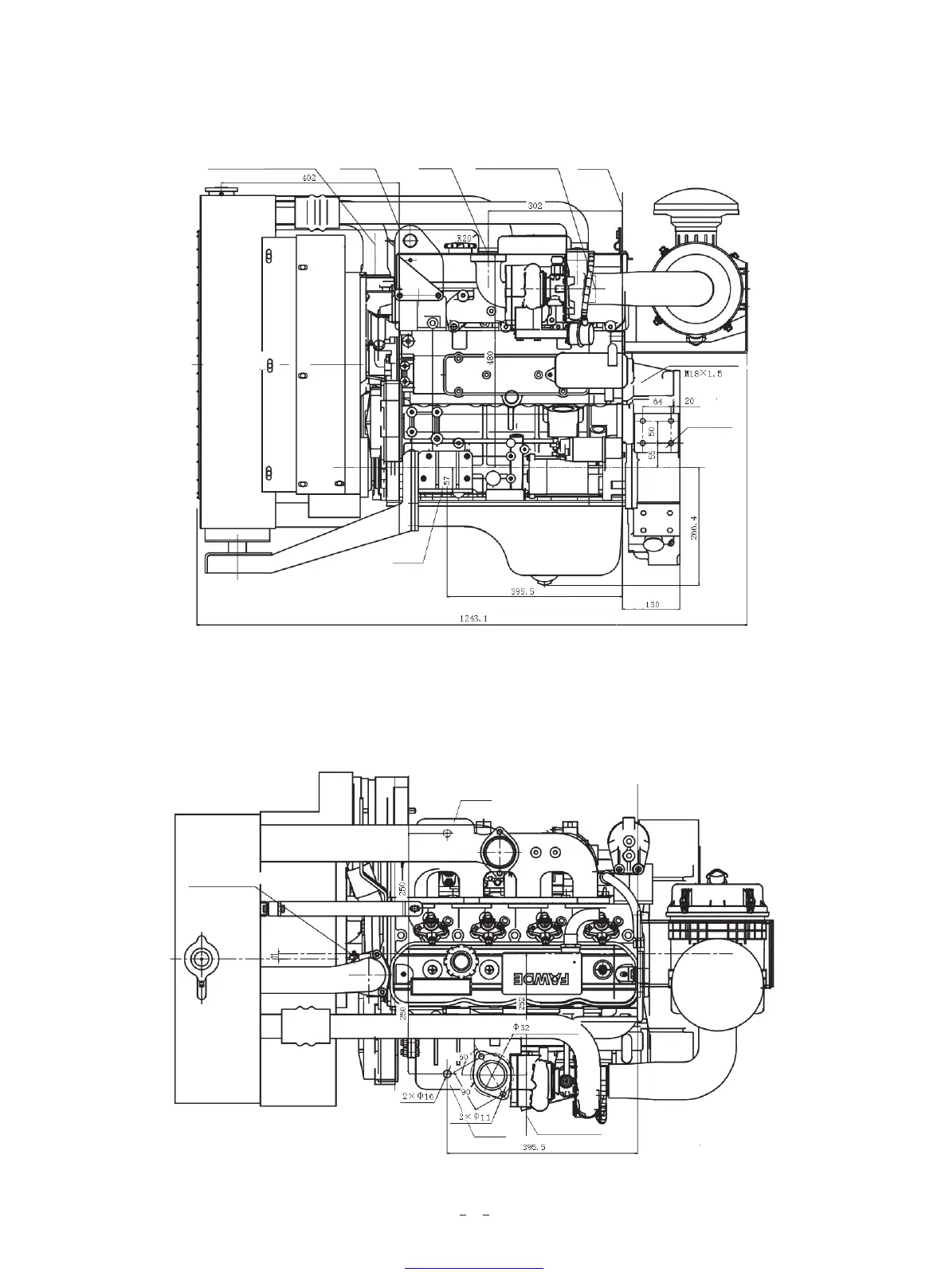

engine water outlet
(outlet of thermostat cover)
front end surface
of engine block
air inlet of
supercharged compressor
rear end surface
of engine block
exhaust vent
water tank
center of fan
front support
（flywheel shell thickness）
center of crankshaft
installation of speed sensor
4×M12 depth 21
front support
installation position of
water temperature sensor
NPT3/8
inner diameter of exhaust vent
position of exhaust vent
front support
