13

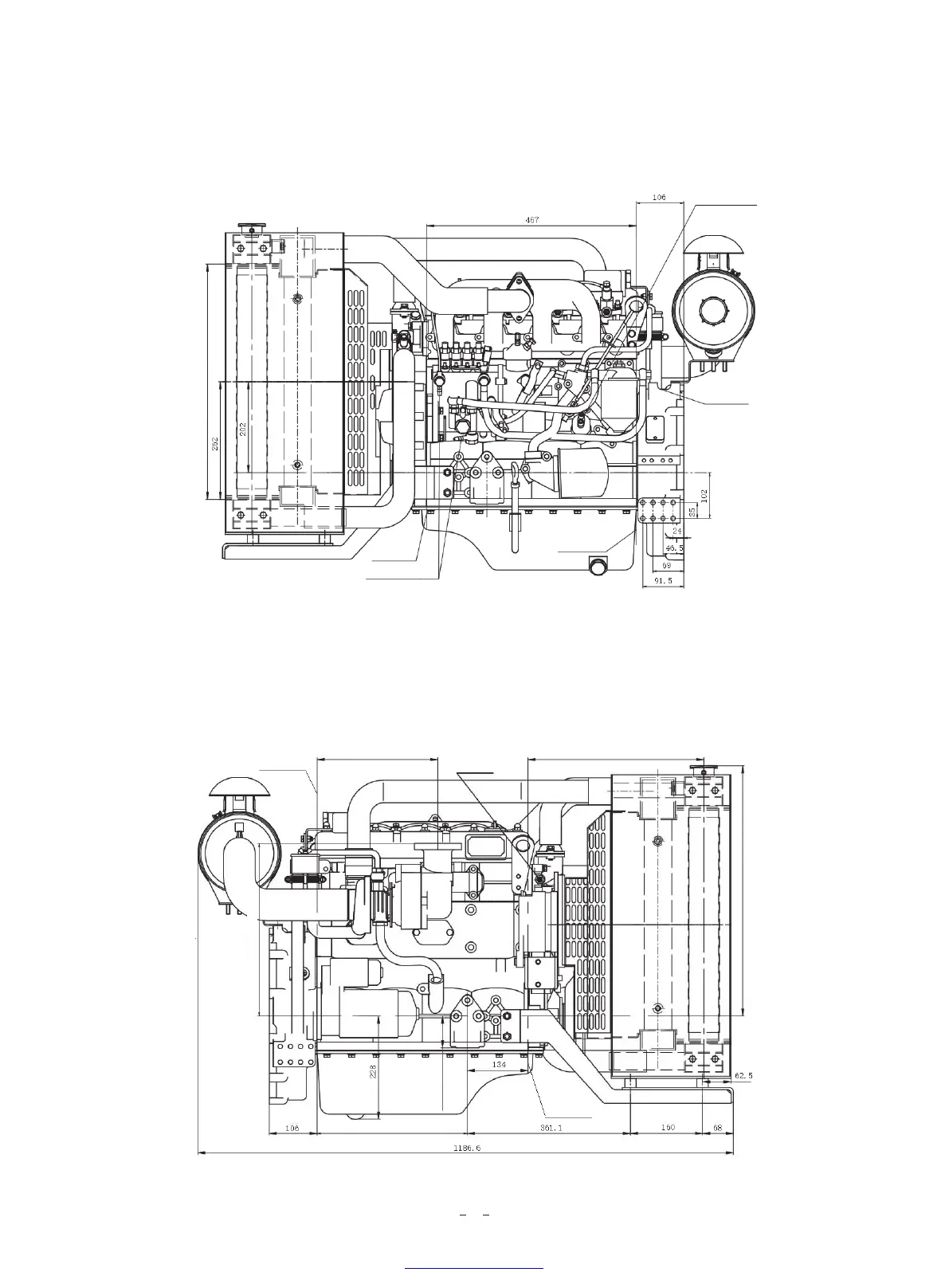

2.3 Outline drawings of 4DW93-42D and 4DW93-50D
speed sensor
front end surface
of engine block
rear end surface
of engine block
524 exhaust element height
external diameter of
fuel inlet and return vent Φ8
oil pressure sensor
front end surface
of engine block
water temperature
sensor
267.5 location of exhaust vent
382.2 location of exhaust vent
389.6 location of water filling
533.9 location of water filling
rear end surface
of engine block
333 location of front support
70 location of
front support
