Bison 4DW91-29D - Outline Drawing of 4 Dx21-45 D and 4 Dx21-53 D

15

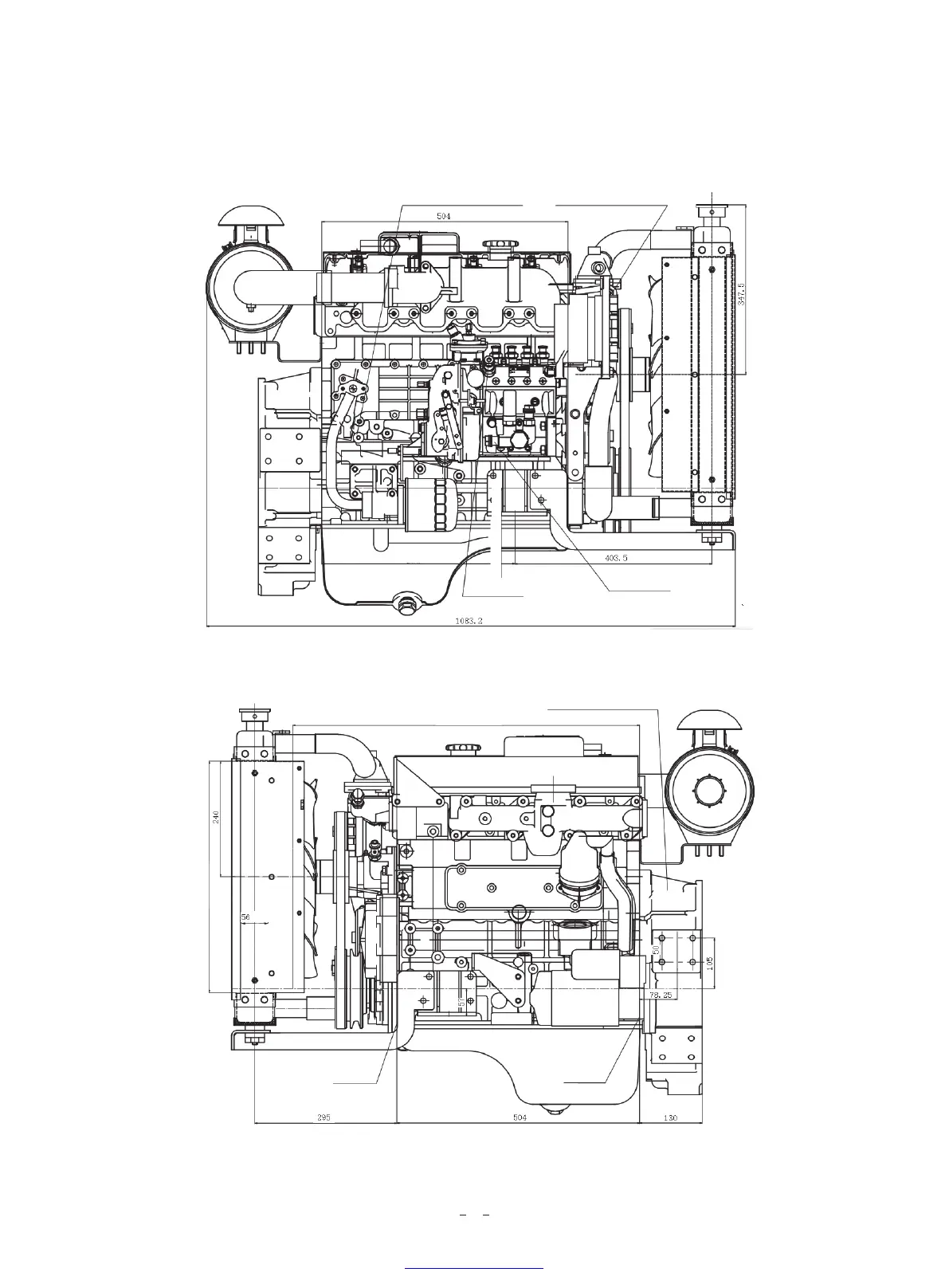

2.4 Outline drawings of 4DX21-45D and 4DX21-53D
installation position of
oil pressure sensor NPT1/8
installation position of
water temperature sensor NPT3/8
location of front support 395.5
location of front support 57
external diameter of
fuel return pipe Φ10
external diameter of
fuel inlet pipe Φ10
installation position of speed sensor M18×1.5
location and dimension of fan 720
exhaust height 480
front end surface
of engine block
rear end surface
of engine block
(element
thickness)
