Bison 4DW91-29D - Page 27

18

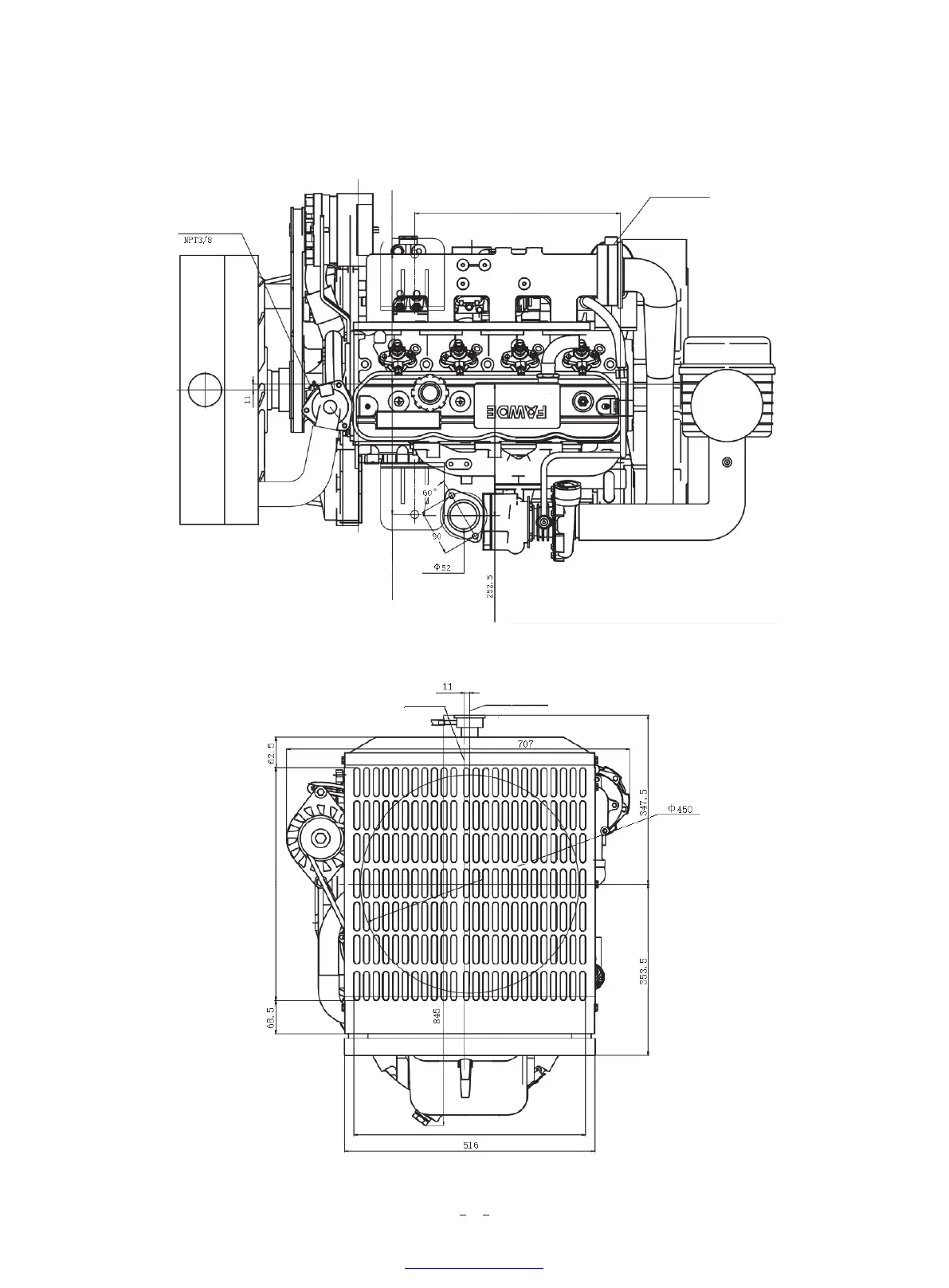

installation position of
water temperature sensor
250 from mounting hole
of front support to
center of crankshaft
250 from mounting hole
of front support to
center of crankshaft
395.5 distance between front and rear support
air heater
M6 screw as the binding post
inner diameter
of exhaust vent
from exhaust vent
to center of crankshaft
center of crankshaft center of fan and water tank
diameter of fan
480 height of water tank and exhaust
Φ478 width of water tank and exhaust
