Basic specifications of precision machine vises - type 6622 and 6623 are shown
at Fig. 4 and Table 2.

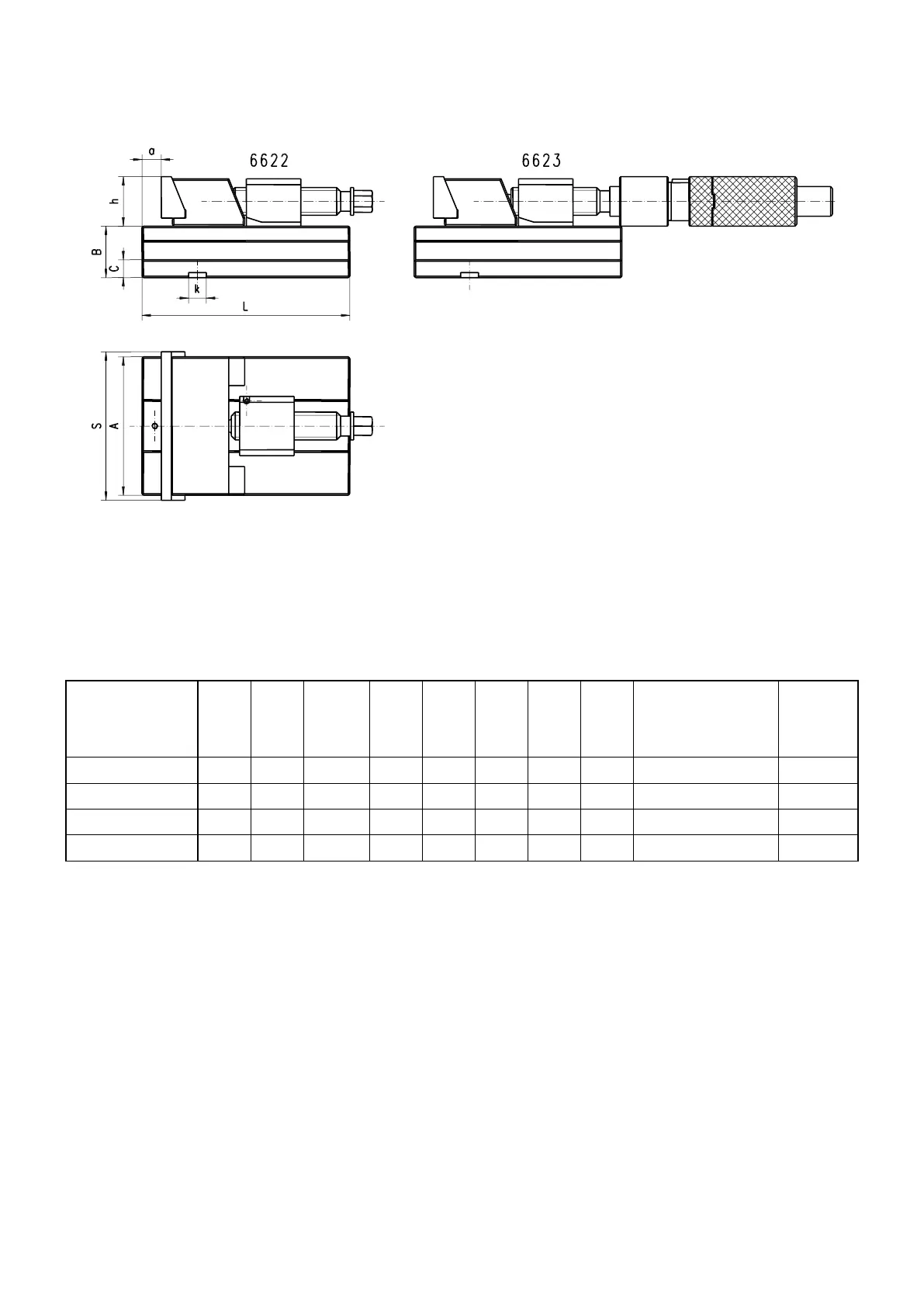

Fig. 4. Basic dimensions of precision machine vises - type 6622 and 6623.
Table 2. Basic specifications of precision machine vises - type 6622 i 6623.
Type
S
A
B
-0,02
C
L
a
h
k
M6
Max.clamping
force
[daN]
Weight
[kg]
6622-100
100
85
35
13
140
48
30
12
2000
5,3
6622-125
125
105
42
15
160
60
40
12
3000
8,7
6622-150
150
140
52
18
210
86
50
18
4000
19,1
6622-200
200
165
61
20
240
78
60
18
4500
33,9
