Basic specifications of precision machine vises - type 6624 are shown at Fig. 5
and Table 3.

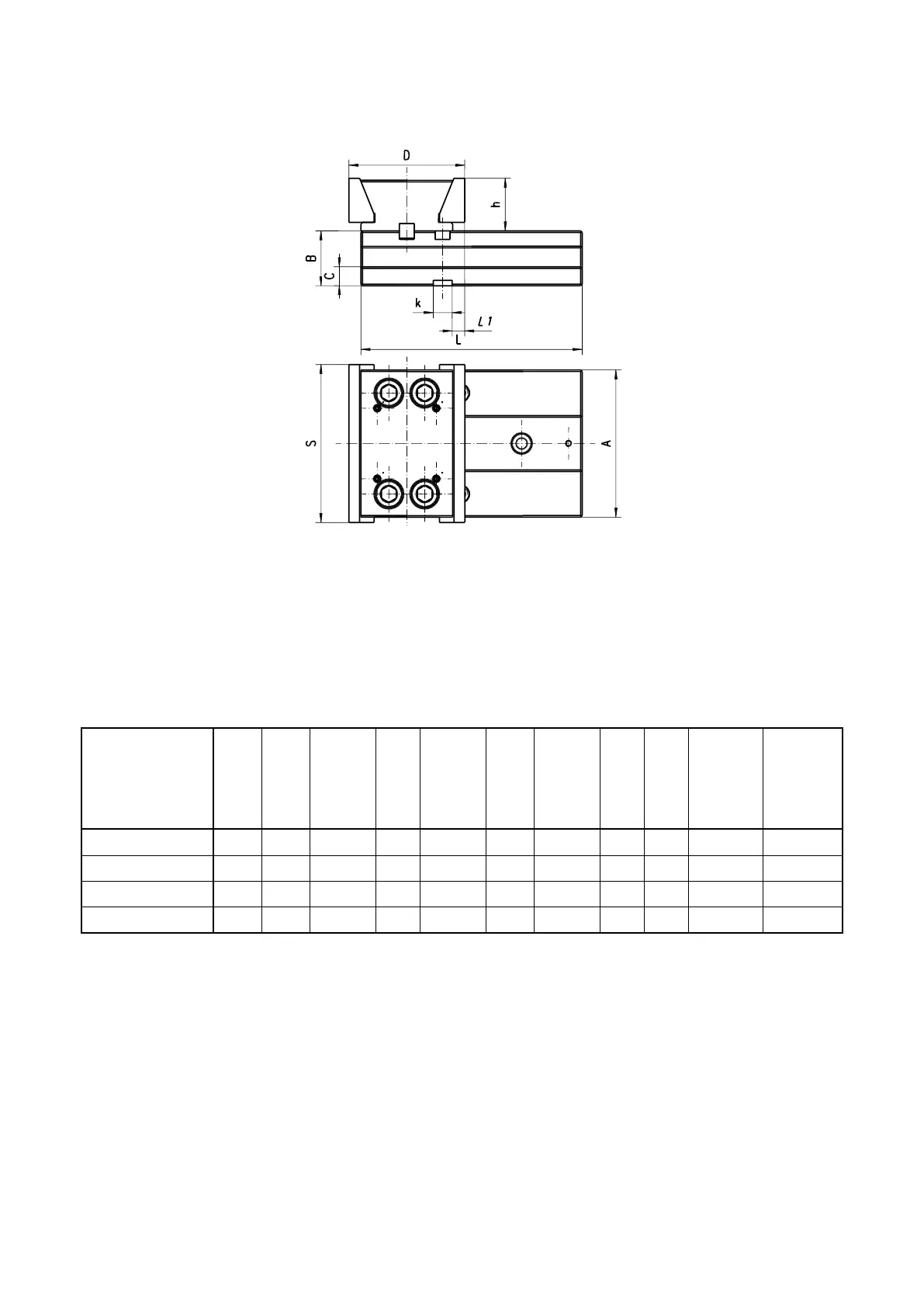

Fig. 5. Basic dimensions of precision machine vises- type 6624.
Table 3. Basic specifications of precision machine vises - type 6624.
Type
S
A
B
-0,02
C
D
±0,04
L
L1
±0,02
h
k
M6
Max.
clamp
force
[daN]
Weight
[kg]
6624-100
100
85
35
13
80
155
10
30
12
2000
4,4
6624-125
125
105
42
15
84
160
10
40
12
3000
6,7
6624-150
150
140
52
18
110
210
12
50
18
4000
14,5
6624-200
200
165
61
20
127
240
15,5
60
18
4500
26,5
