◈ Information
This Installation Guide includes a brief outline of information necessary for product
installation. For more detailed installation information, please refer to the user manual in the
enclosed CD. The contents of the CD include the following.
1. Manual: User Manual, Code Chart, Control Commands
2. Drivers: Windows Drivers, OPOS Drivers
3. Utilities: a Logo download tool and a virtual memory switch control tool
We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality
of all our products. In following, product specifications and/or user manual content may be
changed without prior notice.
◈ Components
SRP-350plusIIC SRP-350plusIIA
Cable cover
Paper Roll
Procuct Installation CDProcuct Installation CD
CD
Installation Guide
USB A-A JACK
AC/DC Adaptor
Power cord
◈ Connecting the cables
1. Turn off the printer and the host ECR (host computer).
2. Plug the power cord into the Adaptor, and then plug the Adaptor into the power connector
of the printer.
3. Check the interface cable (Serial, Parallel, USB, or Ethernet), and connect the interface
connector cable accordingly.
4. Plug the drawer kick-out cable into the drawer kick-out connector on the printer.
※ Do not use an adapter that was not supplied with the printer.
◈ Installing the Paper Roll
1. Open the paper roll cover by pressing the cover-
open button.
2. Insert a new paper roll, making sure to align it
properly.
3. Pull out a small amount of paper, and close the
cover.
※ Note
When closing the cover, press down on the center
of the cover to ensure that the paper is in contact
with the roller.
Printing quality may not be optimum if
recommended paper is not used.
(Refer to the User's Manual.)
◈ Using the Operation Panel
• POWER (LED)
When turning on the power, a green LED will be lit.
• ERROR (LED)
When an error occurs, a red LED will be lit.
(e.g. no paper, cover ajar, etc.)
• PAPER (LED)
Red LED will be lit when the paper roll is running low. The LED blinks
when the printer is in self-test standby mode or macro execution standby
mode.
• FEED (Button)
Press the FEED button once to discharge extra paper. Holding down the
FEED button will discharge paper continuously until the button is
released.
◈ Setting the DIP Switches
Changing Dip Switch settings must be done when the printer is off. Any changes done while
the printer is on will not be processed.
1. Serial Interface
• DIP Switch 1
SW Function ON OFF Default
1-1 Auto Line Feed Enable Disable OFF
1-2 Flow Control XON/XOFF DTR/DSR OFF
1-3 Data Length 7 bits 8 bits OFF
1-4 Parity Check Yes No OFF
1-5 Parity Selection EVEN ODD OFF
1-6
Baud rate Selection (bps) Refer to the following Table 1
OFF
1-7 ON
1-8 OFF
• DIP Switch 2
SW Function ON OFF Default
2-1 Auto cutter control Full cut Partial cut OFF
2-2 Internal bell control Internal bell disable
Internal bell
enable
OFF
2-3 Auto Cutter Auto cutter disable Auto cutter enable OFF
2-4 Reserved - - OFF
2-5
Print Density Refer to the following table 2
OFF
2-6 OFF
2-7 Near-End Sensor Status Disable Enable OFF
2-8 External buzzer control
External buzzer
enable
External buzzer
disable
OFF
2. Parallel / USB Interface
• DIP Switch 1
SW Function ON OFF Default
1-1 Auto Line Feed Enable Disable OFF
1-2 Reserved - - OFF
1-3 Reserved - - OFF
1-4 Reserved - - OFF
1-5 Reserved - - OFF
1-6 Reserved - - OFF
1-7 Reserved - - ON
1-8 Reserved - - OFF
• DIP Switch 2
SW Function ON OFF Default
2-1 Auto cutter control Full cut Partial cut OFF
2-2 Internal bell control Internal bell disable
Internal bell
enable
OFF
2-3 Auto Cutter Auto cutter disable Auto cutter enable OFF
2-4 Reserved - - OFF
2-5
Print Density Refer to the following table 2
OFF
2-6 OFF
2-7 Near-End Sensor Status Disable Enable OFF
2-8 External buzzer control
External buzzer
enable
External buzzer
disable
OFF
• Table 1 – Baud Rate (bps) Selection
Transmission Speed 1-6 1-7 1-8 Default
2400 ON OFF OFF
9600
4800 ON OFF ON
9600 OFF ON OFF
19200 OFF OFF OFF
38400 OFF ON ON
57600 OFF OFF ON
115200 ON ON ON
• Table 2 – Print Density Selection
Print Density 2-5 2-6 Default
1 (Light) ON ON
2
2 OFF OFF
3 ON OFF
4 (Dark) OFF ON
◈ Self-Test
1. Make sure the paper roll has been installed properly.
2. Turn on the power while holding down the FEED button. The self-test begins.
3. The self-test prints the current printer status, providing the control ROM version and the
DIP switch setting.
4. After printing the current printer status, self-test printing will print the following, and
pause. (The PAPER LED light blinks.).
SELF-TEST PRINTING.
PLEASE PRESS THE FEED BUTTON
5. Press the FEED button to continue printing. The printer prints a pattern using the built-in
character set.
6. The self-test automatically ends and cuts the paper after printing the following.
*** COMPLETED ***
7. After the self-test is complete, the printer returns to normal on-line status.
※ Note
The self-test lets you know if your printer is operating properly. It checks the print quality,
ROM version, and DIP switch settings.

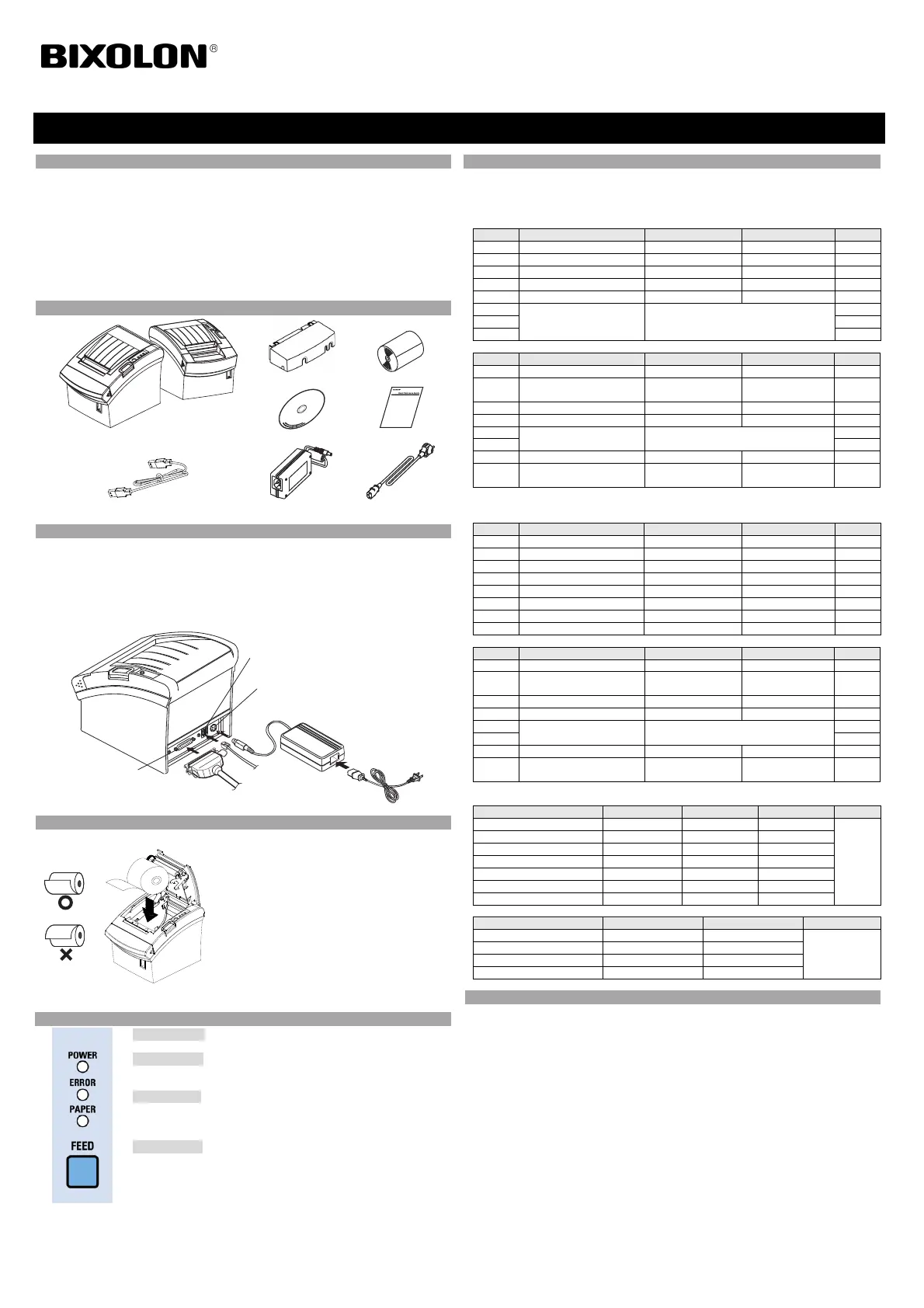

Printer Installation Guide
THERMAL PRINTER SRP-350/352plusIIA&C
