6 June 2019 E14C4t User Guide (16-01265-EN-07)
Imaging Plane
E14C4t contains two curved arrays — one for transverse imaging, and one for sagittal
and endfire imaging. The sagittal array of the E14C4t has a total arc of 210°. In both
simultaneous biplane imaging and endfire imaging, the imaging plane uses a 140°
section of the arc. It is important to note that simultaneous biplane imaging and
endfire imaging use different sections of the sagittal array. Figure 2 illustrates which
section of the array simultaneous biplane and endfire use.

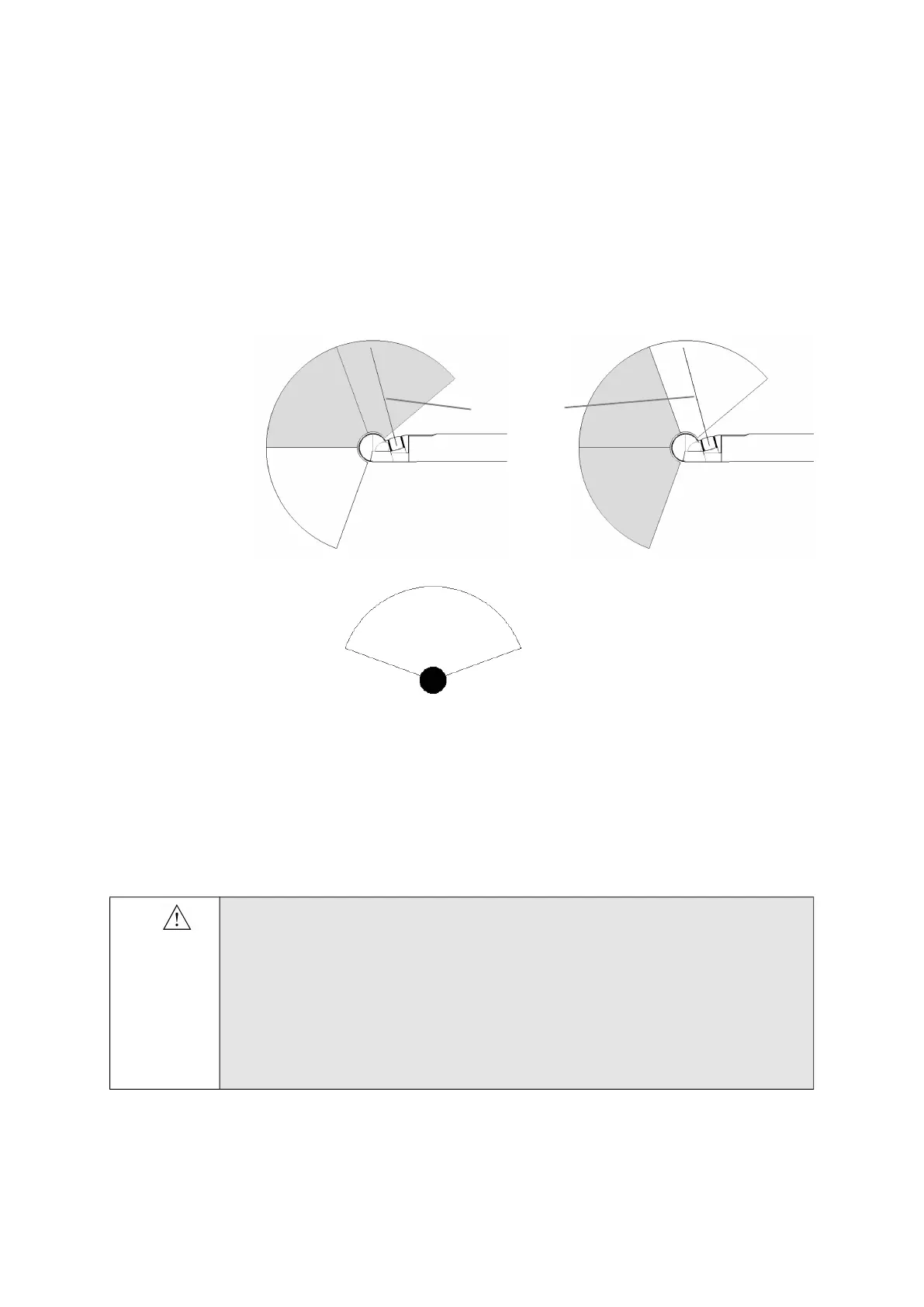

Figure 2. Imaging plane for E14C4t.
General Information
Product specifications, acoustic output data and data about EMC (electromagnetic
compatibility) for this transducer can be found in the Product Data Sheet and the
Technical Data (BZ2100) that accompany this user guide.
Endfire portion of sagittal arraySimultaneous biplane portion of sagittal array
Transverse array
Transverse array
WARNING GS-w2
If at any time the system malfunctions, or the image is severely distorted or degraded, or you
suspect in any way that the system is not functioning correctly:
•
Remove all transducers from contact with the patient.
•
Turn off the system. Unplug the system from the wall and make sure it cannot be used
until it has been checked.
•
Do not try to repair the system yourself.
•
Contact your BK service representative or hospital technician.
