BK Precision 1902B - Using Two External Variable DC Voltage Sources

21
(d) Plug the remote connector plug into the analog remote control terminal of the
power supply.
(e) Secure the remote connector plug to the terminal socket by locking the
connector ring (Figure 6).

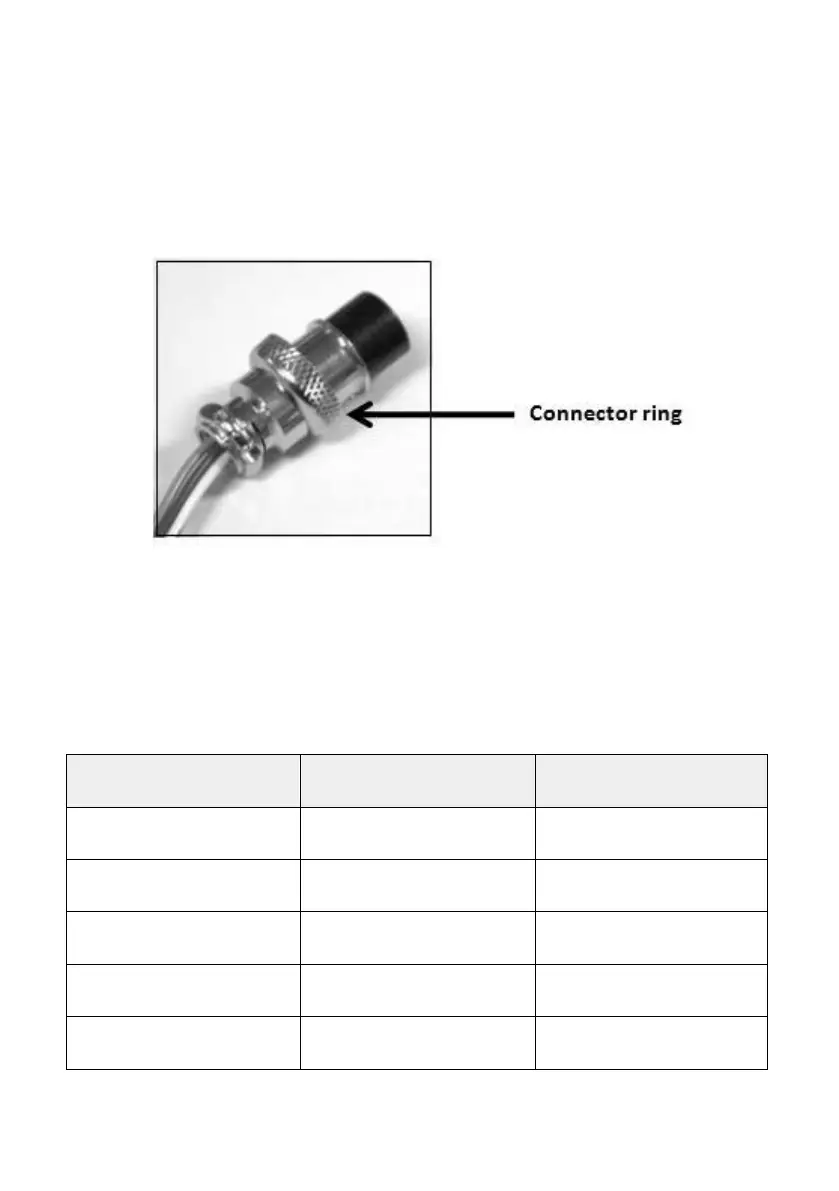

Figure 6 - Connector Ring
Then you can choose one of the following two methods to use the analog remote
control feature.
5.1.2 Using Two External Variable DC Voltage Sources
PIN
FUNCTIONS
REMARKS
1
Internal DC +5 V
Less than 50 mA
2
Voltage Adjust
0 – 5 V
3
Current Adjust
0 – 5 V
4
Ground
5
Output OFF
Short to Ground
