Ventless Hood System Installation
9
Securing
Wall Mount

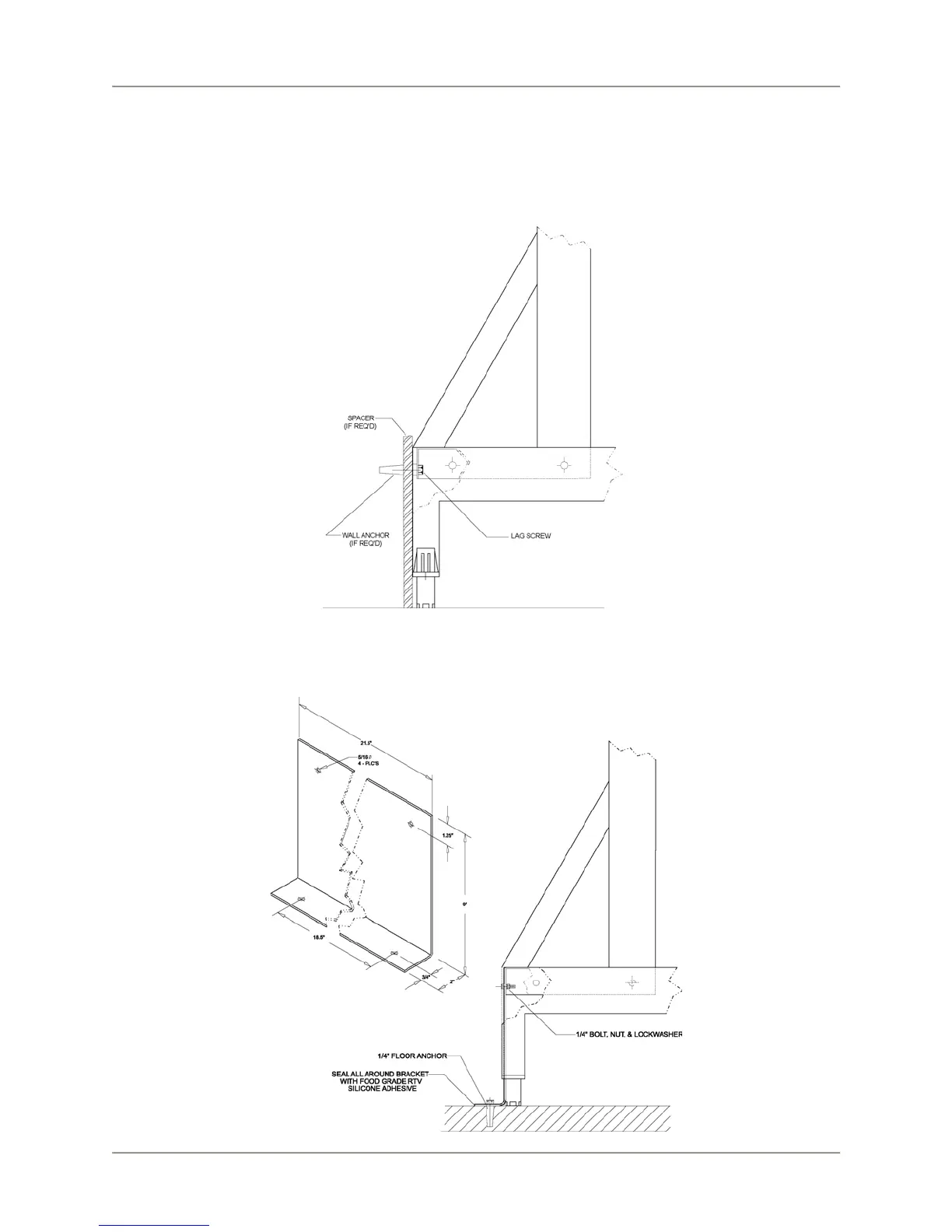

After the hood has been located and leveled, secure to building by utilizing the .437 diameter holes
provided in the rear of the fire extinguisher cylinder shelf (Refer to figure below). Using 1/4” lag screw(s),
spacer(s) (if required), and anchor(s) (if required) secure the hood to a wall to prevent movement. The
outside holes are spaced at 16 inches in the event wall studs can position the unit.
Brace Mount
If the unit is being mounted far away from a wall, a brace (angle) secured to the floor may be bolted to the
shelf. This brace must be sufficient to prevent movement of the hood. Seal brace connection to floor
using a food grade RTV. This will prevent grease or food particles from getting beneath the brace.
